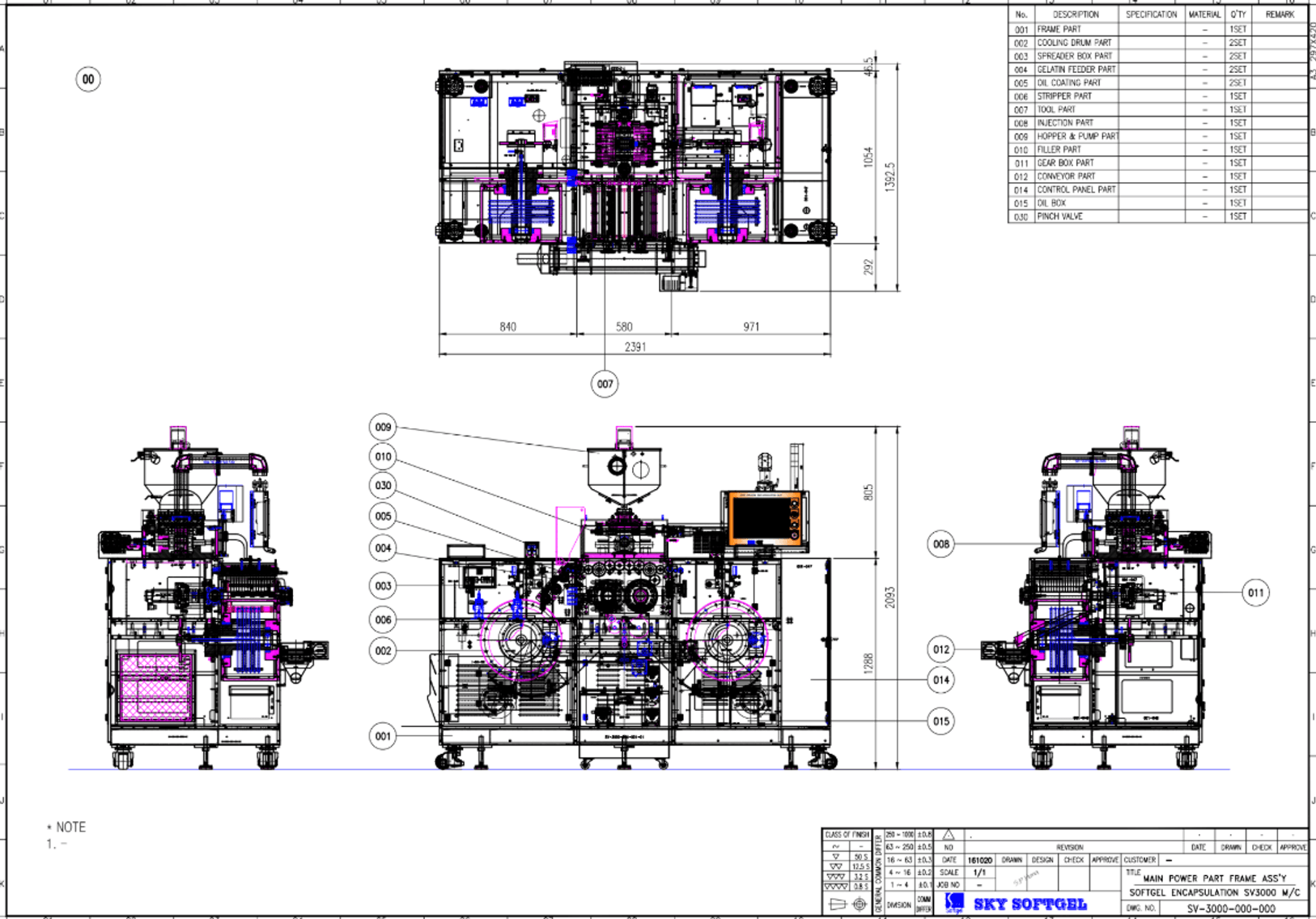

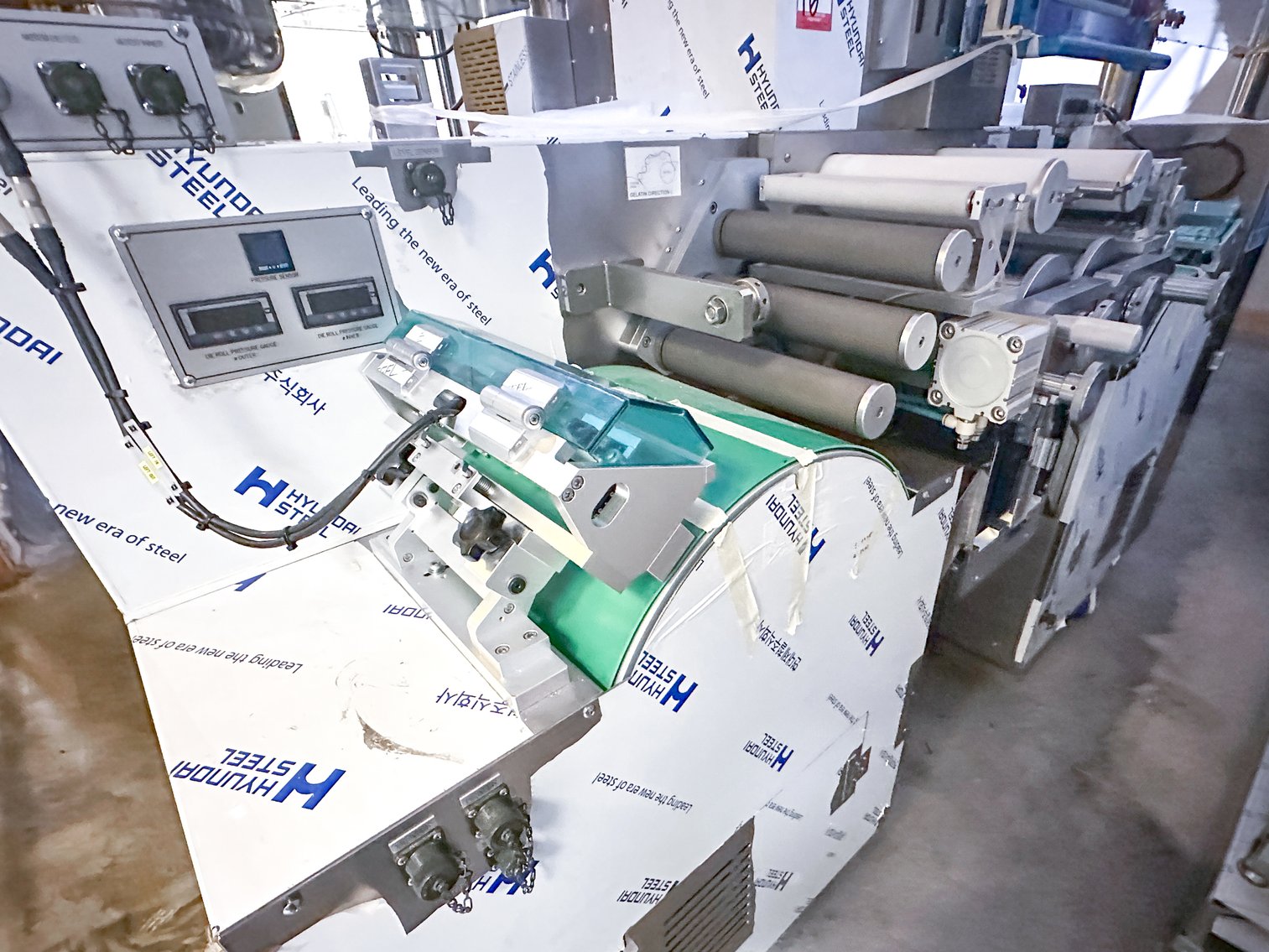

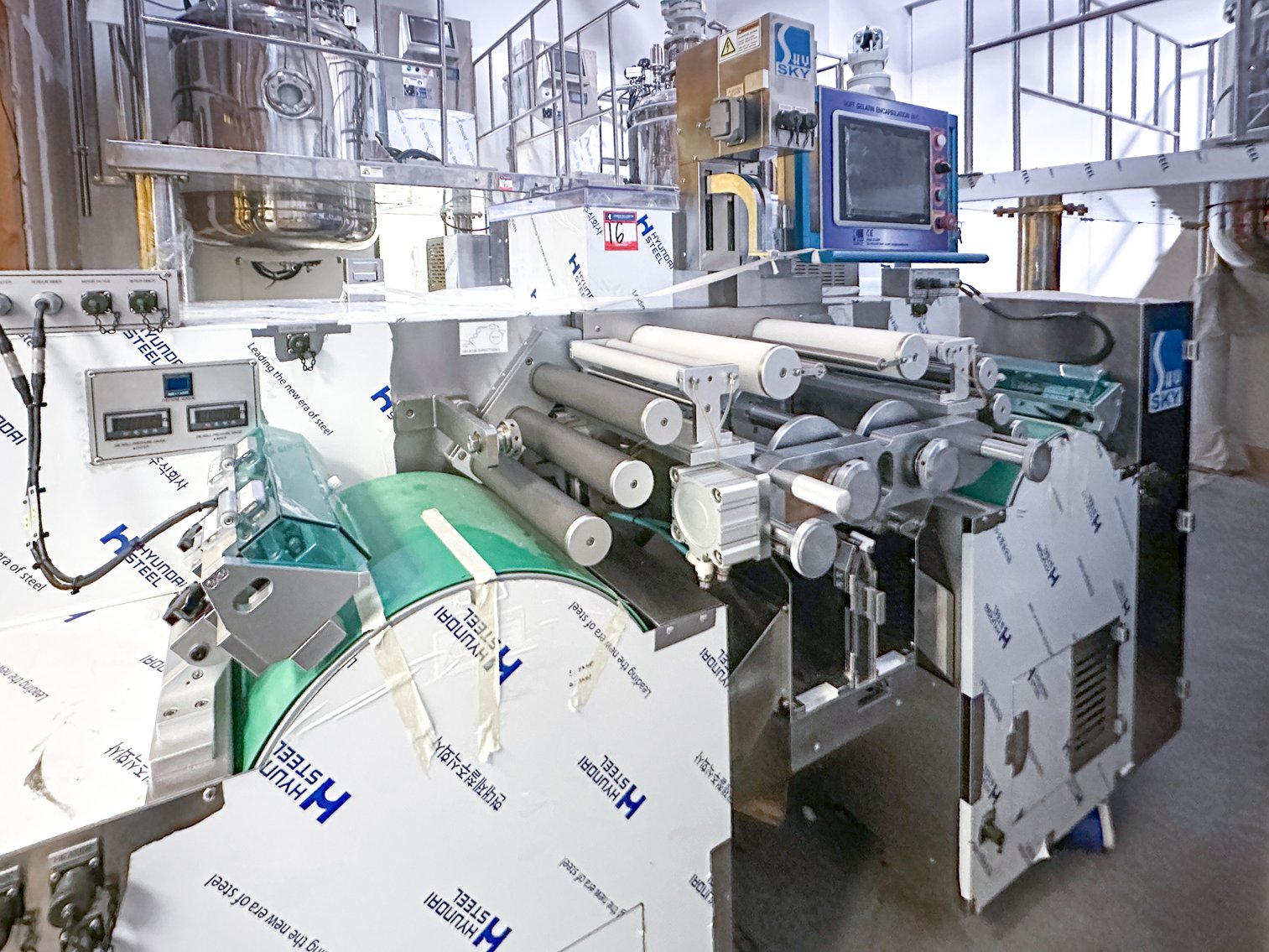

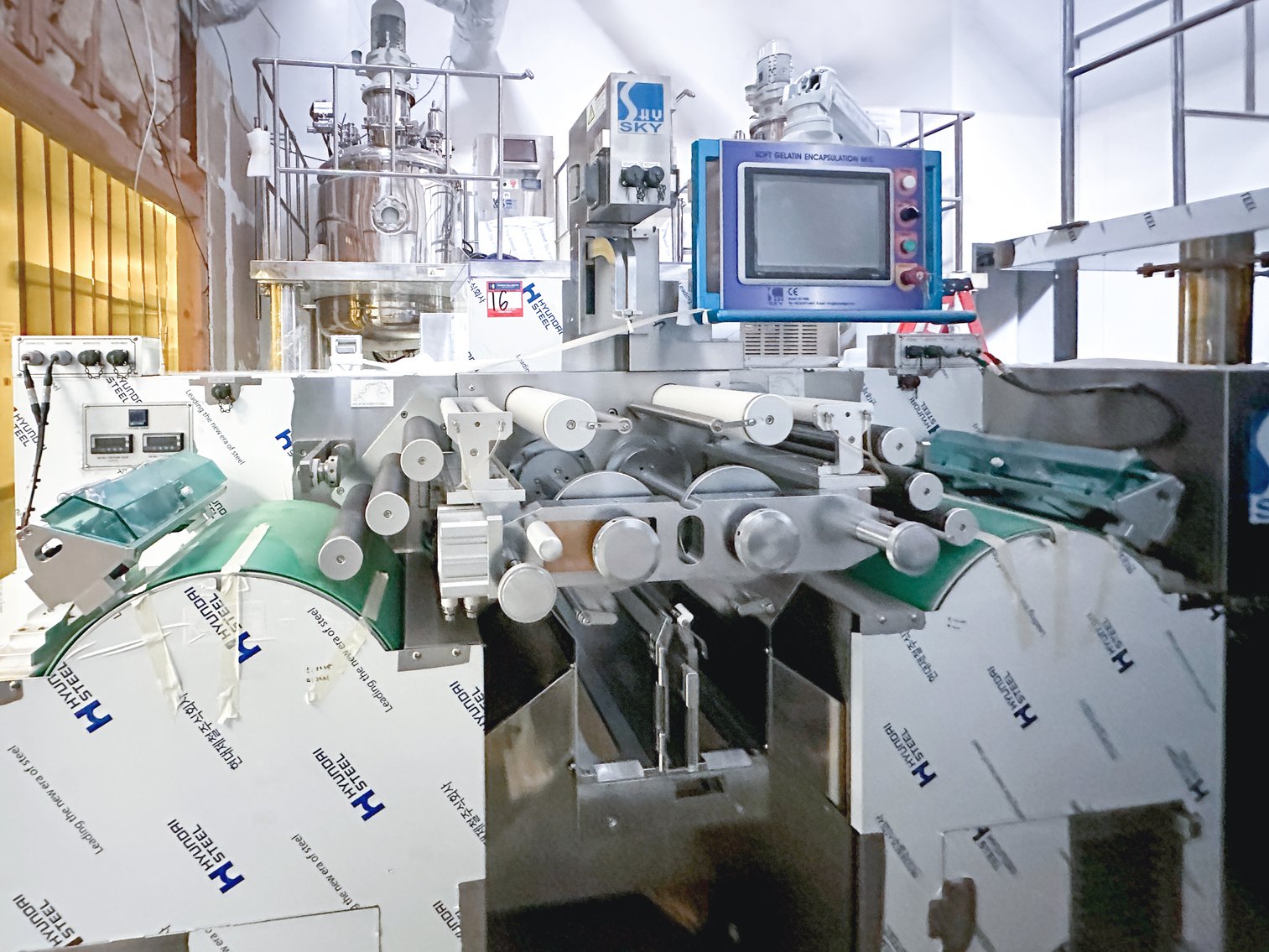

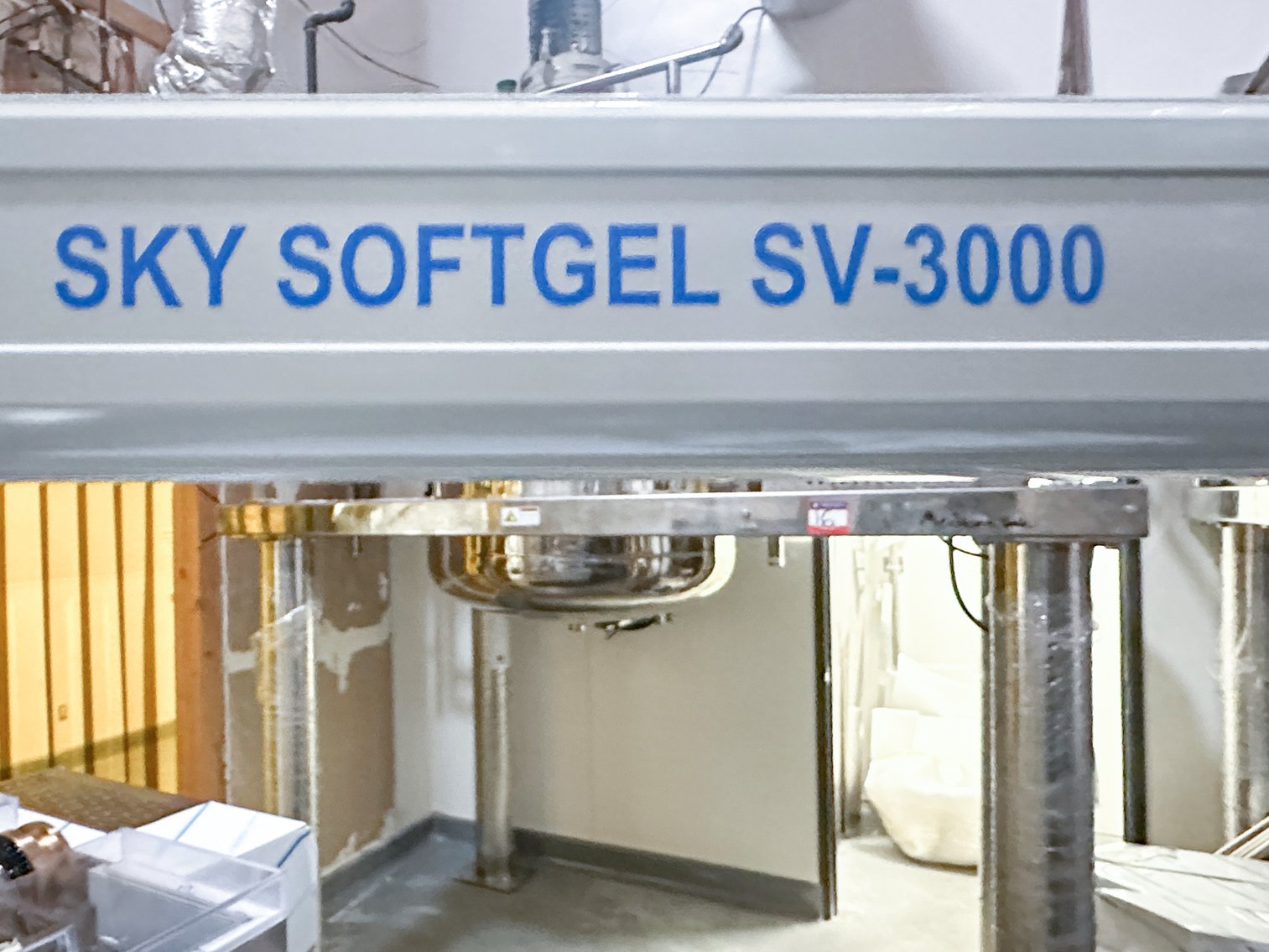

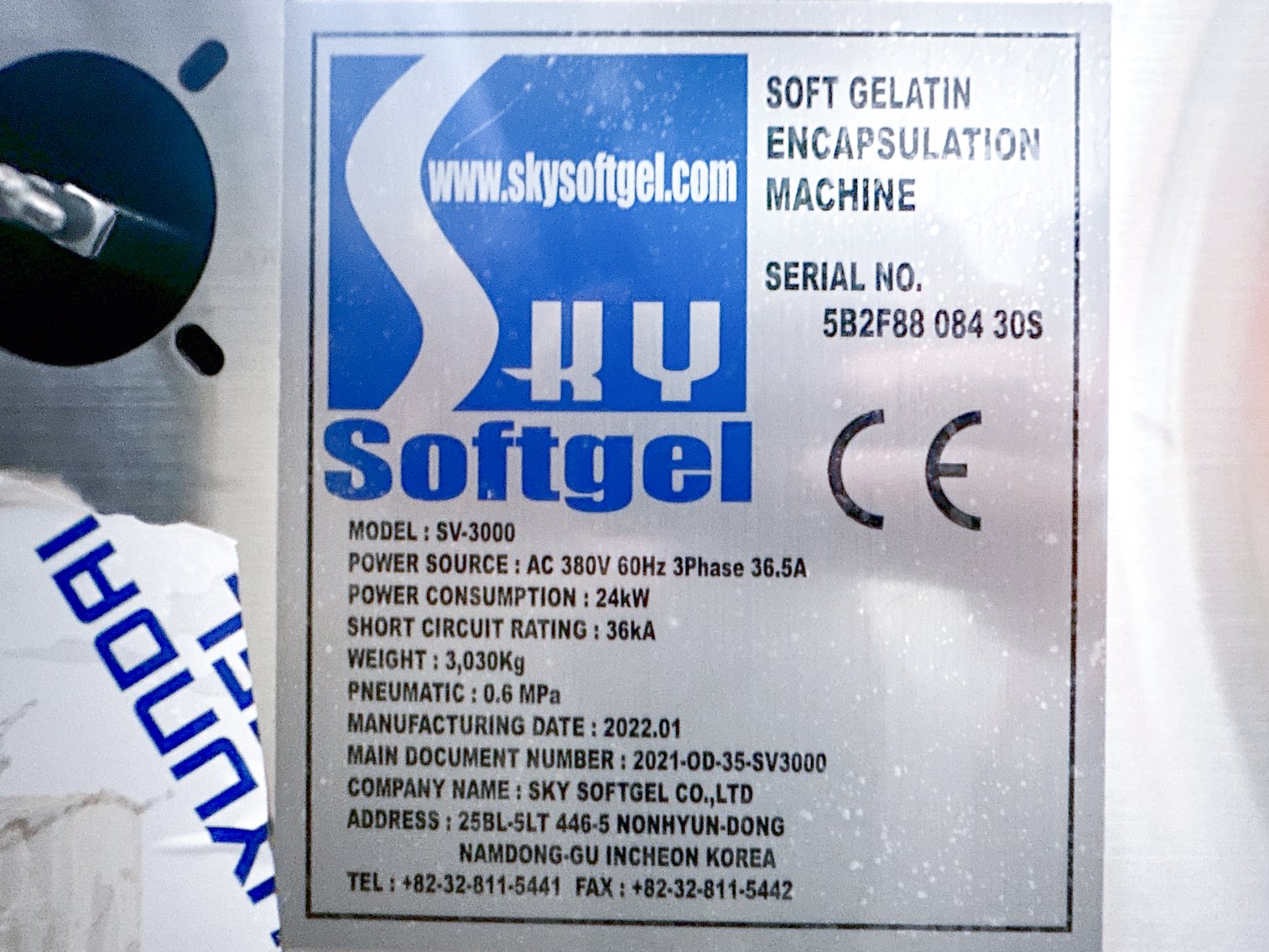

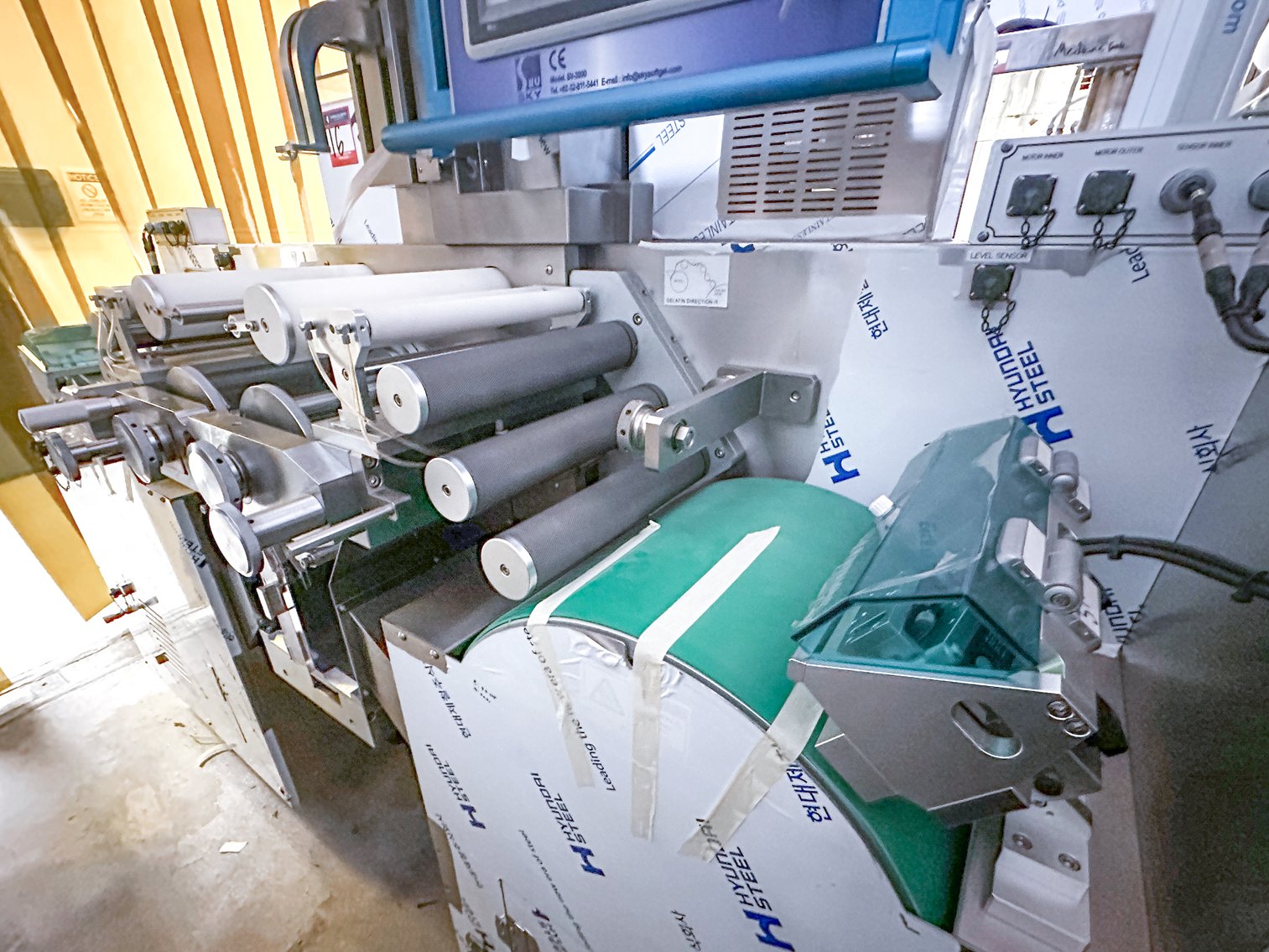

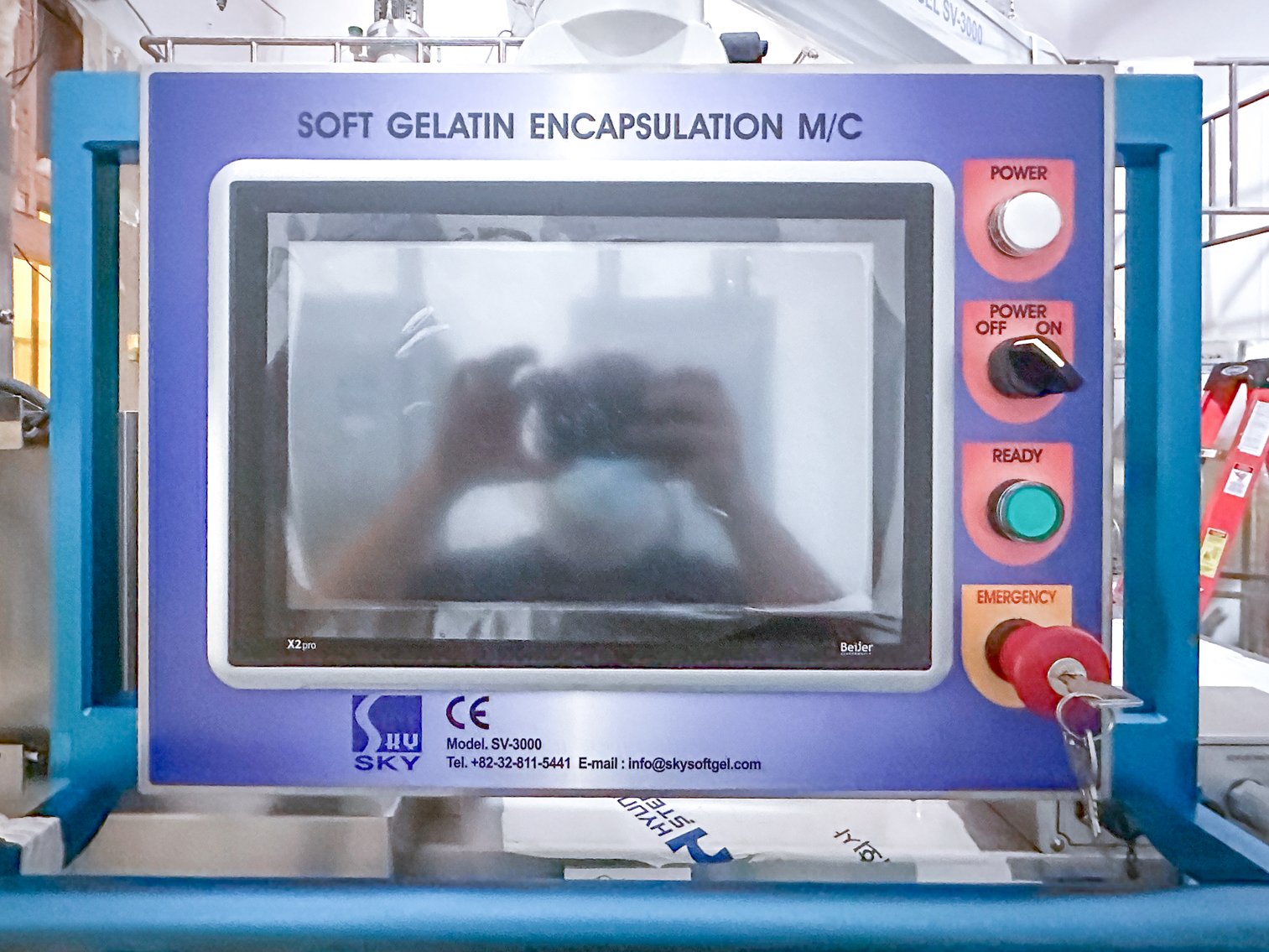

1- NEW / NEVER USED Sky Softgel SV-3000 Soft Gelatin Encapsulation Machine – 2022 – CE

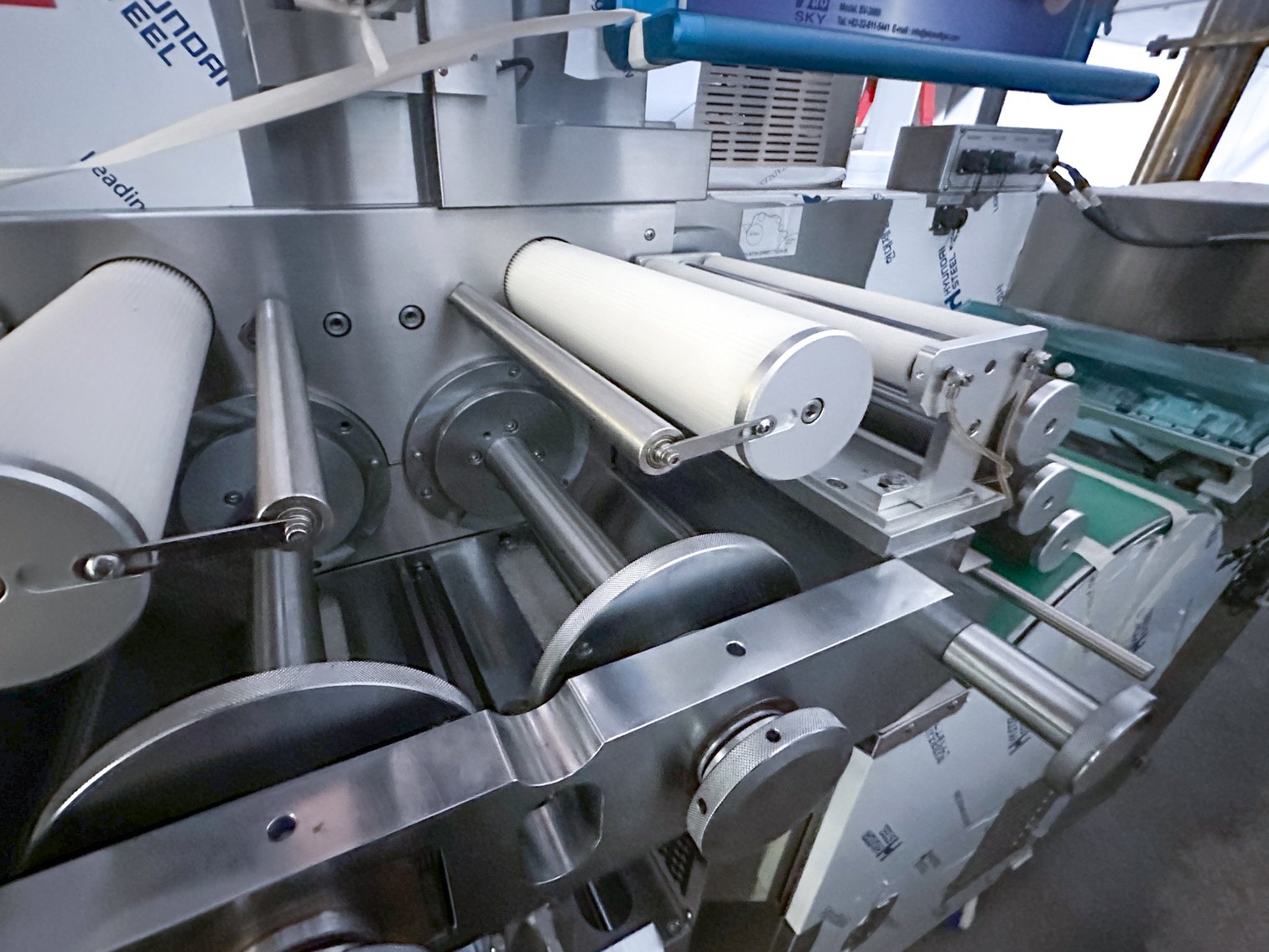

Sky Softgel SV-3000 Soft Gelatin Encapsulation Machine – 2022 – CE
Serial Number: 5B2F0080430S
Sky Softgel Model SV-3000 Soft Gelatin Encapsulation Machine, manufactured January 2022. Designed for pharmaceutical and nutraceutical softgel production.
Typical Production Speed:
• Approximately 60,000 – 120,000 capsules per hour
(Actual output depends on capsule size, fill formulation, and tooling configuration.)
Specifications:
• Power: AC 380V / 60Hz / 3 Phase / 36.5A
• Power Consumption: 24 kW
• Pneumatic Requirement: 0.6 MPa
• Short Circuit Rating: 36 kA
• Weight: 3,030 kg
• CE Marked

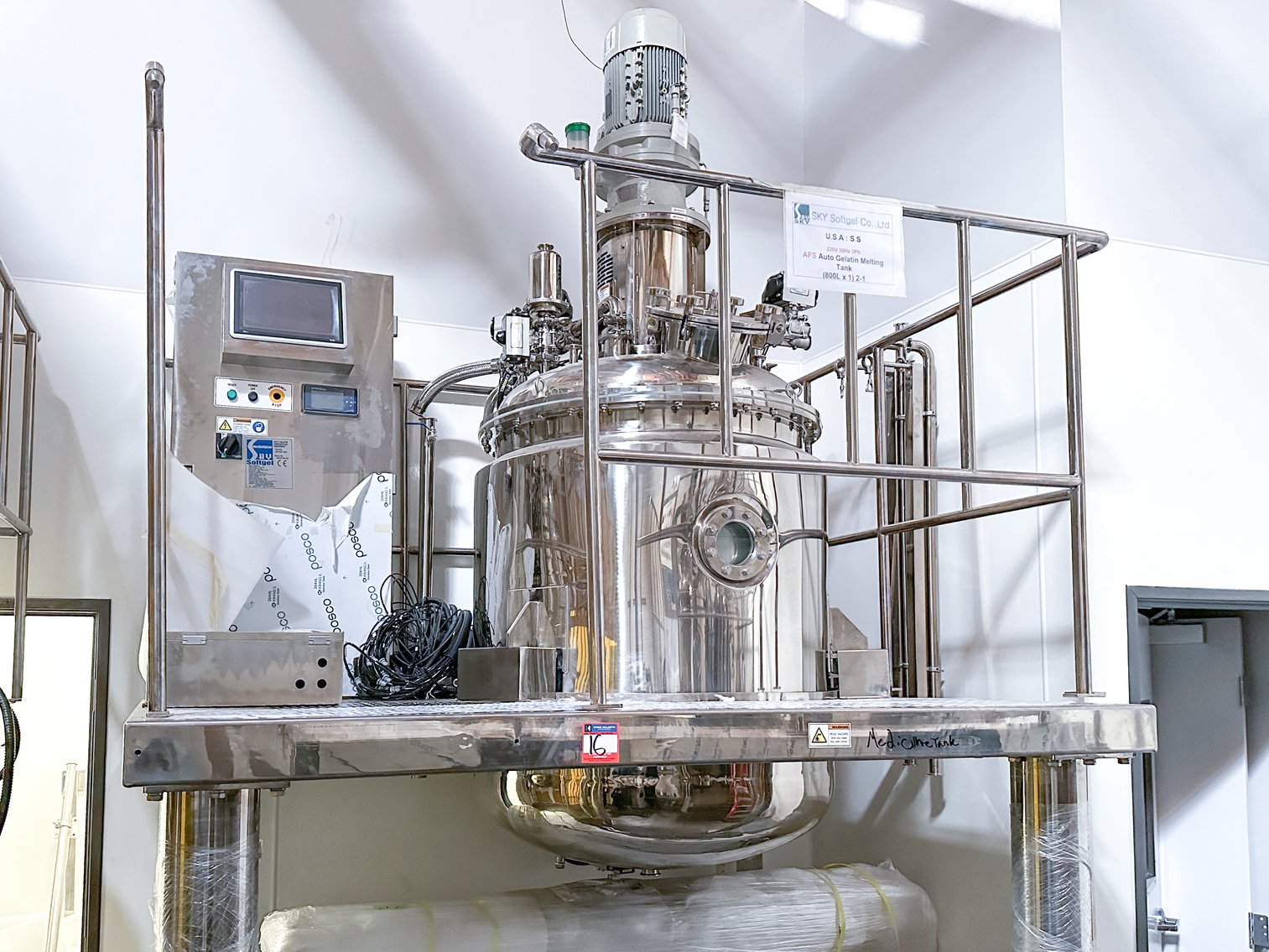

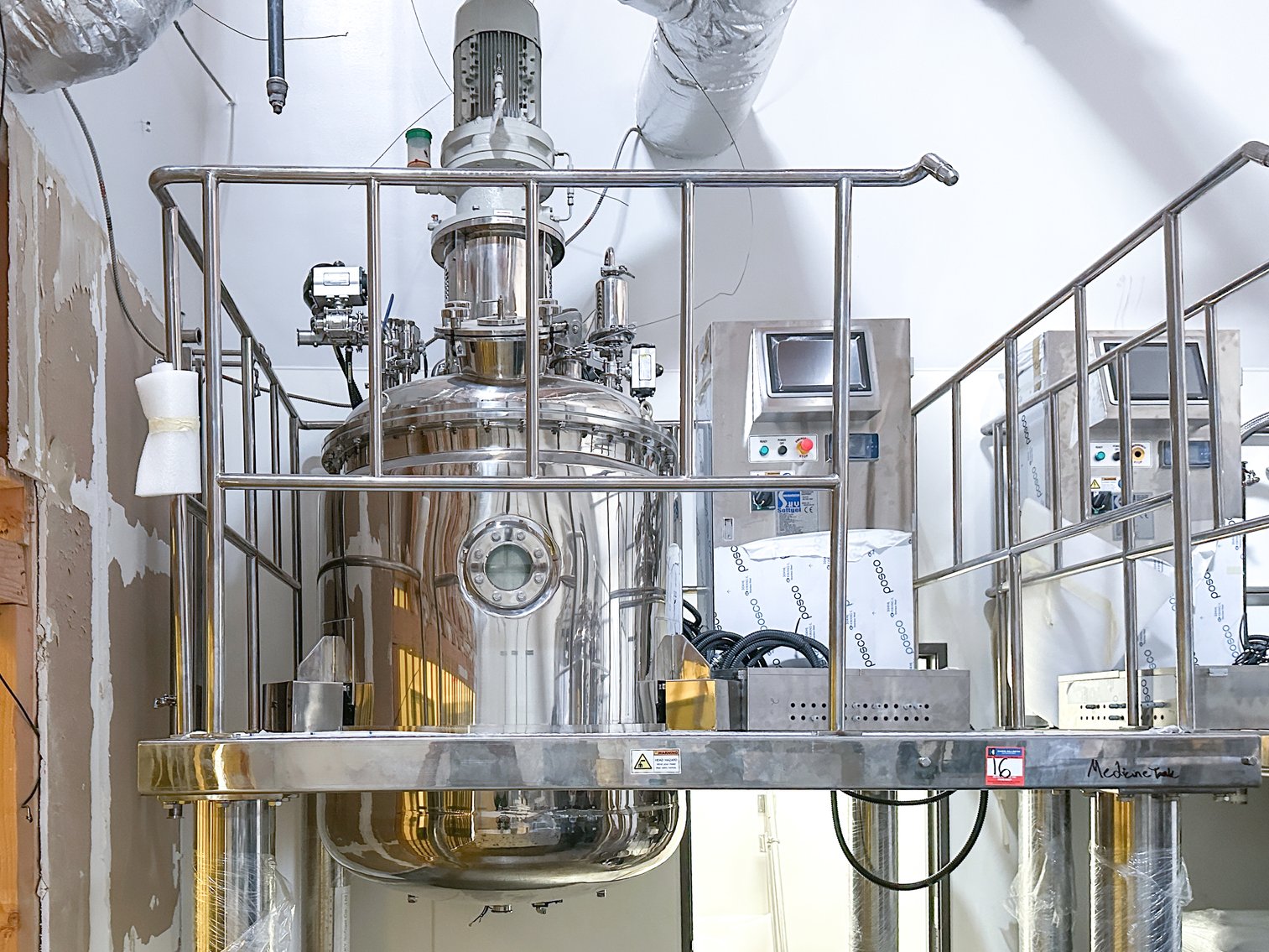

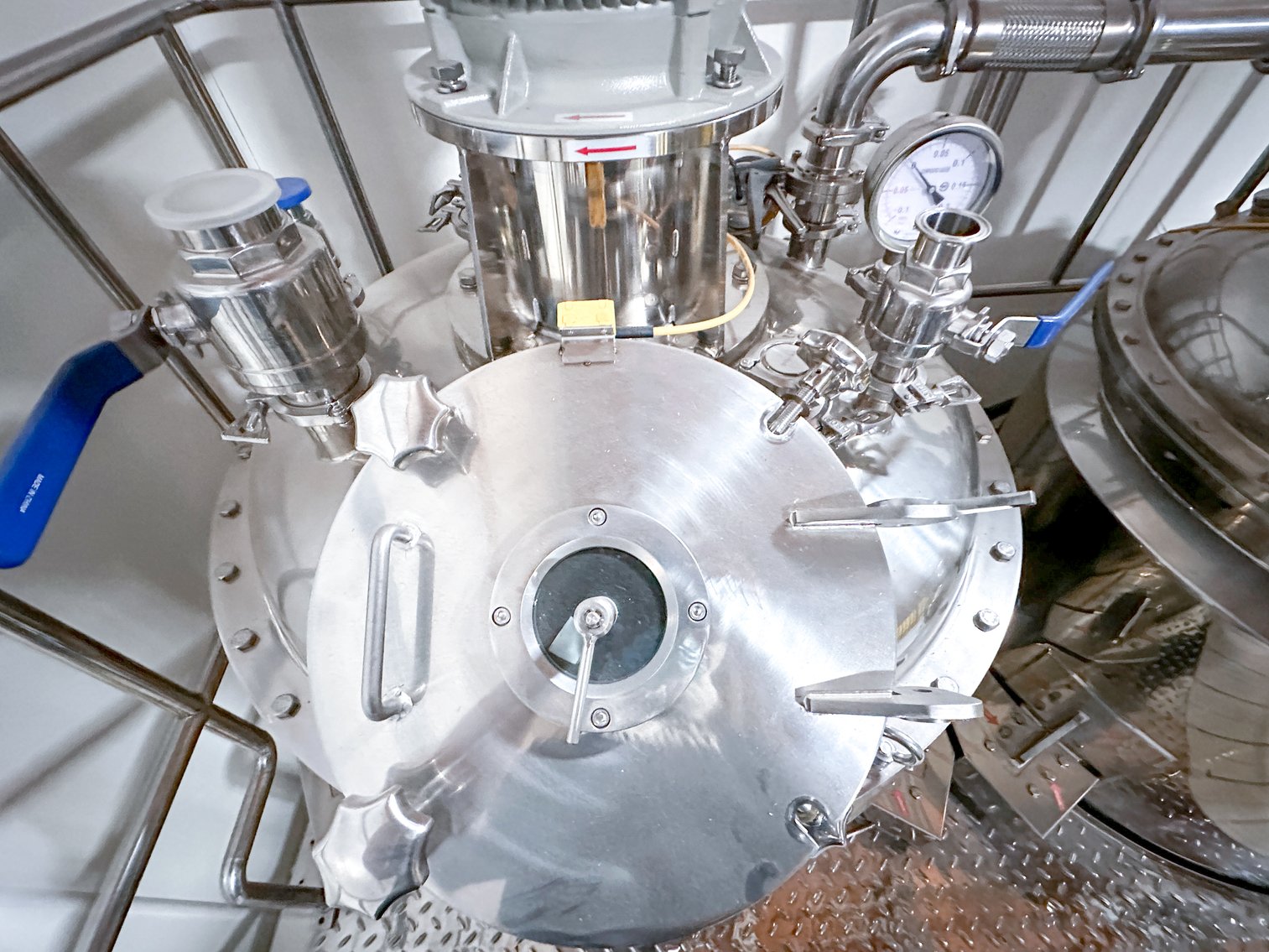

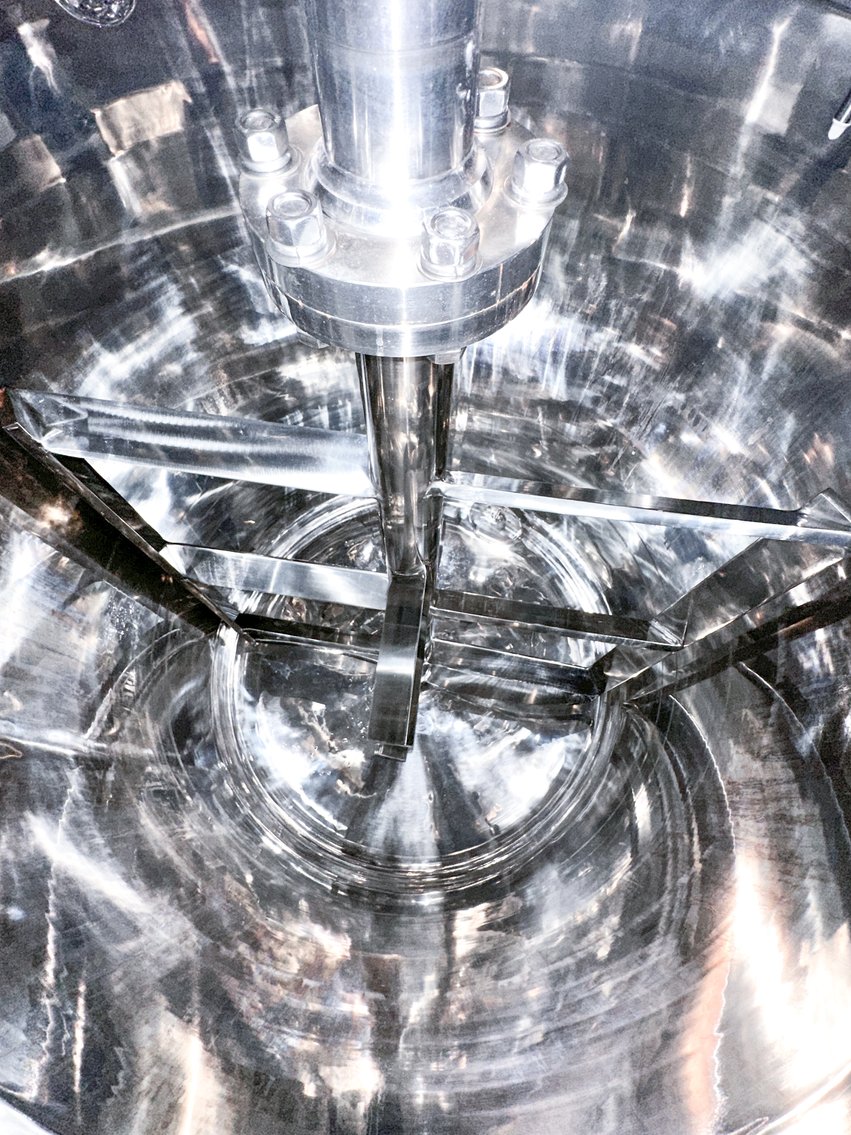

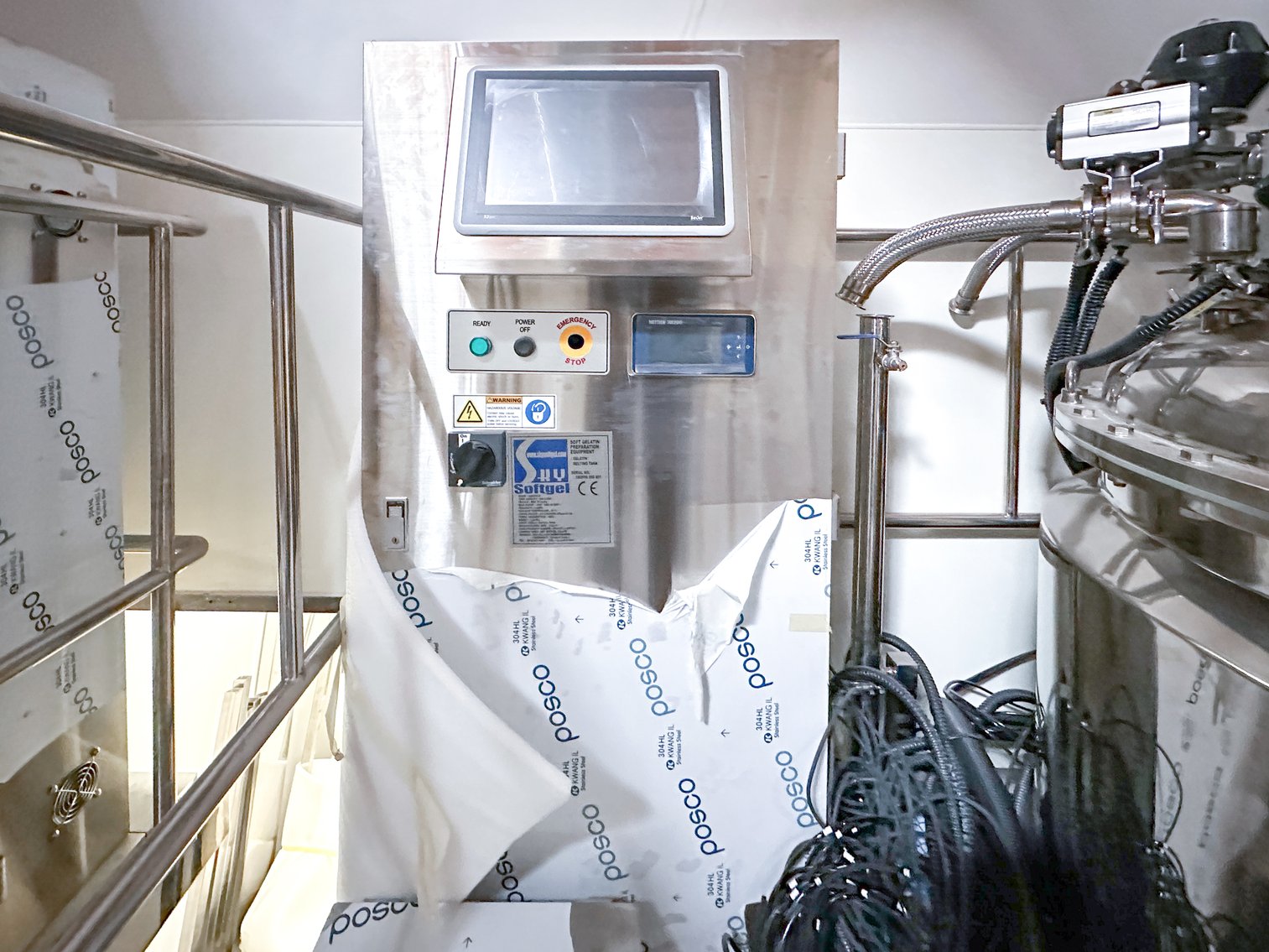

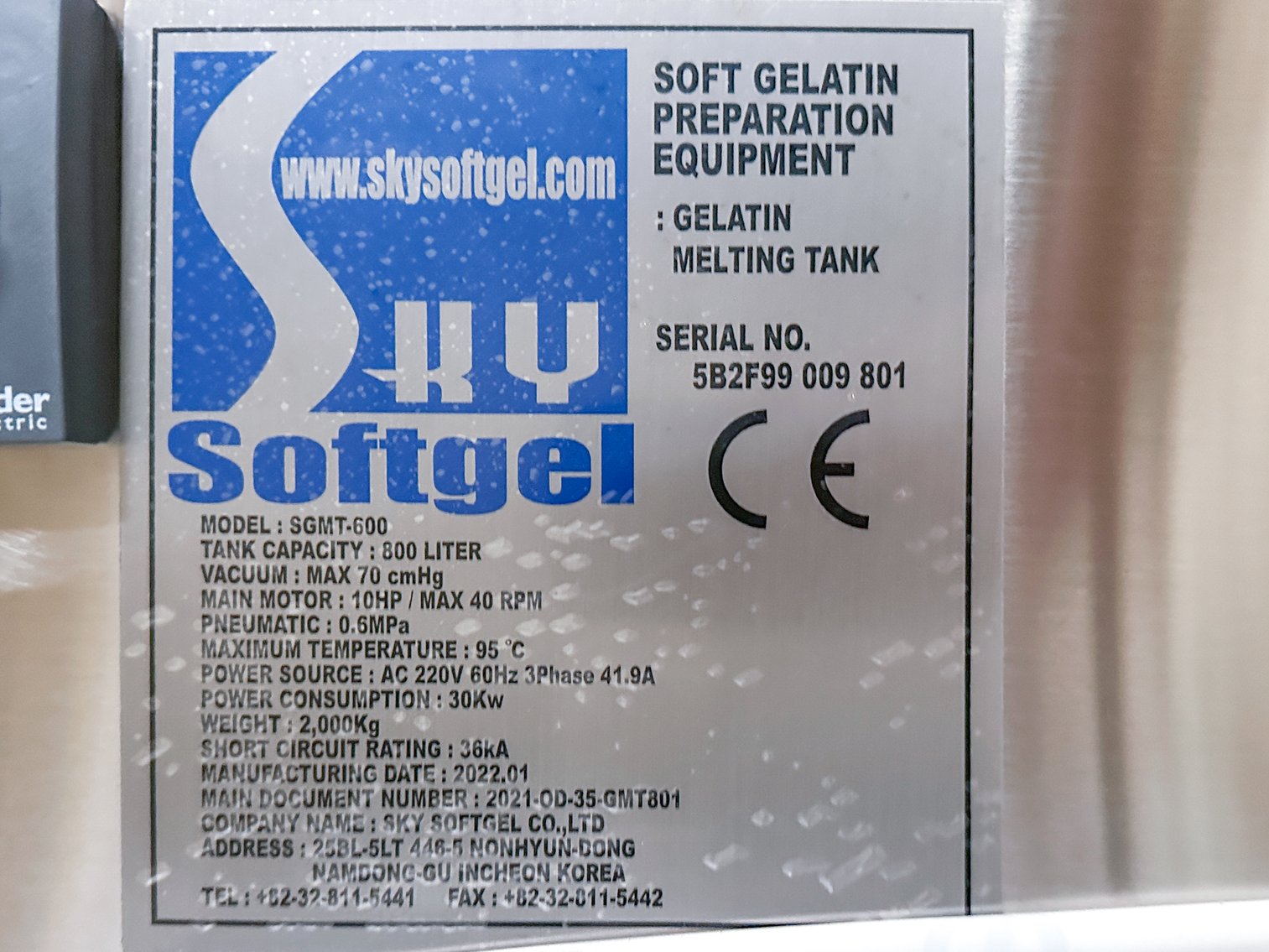

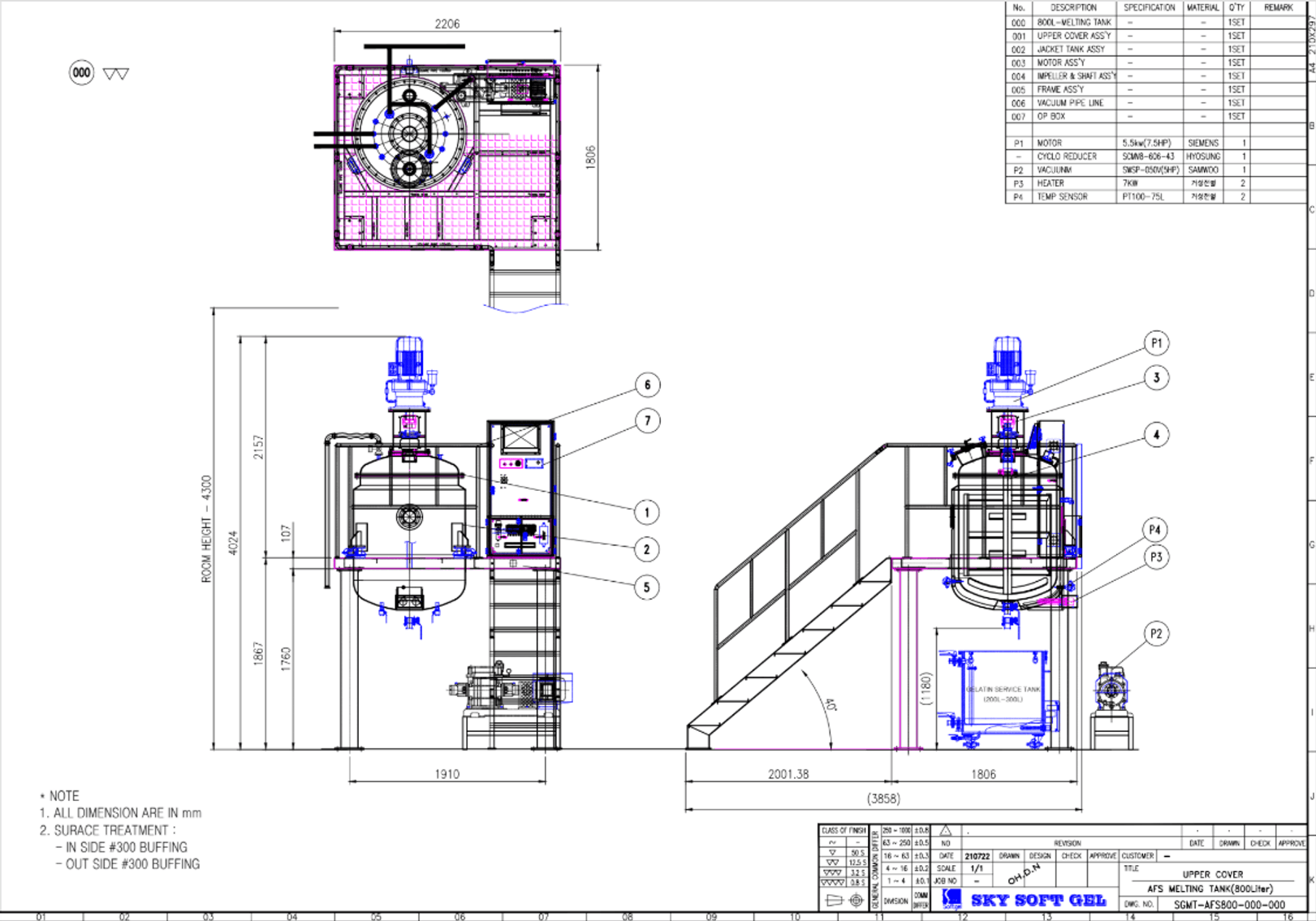

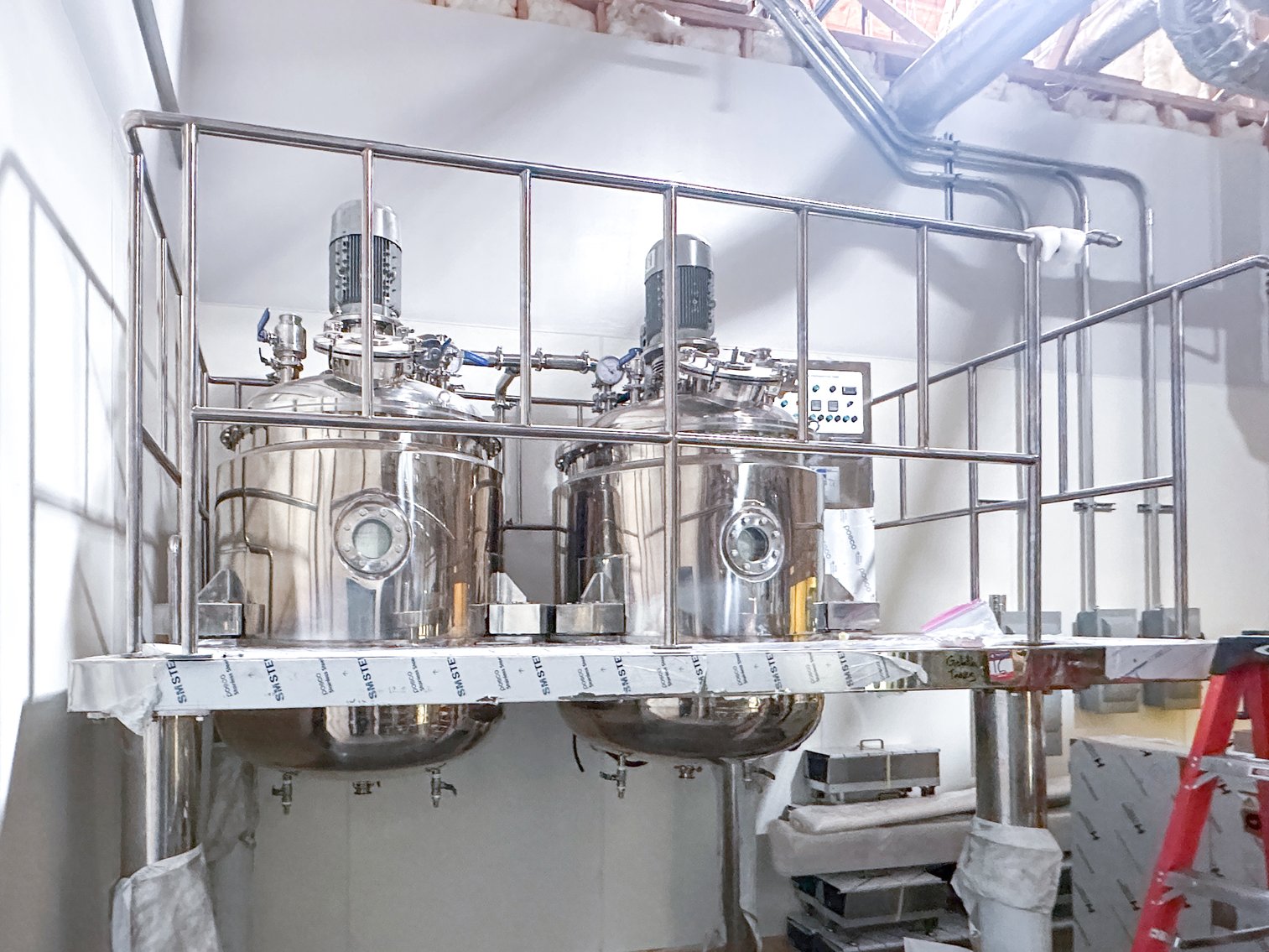

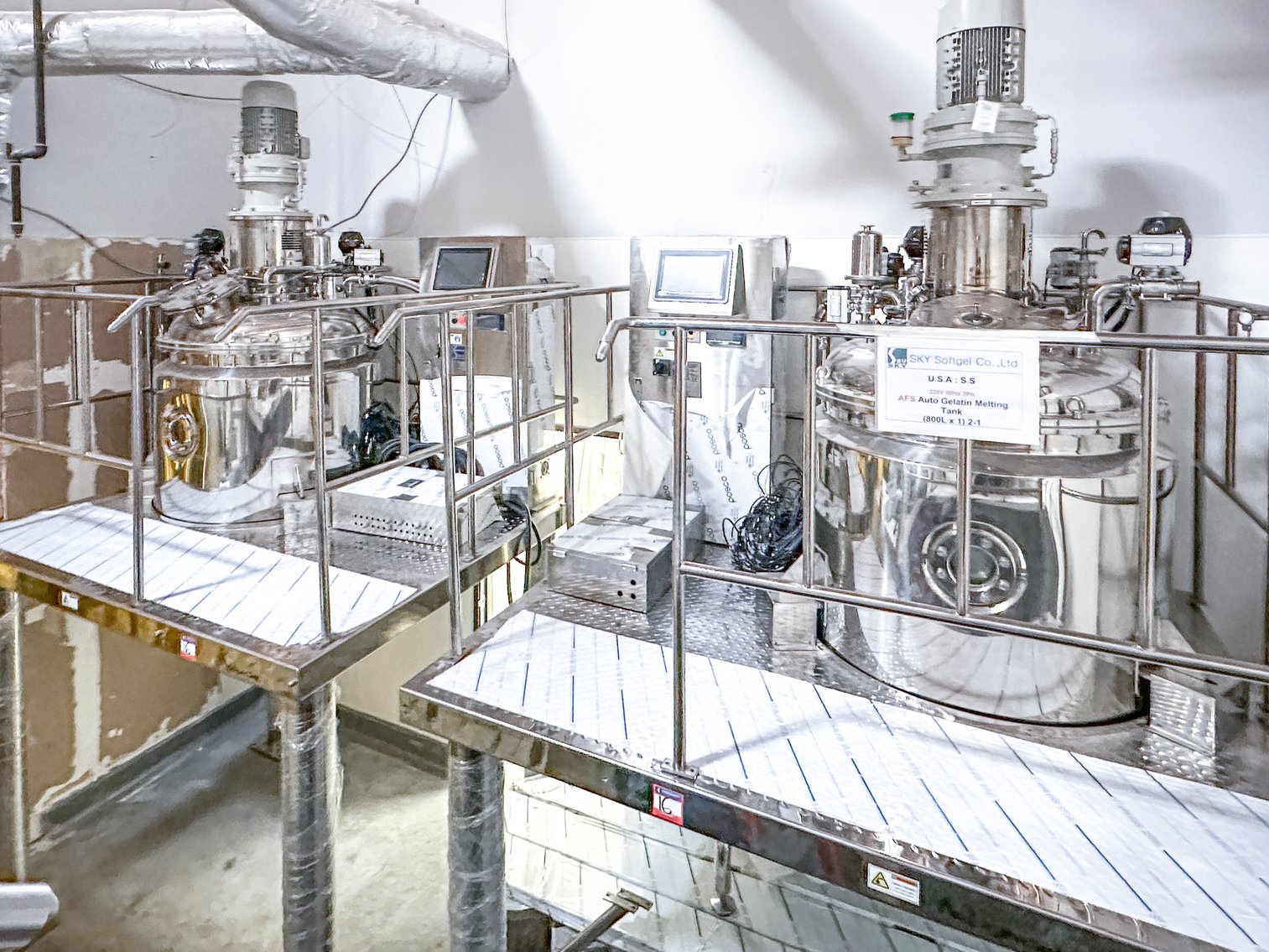

(2) Sky Softgel SGMT-600 Gelatin Melting Tanks – 600 Liter – 2022
Two (2) identical Sky Softgel gelatin melting tanks, Model SGMT-600, manufactured in 2022. Each tank has an 800-liter capacity and is designed for softgel gelatin preparation and processing applications.
Specifications per unit:
• Tank Capacity: 800 Liters
• Vacuum: Max 70 cmHg

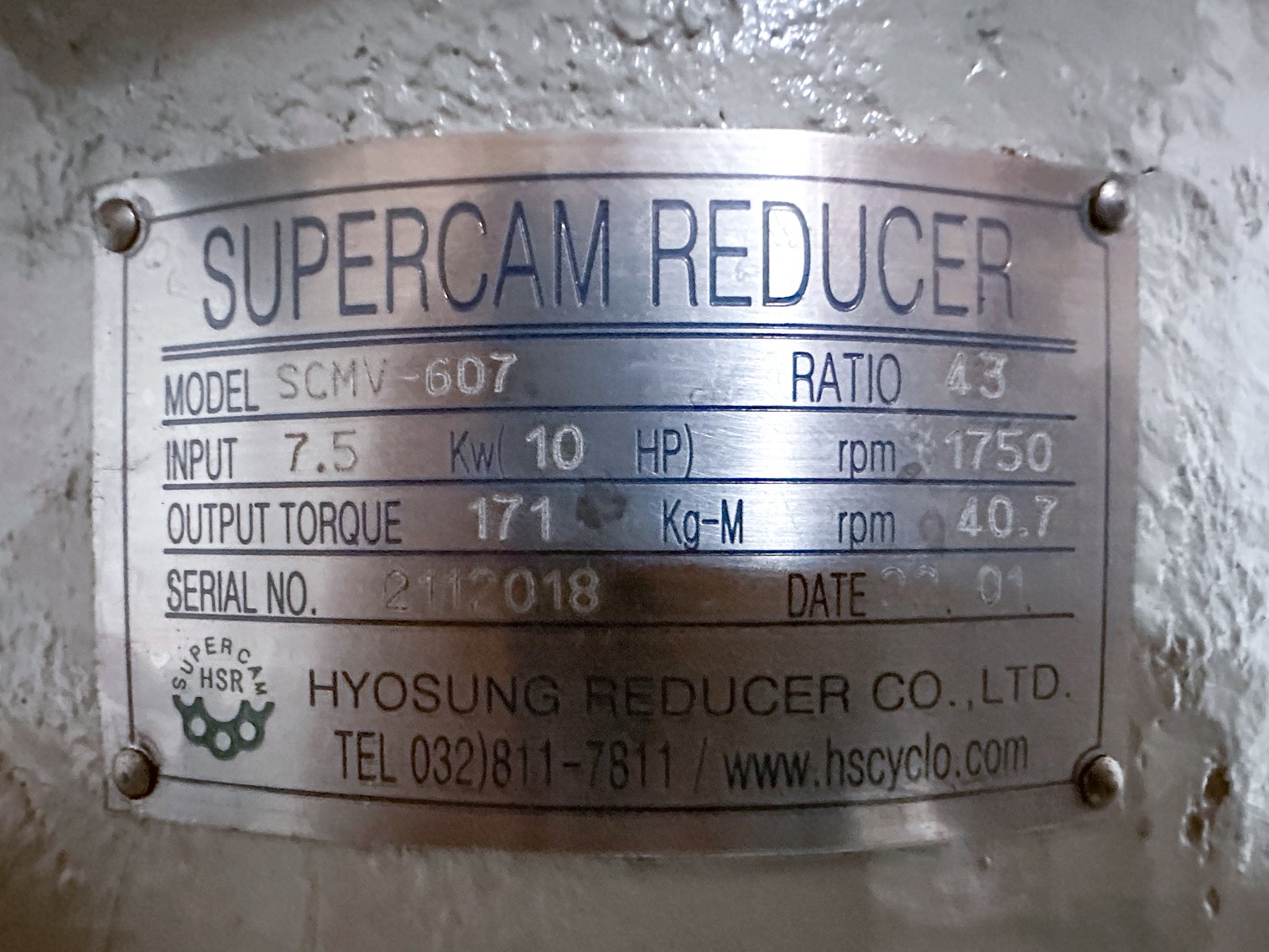

• Main Motor: 10 HP (Max 40 RPM)
• Pneumatic: 0.6 MPa
• Maximum Temperature: 95°C
• Power Source: AC 220V / 60Hz / 3 Phase / 41.9A
• Power Consumption: 30 kW
• Weight: 2,000 kg
• Short Circuit Rating: 36 kA

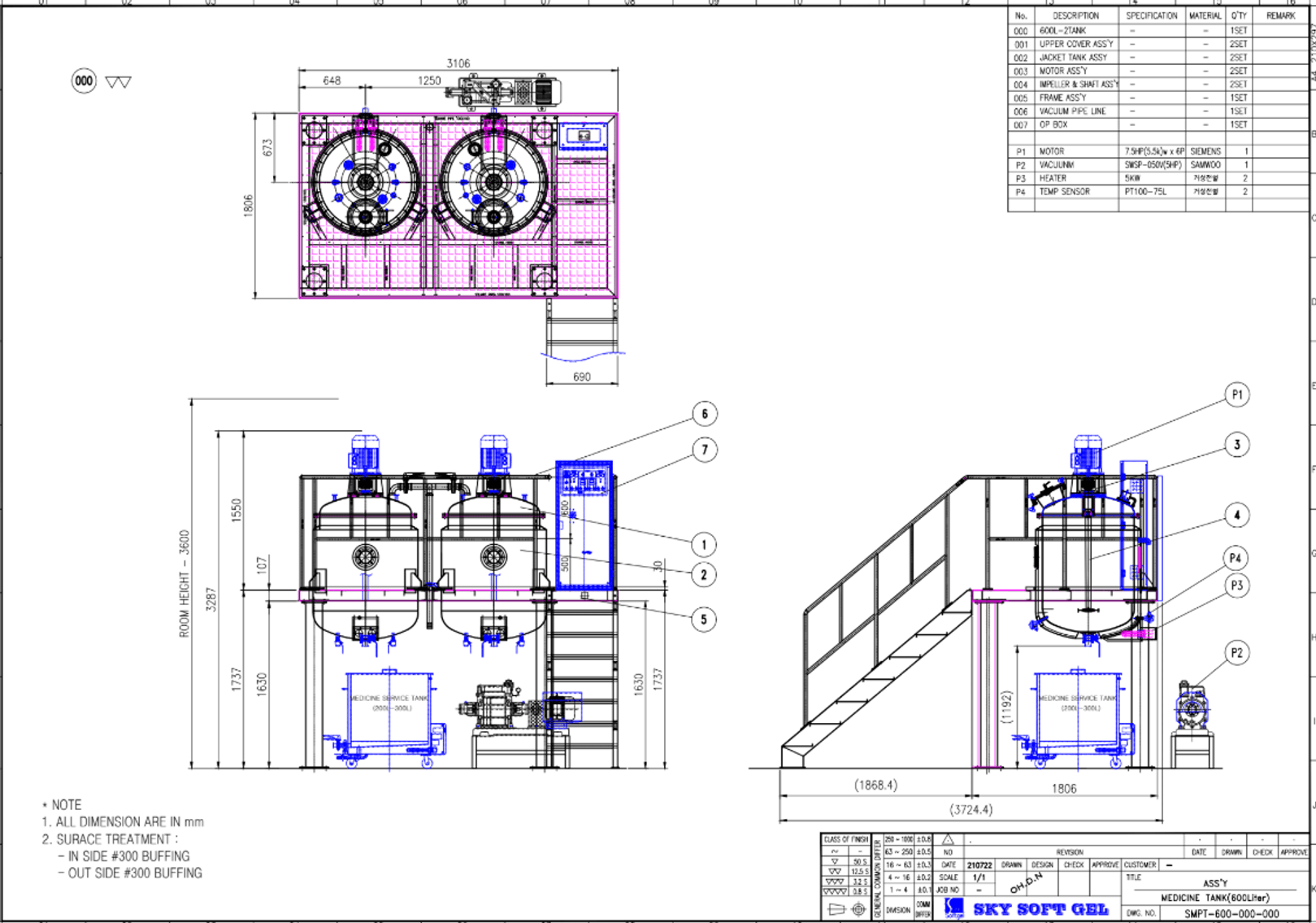

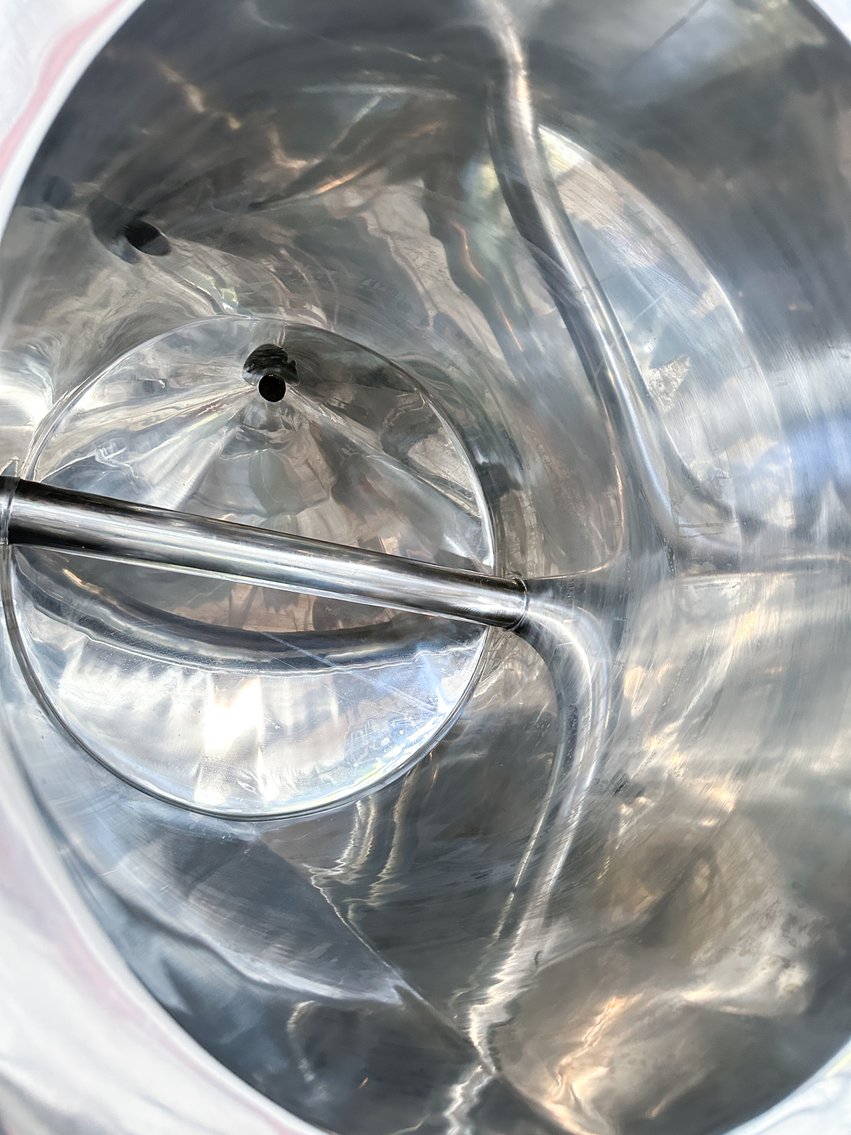

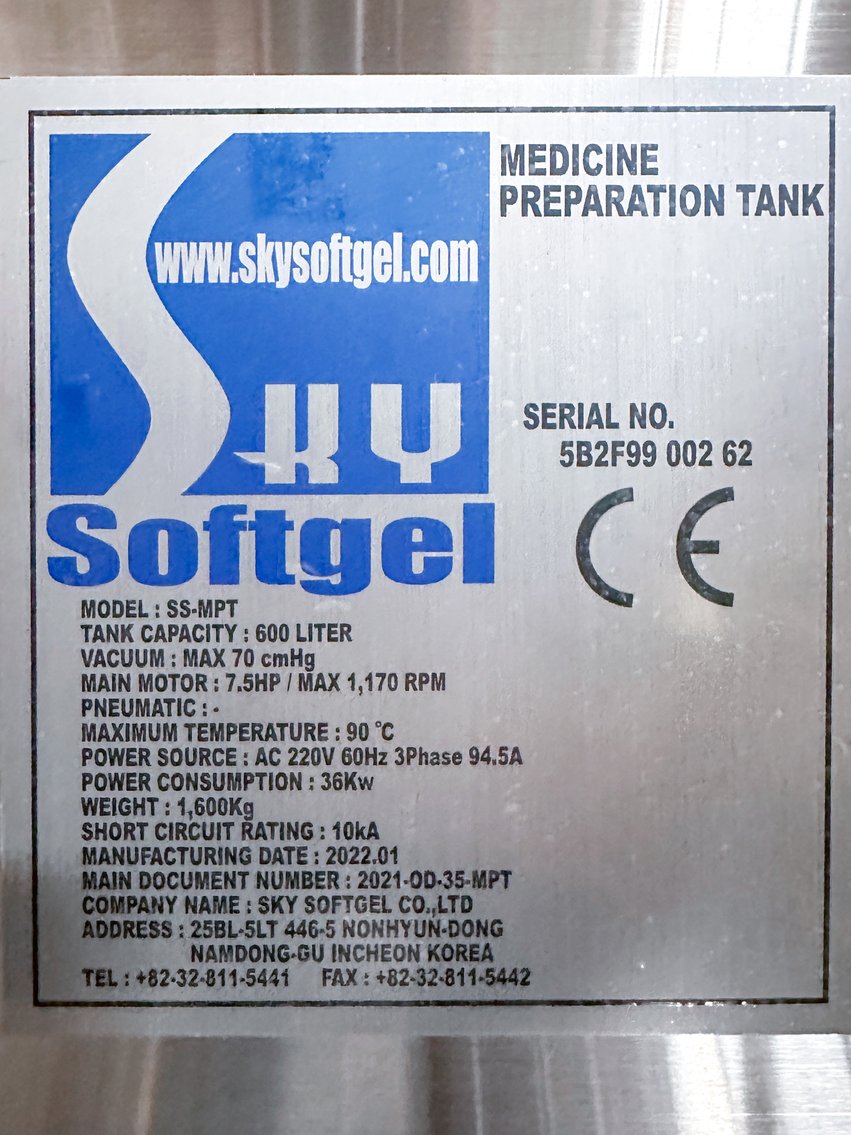

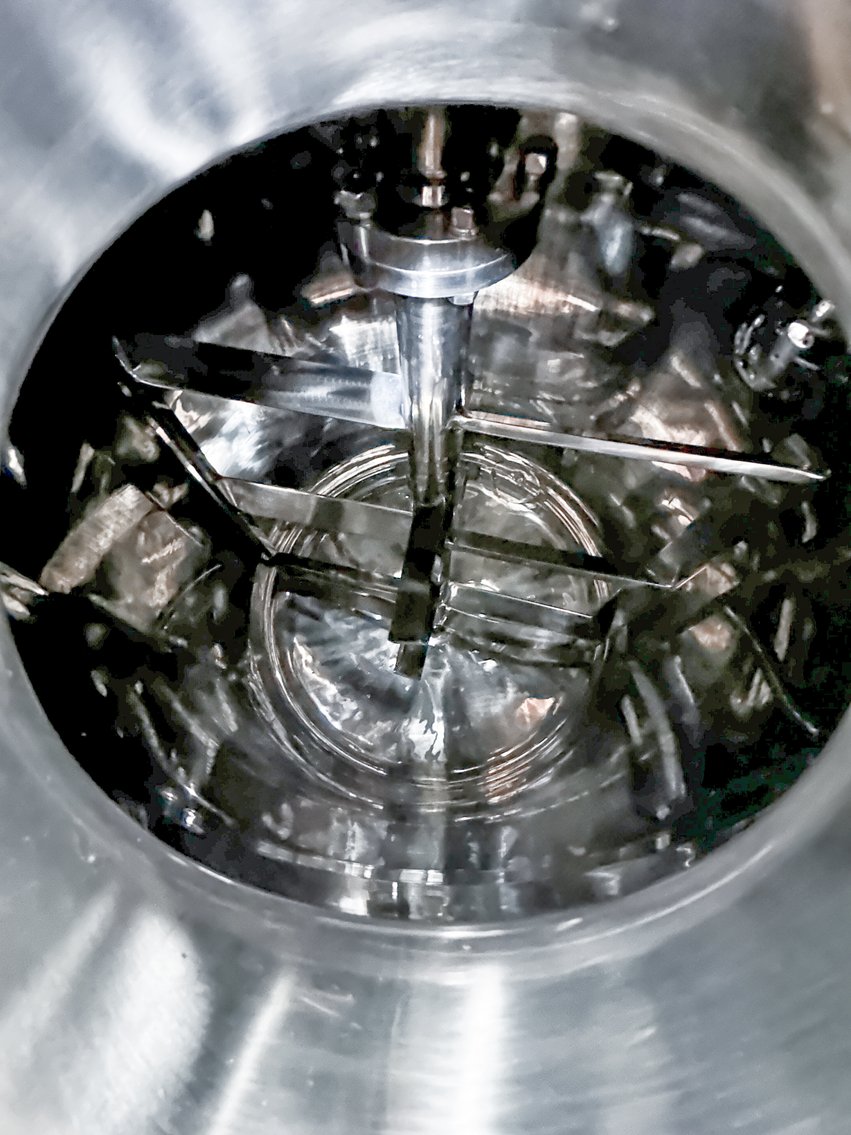

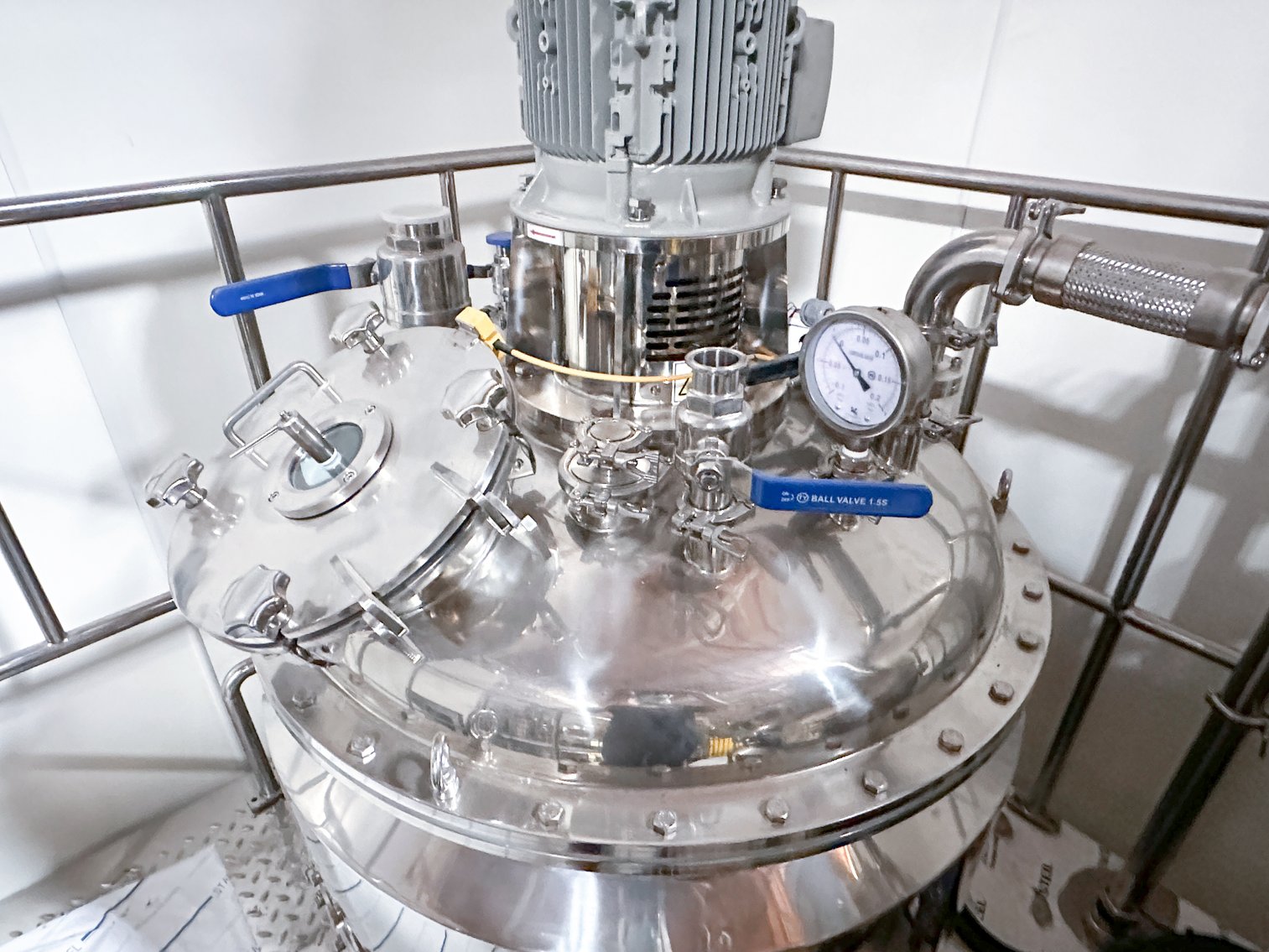

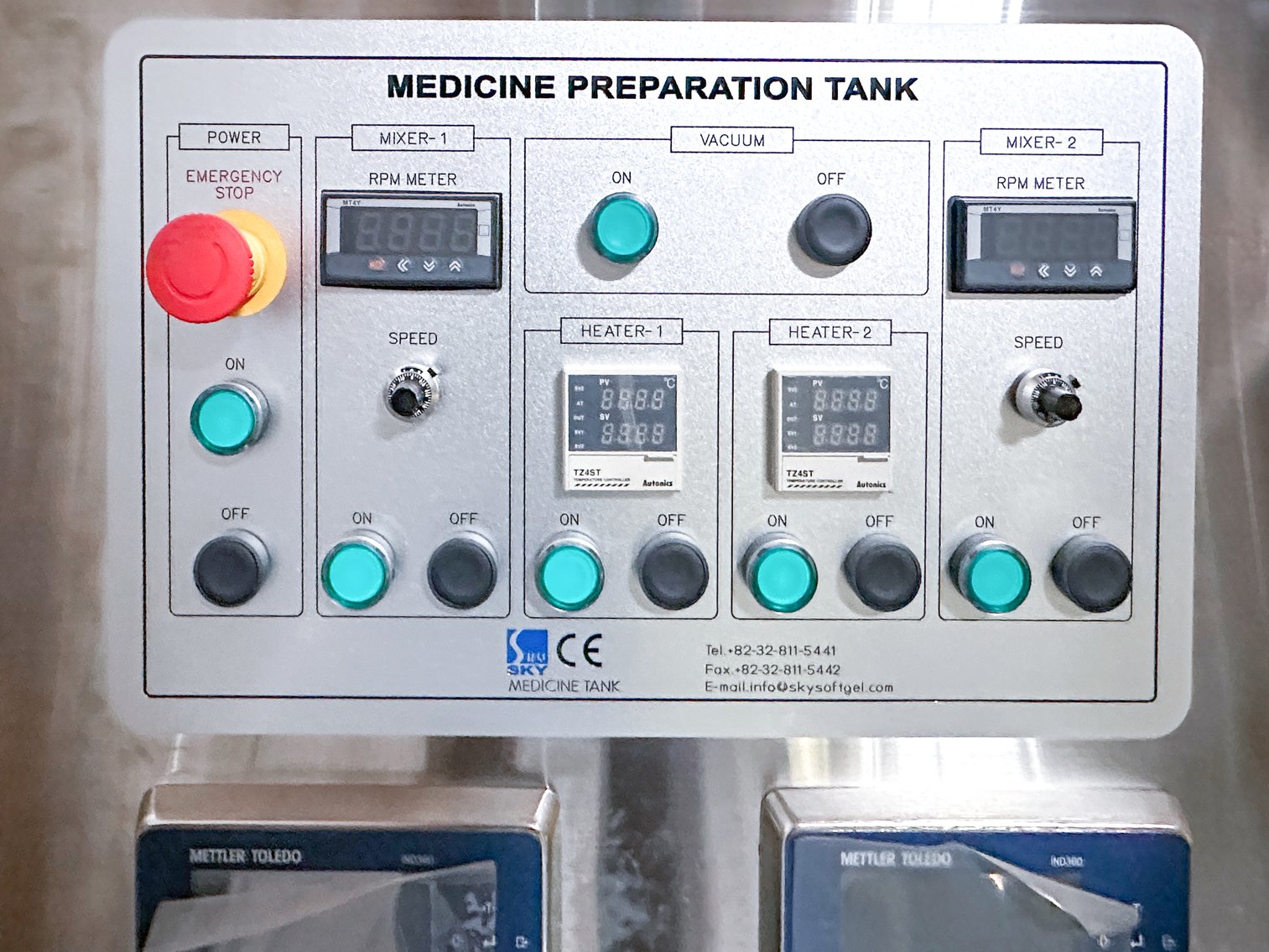

(2) Sky Softgel SS-MPT Medicine Preparation Tanks – 600 Liter – 2022 – CE
Two (2) Identical Sky Softgel Medicine Preparation Tanks, Model SS-MPT, manufactured January 2022. Designed for pharmaceutical and nutraceutical liquid and solution preparation applications.
Specifications per unit:
• Tank Capacity: 600 Liters
• Vacuum: Max 70 cmHg
• Main Motor: 7.5 HP (Max 1,170 RPM)
• Maximum Temperature: 90°C
• Power Source: AC 220V / 60Hz / 3 Phase / 94.5A
• Power Consumption: 36 kW
• Weight: 1,600 kg
• Short Circuit Rating: 10 kA
• CE Marked

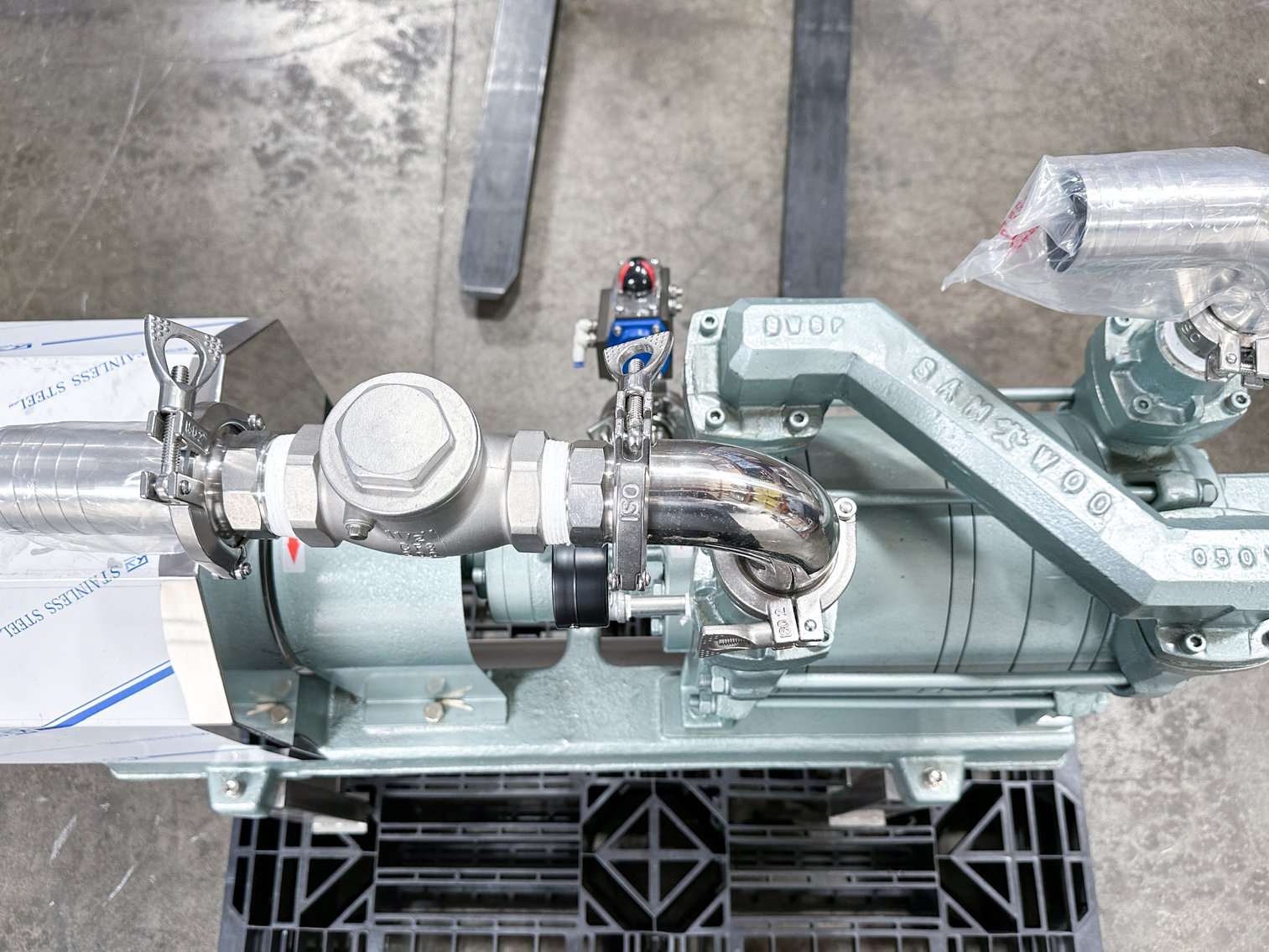

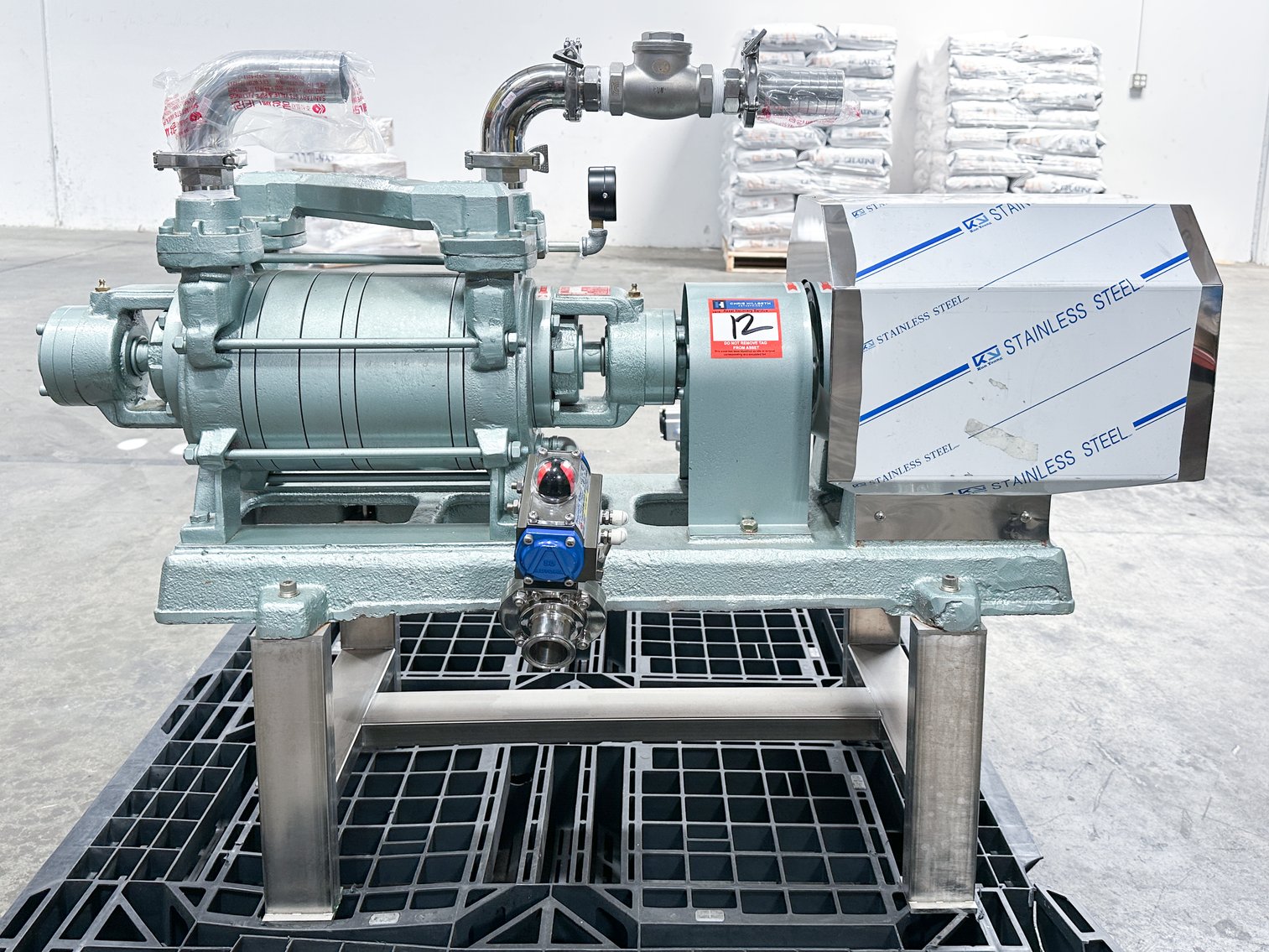

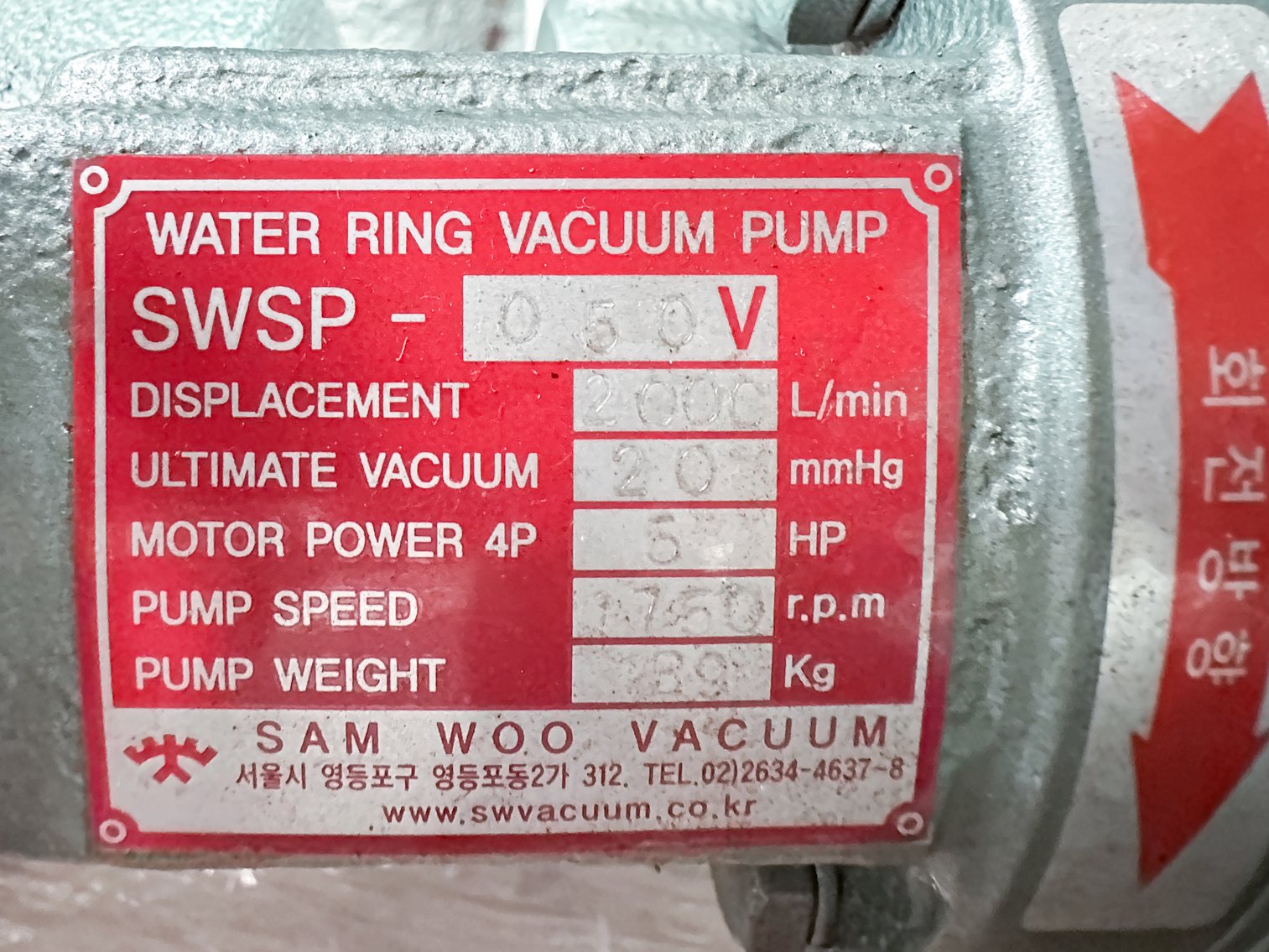

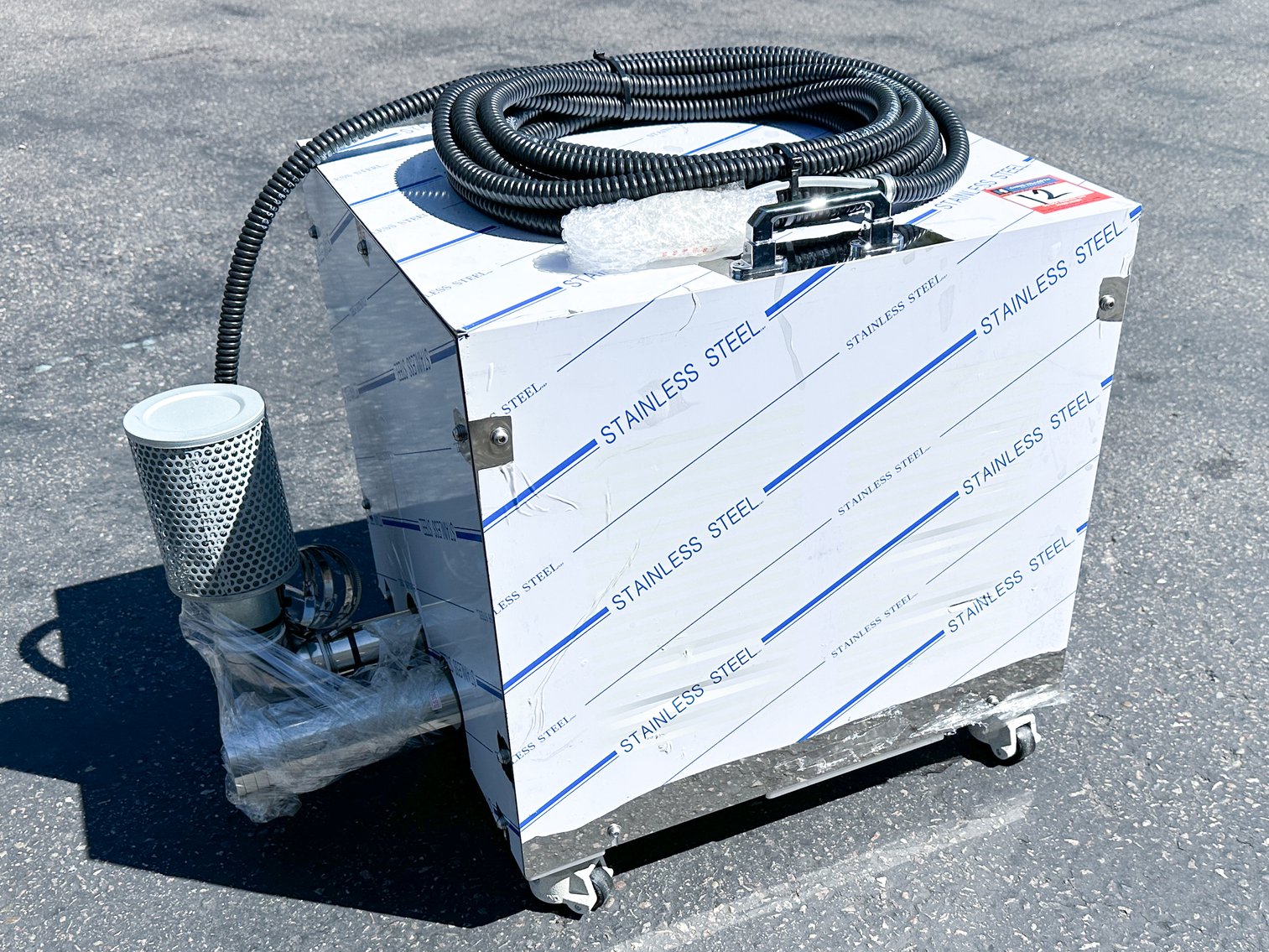

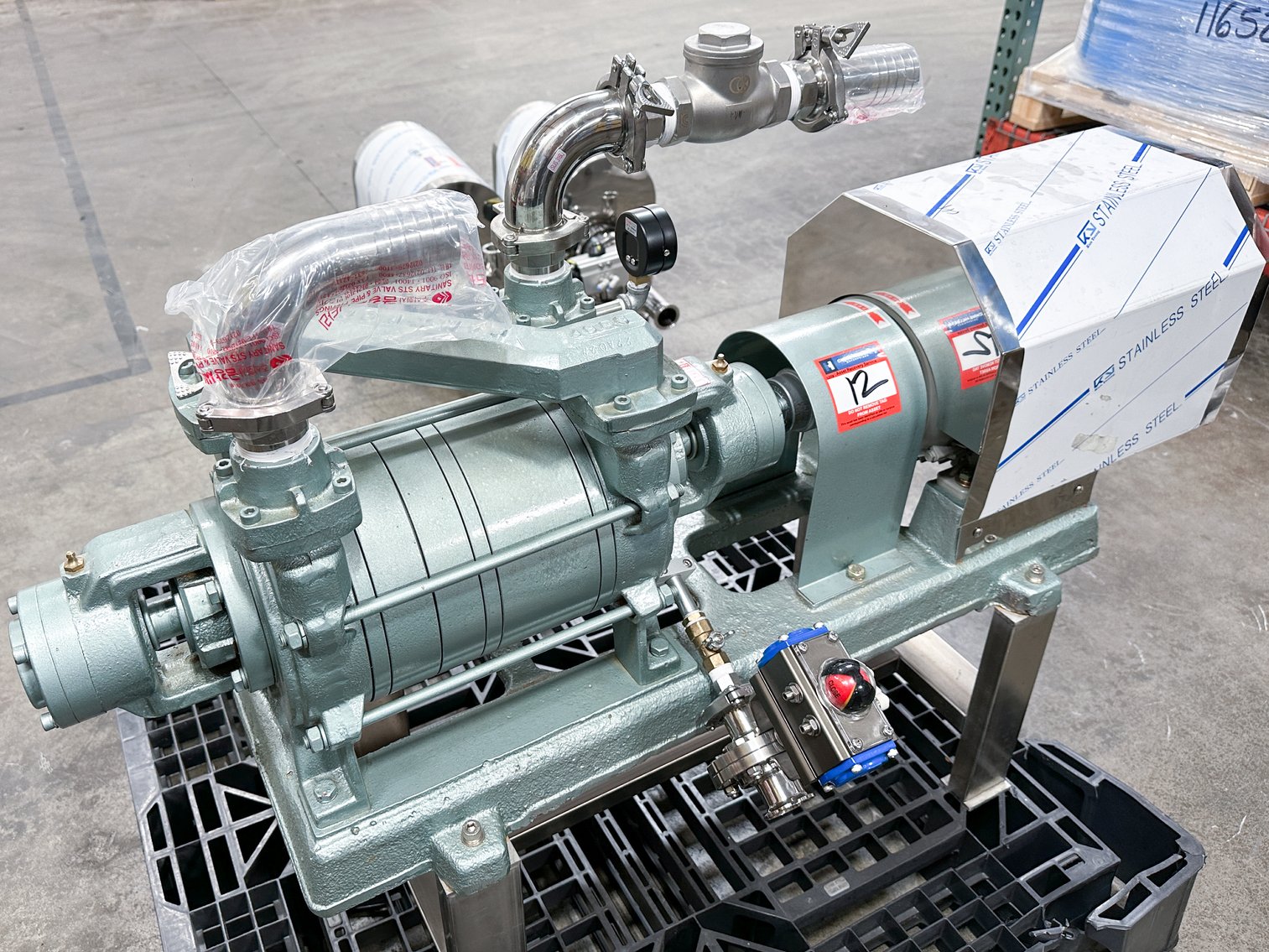

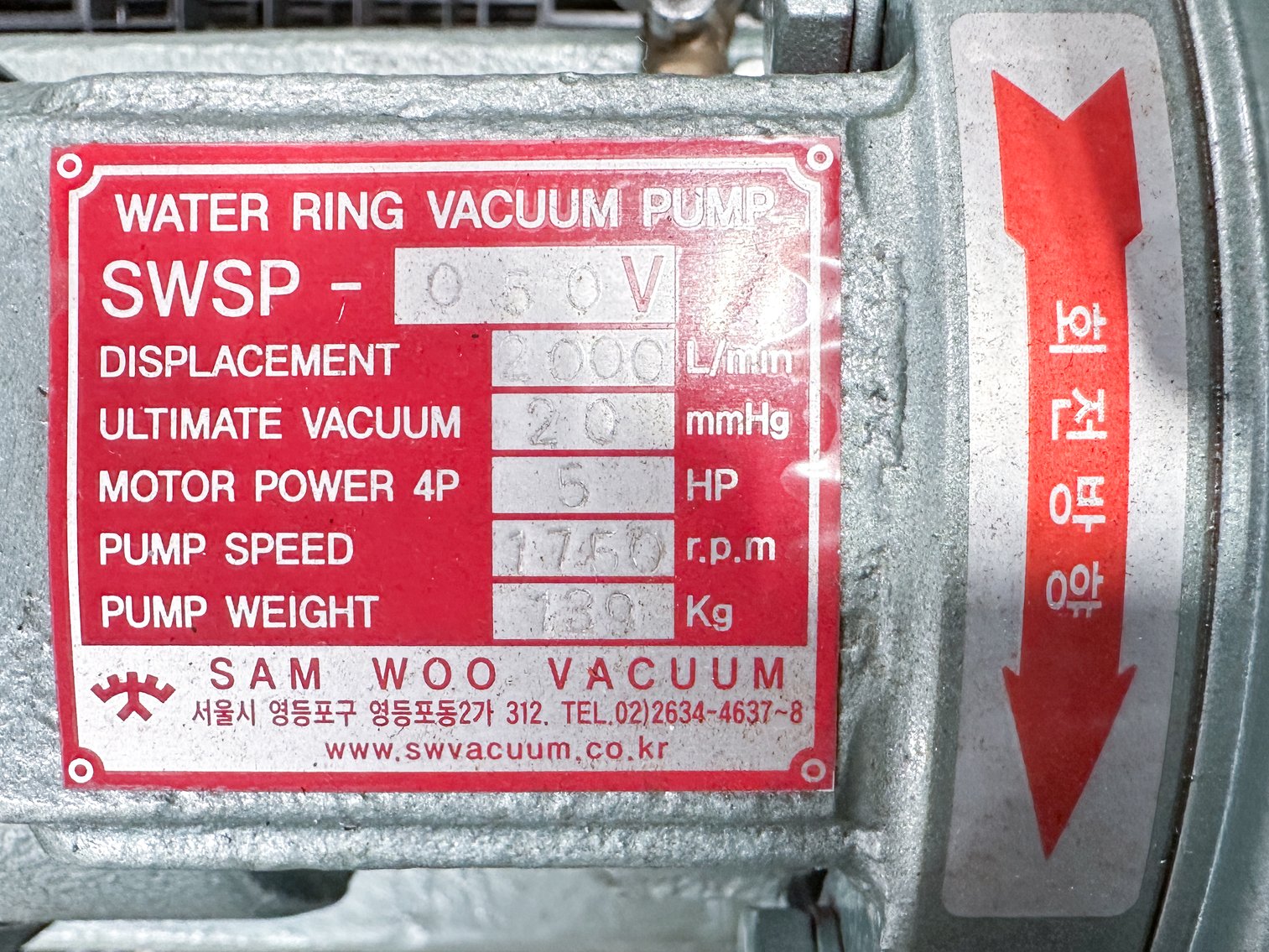

1- SAMWOO SWSP-V Water Ring Vacuum Pump – 5 HP – 2000 L/min – 1750 RPM
Heavy-duty water ring vacuum pump manufactured by Samwoo Vacuum, designed for reliable vacuum generation in continuous processing applications. Model SWSP-V delivers approximately 2000 L/min displacement and operates at 1750 RPM, powered by a 5 HP motor.
This unit is well-suited for use with gelatin melting tanks, vacuum deaeration, and other applications requiring consistent vacuum performance in food, nutraceutical, pharmaceutical, and chemical processing environments.
Model: SWSP-V
Type: Water Ring Vacuum Pump
Displacement: Approx. 2000 L/min
Ultimate Vacuum: Approx. 20 mmHg
Motor: 5 HP (4P)
Pump Speed: 1750 RPM
Approx. Weight: 130 kg

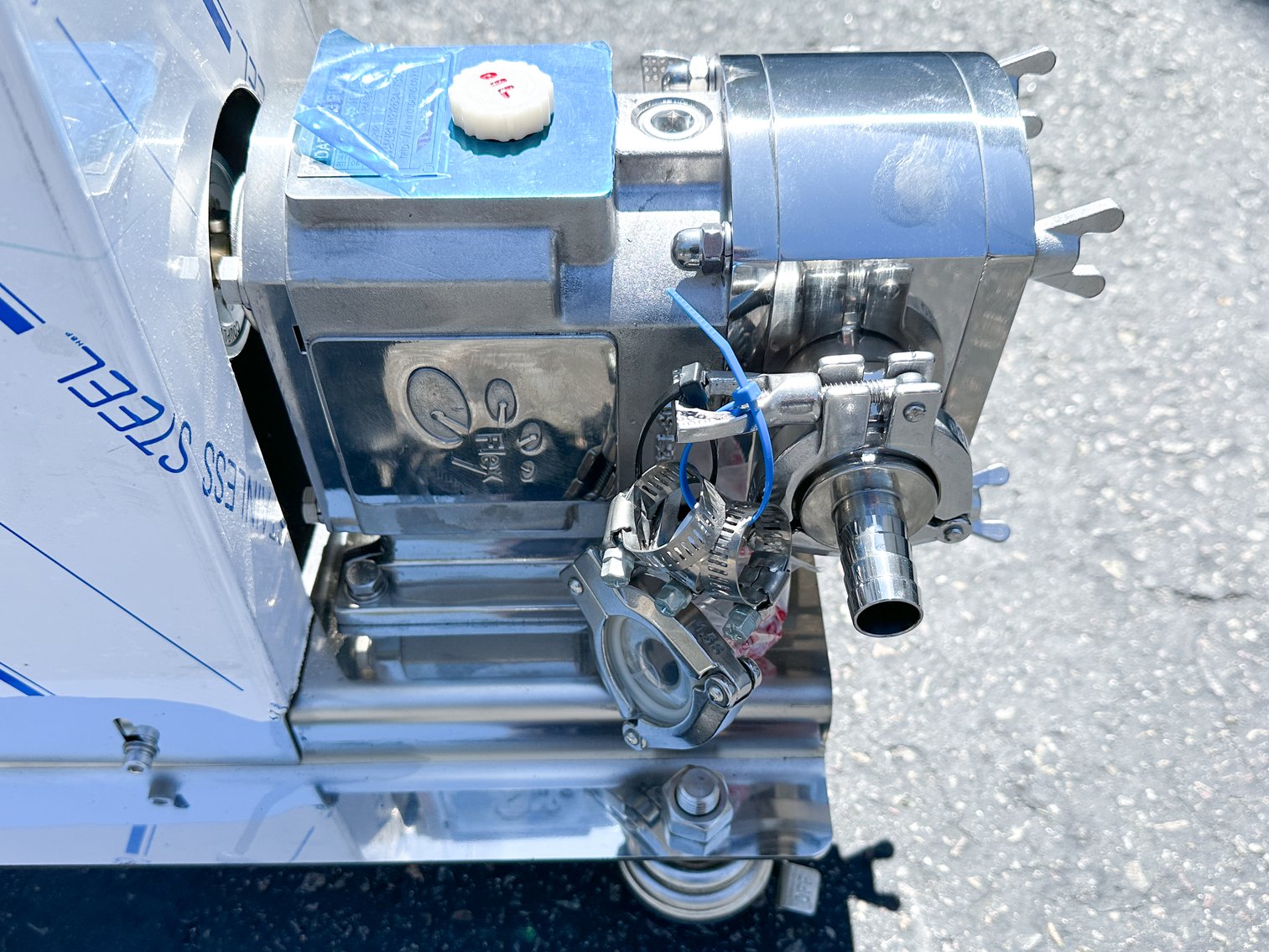

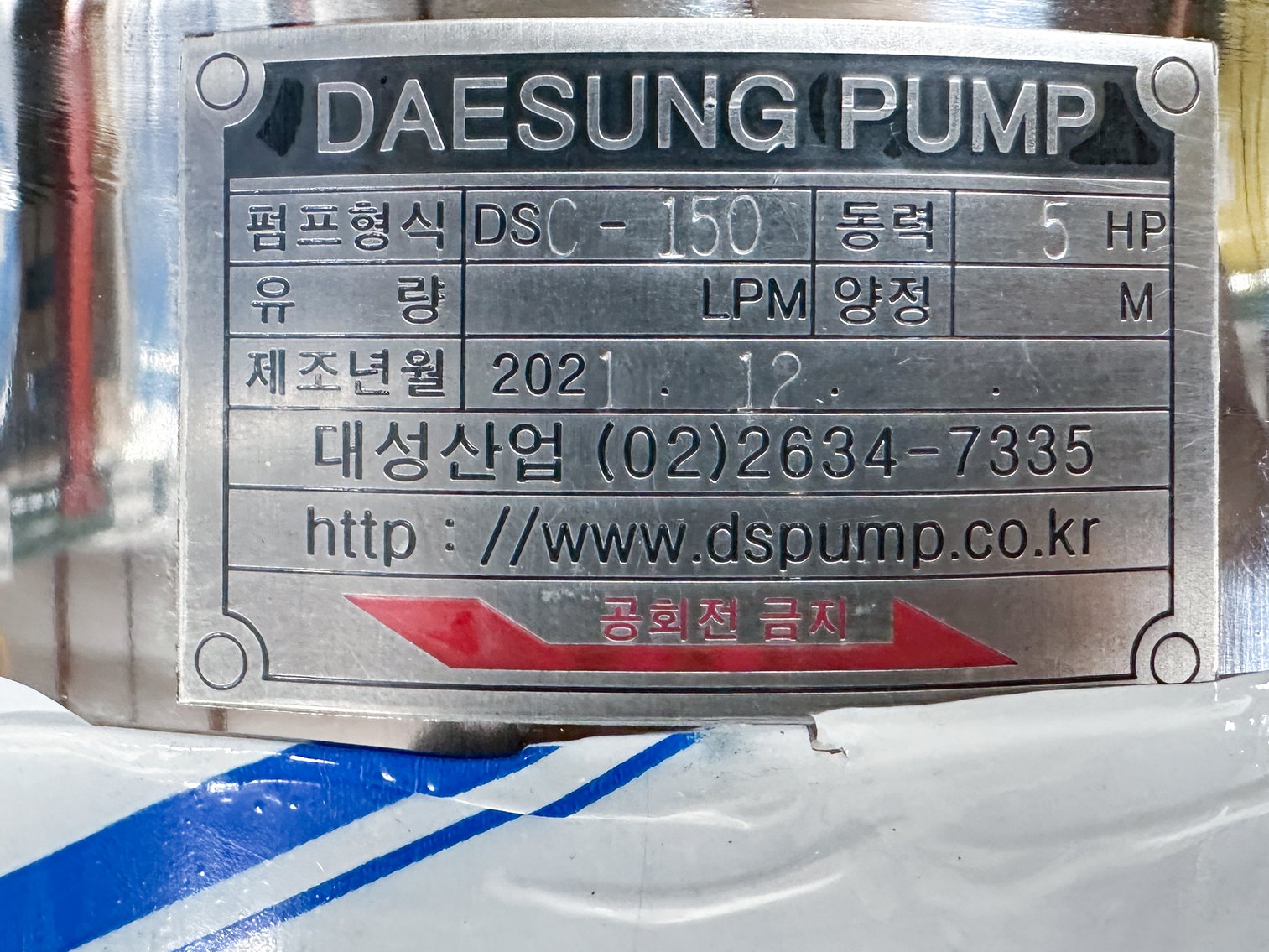

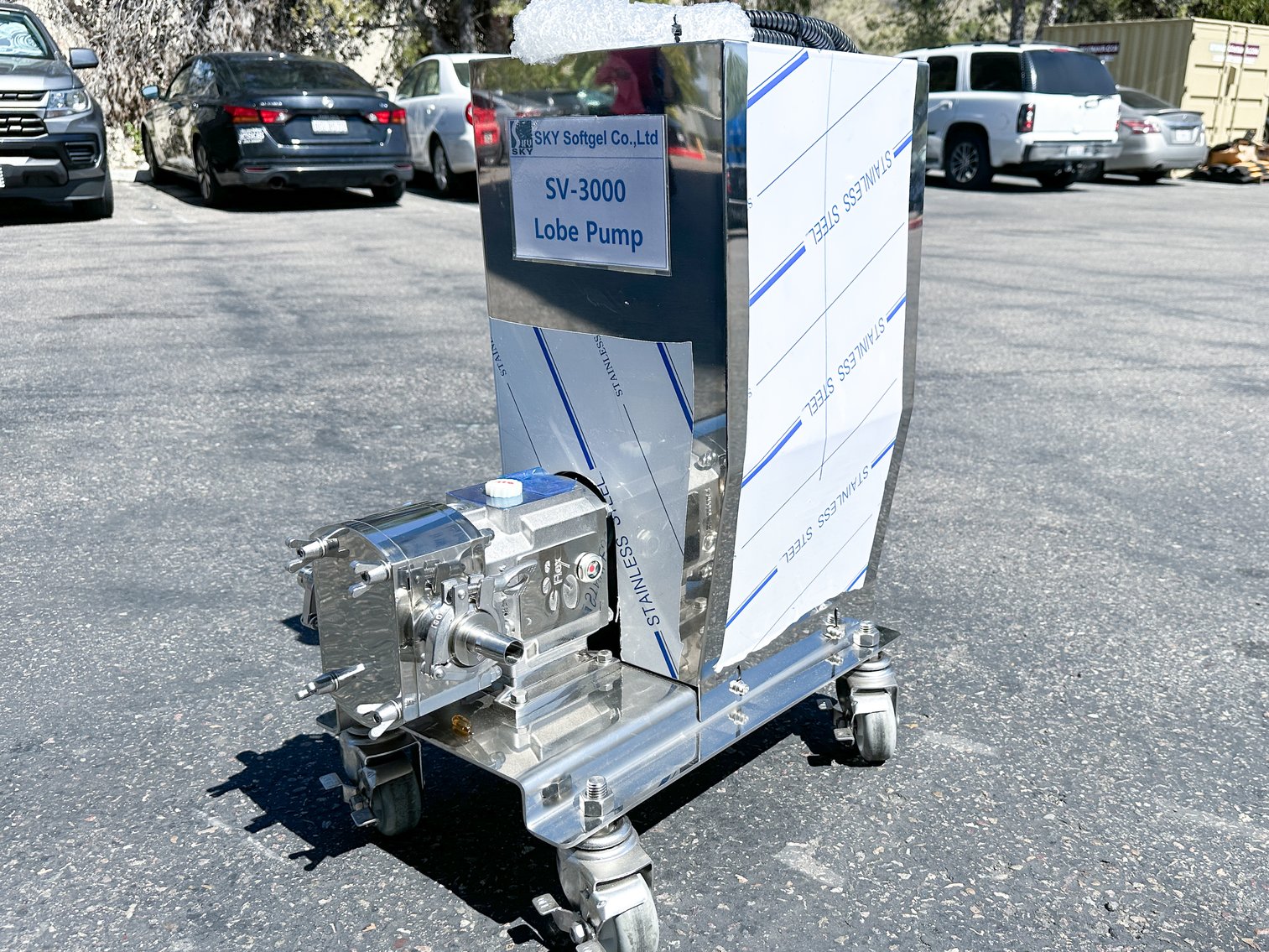

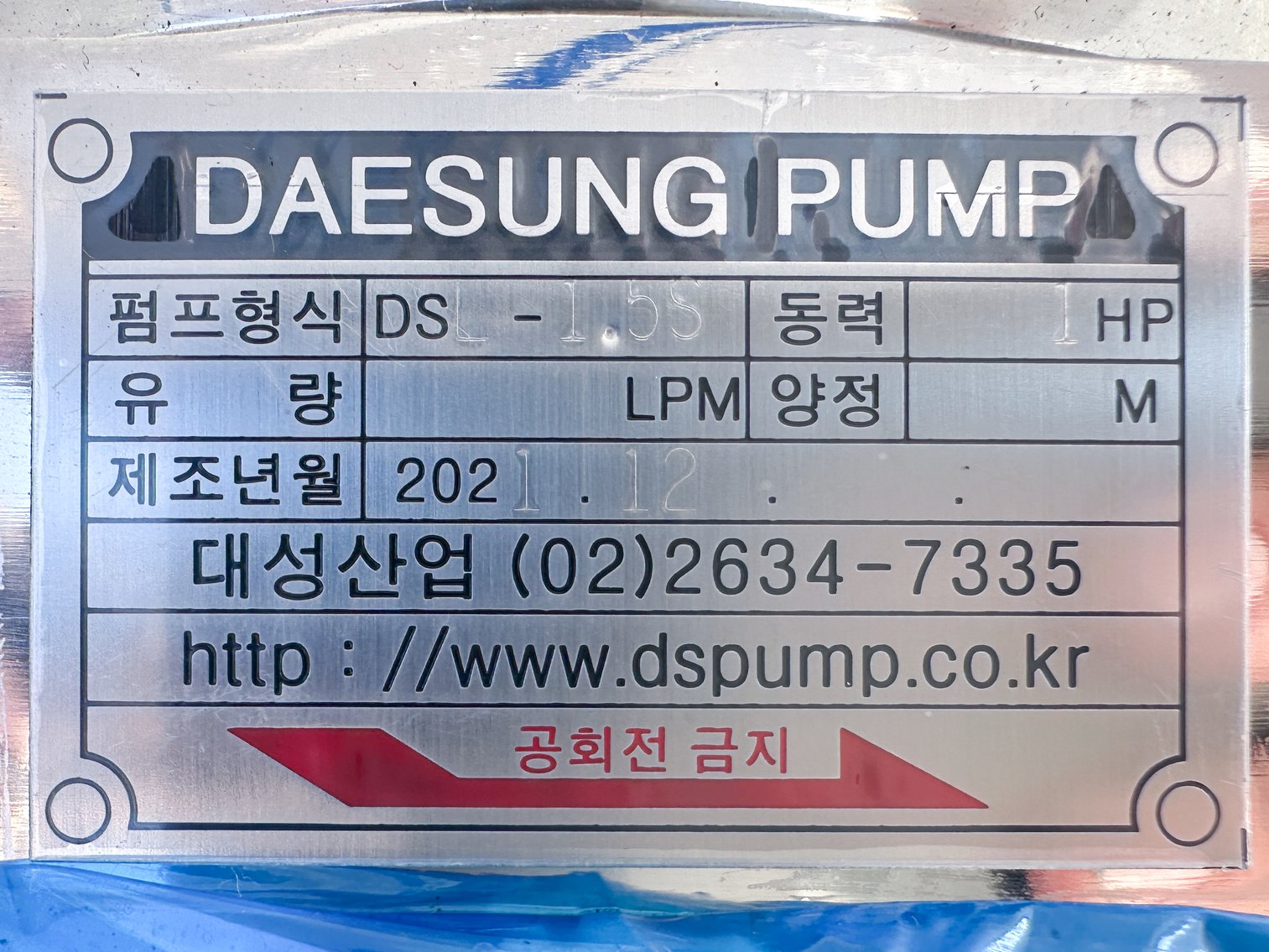

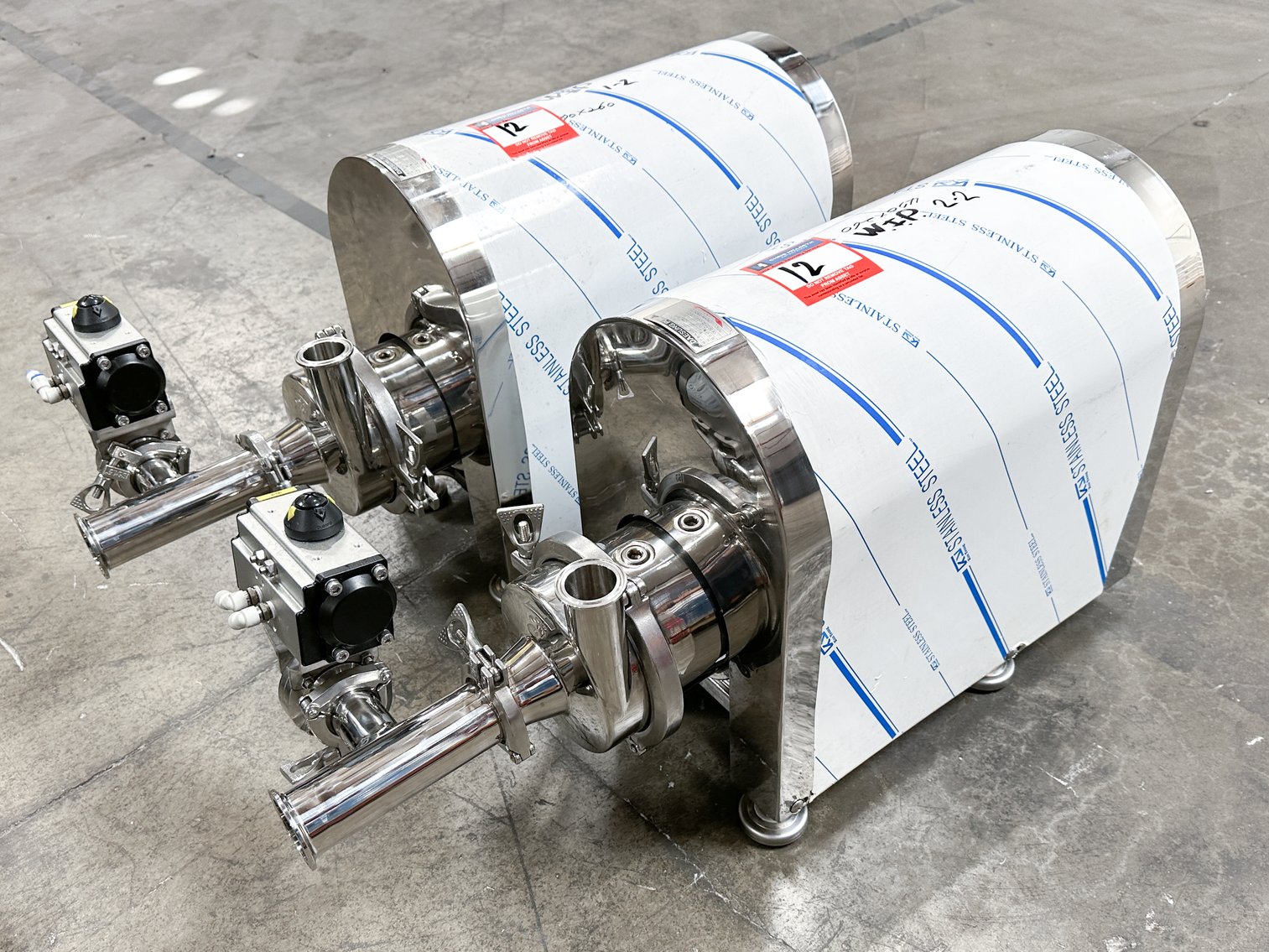

2- Lobe Pump (DAESAUNG PUMP)
High-quality sanitary lobe pump manufactured by Daesung Pump, designed for efficient and gentle product transfer in demanding processing environments. Model DSC-150, built in 2021, features a 5 HP motor and is well-suited for handling a wide range of viscosities including liquids, slurries, and shear-sensitive products.
Manufacturer: Daesung Pump
Model: DSC-150
Type: Rotary Lobe Pump
Year: 2021
Motor: 5 HP
Sanitary Design

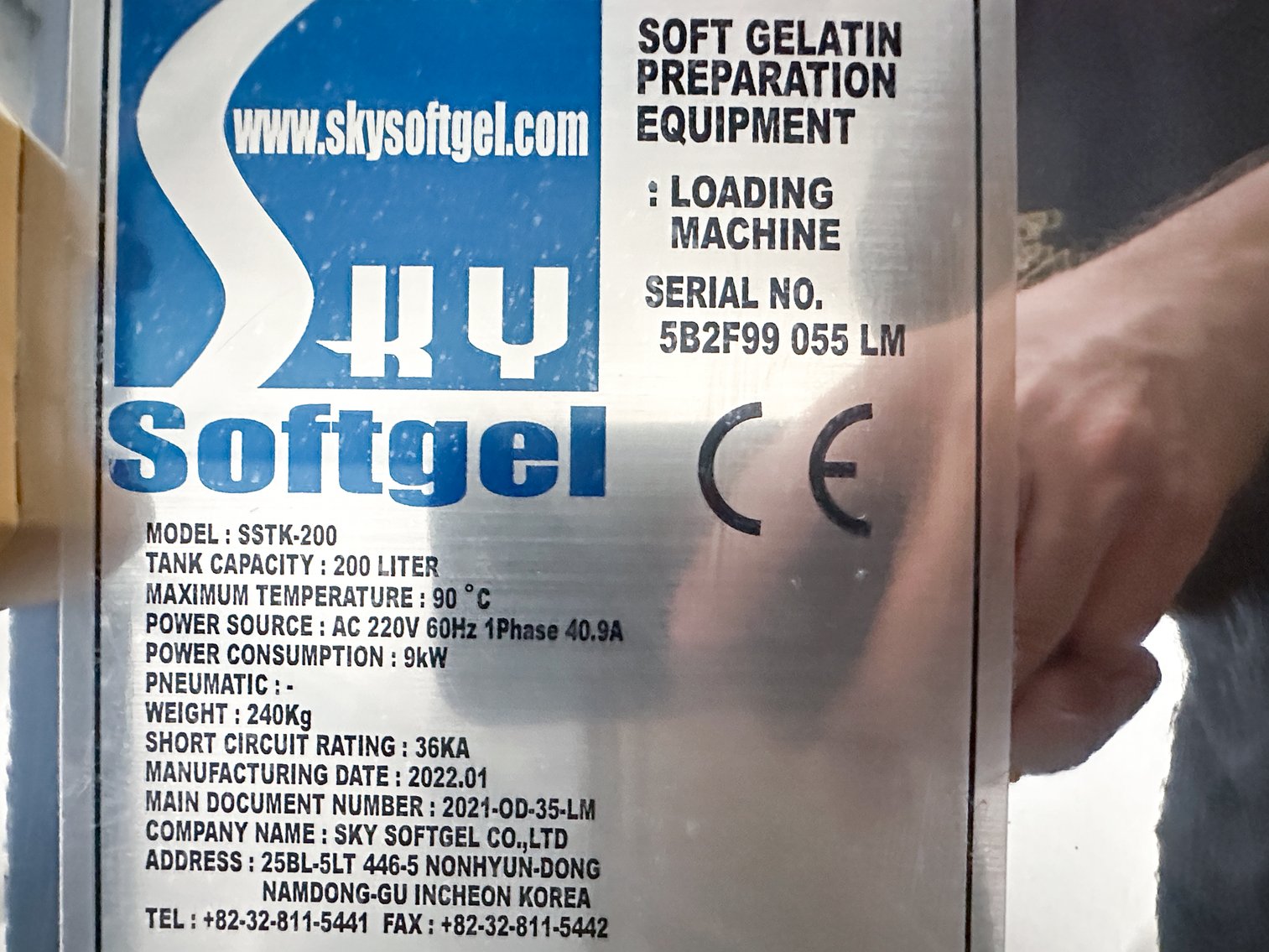

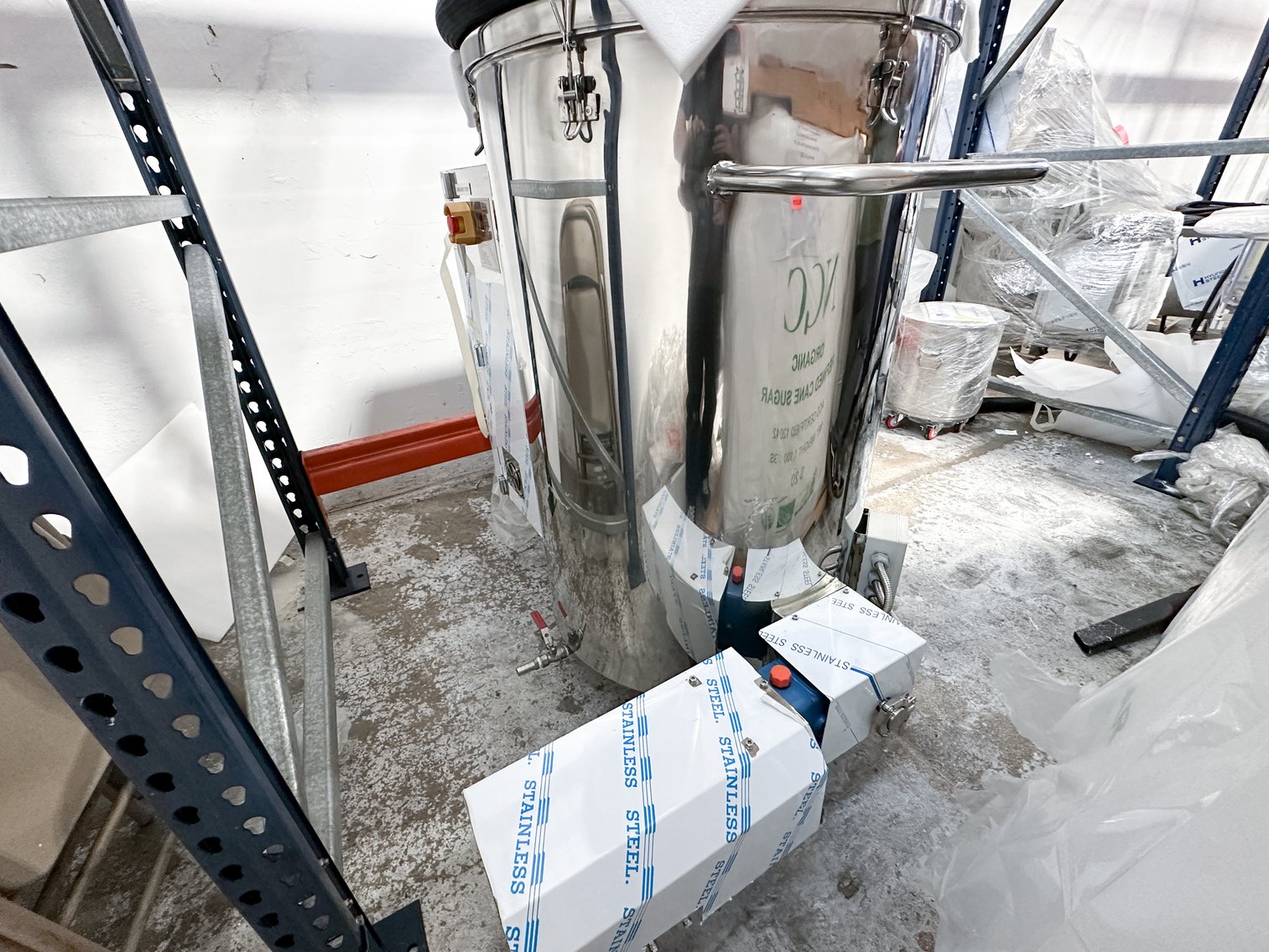

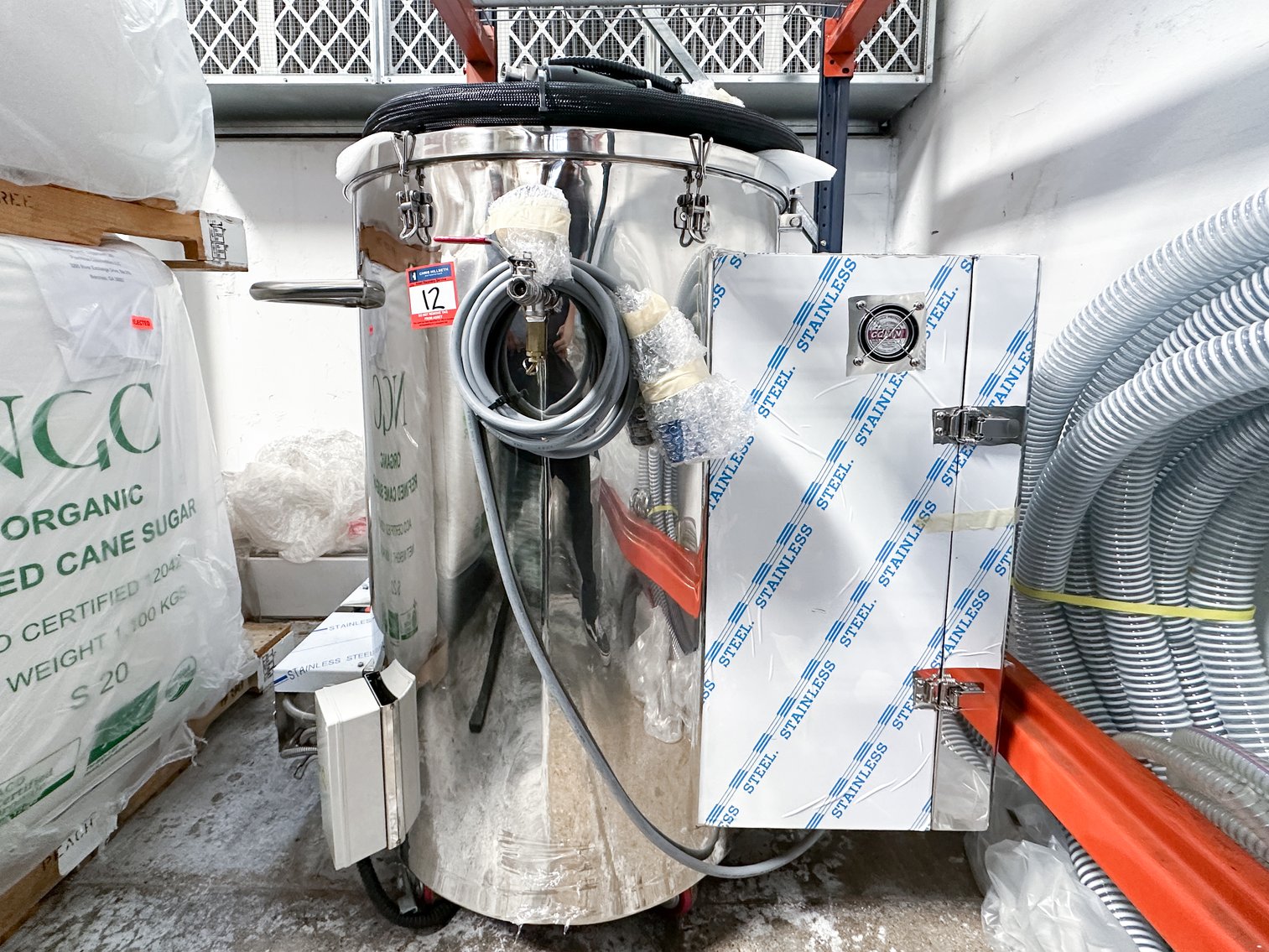

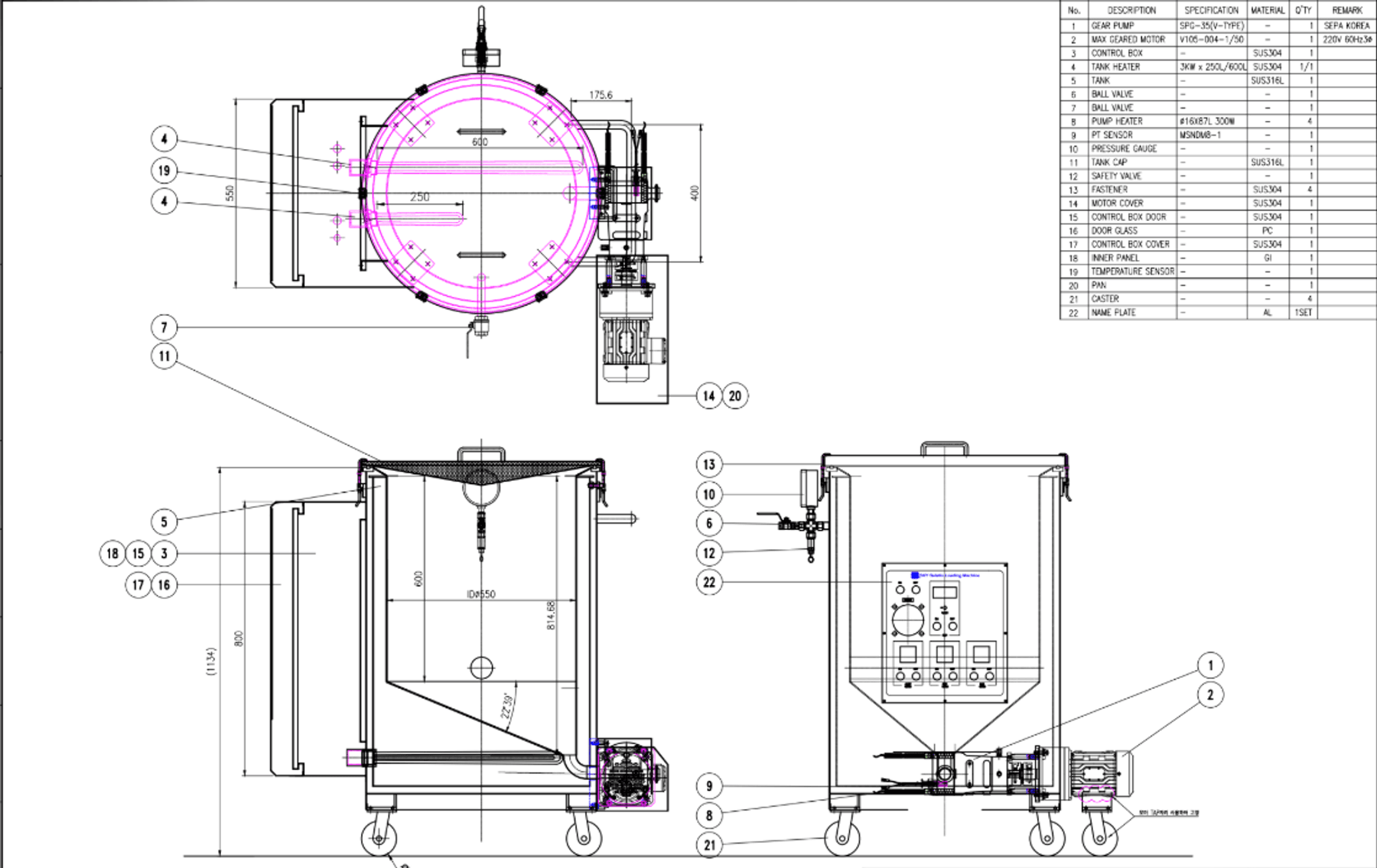

2- Soft Gelatin Preparation Equipment/ 200 Liter Kettles
Model: SSTK-200
Tank Capacity: 200L
Voltage: 220
Frequency: 60hz
Power: 9Kw
Weight: 240kg
SCR: 36KA
Mfg: 2022

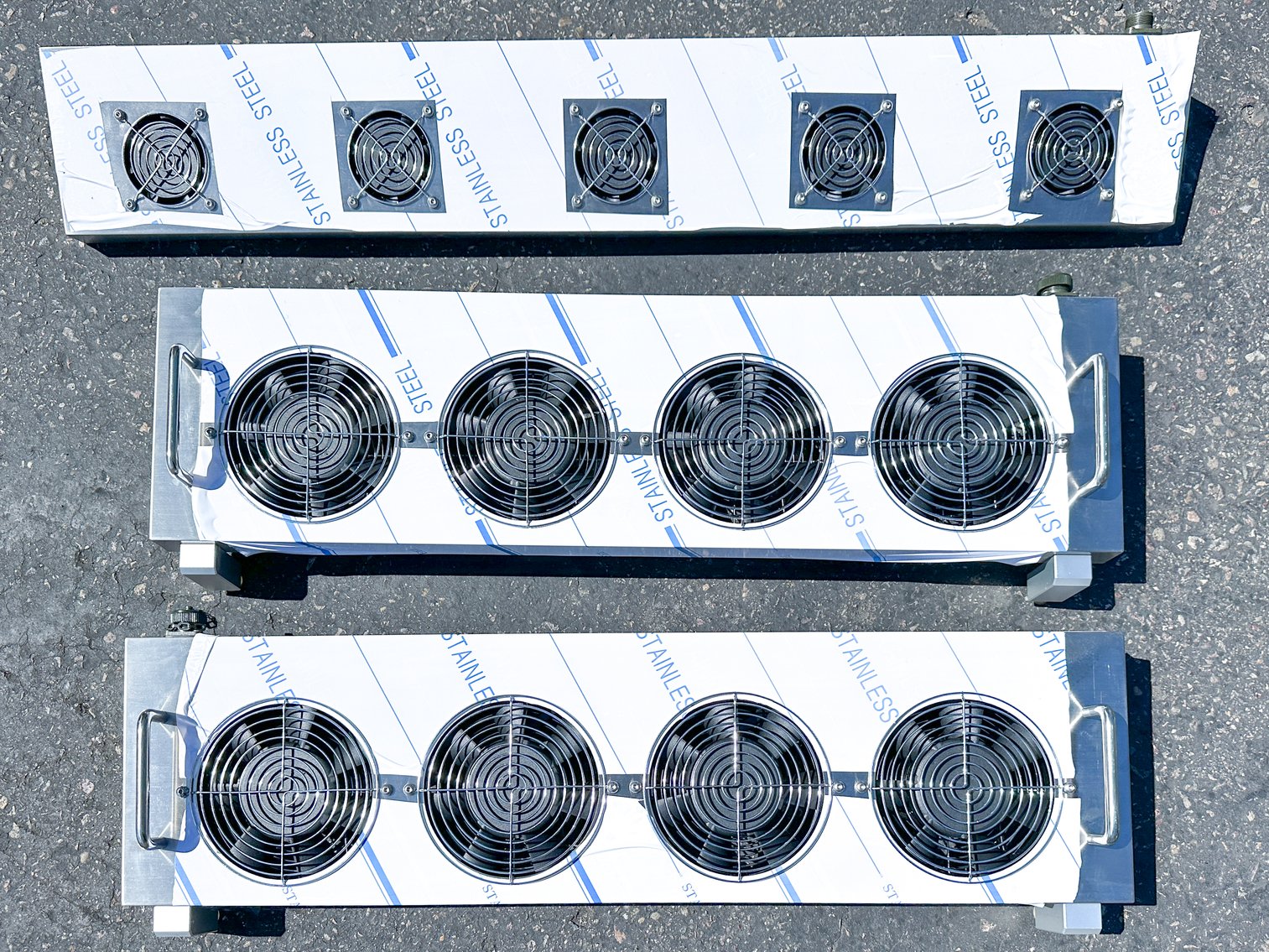

1- Capsule Cooling Conveyor
Stainless steel capsule cooling conveyor system manufactured by SKY Softgel, designed for efficient cooling and handling of softgel capsules post-encapsulation. This system utilizes multiple high-efficiency fan arrays to provide consistent airflow across product surfaces, promoting uniform cooling and improved product integrity.

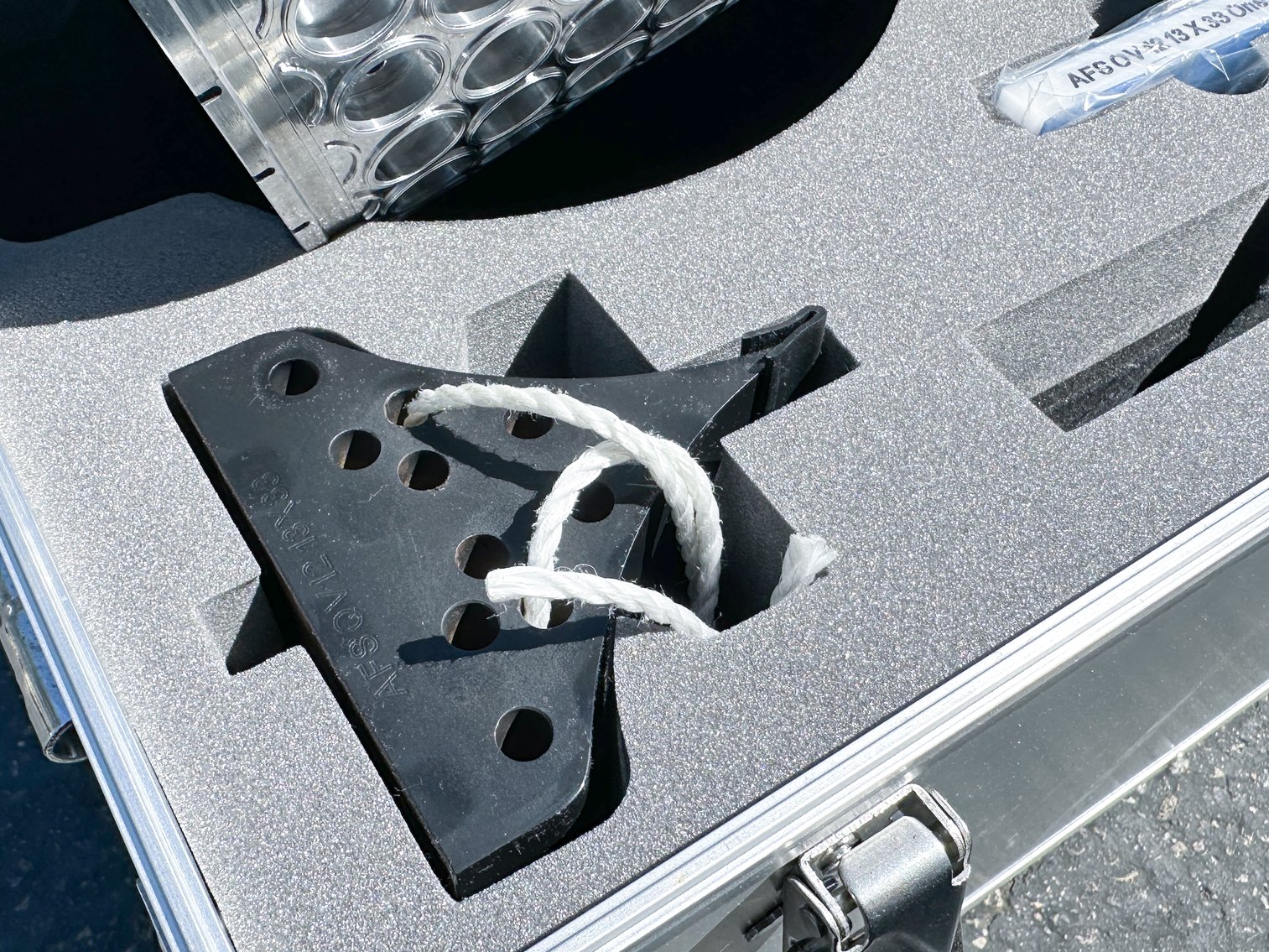

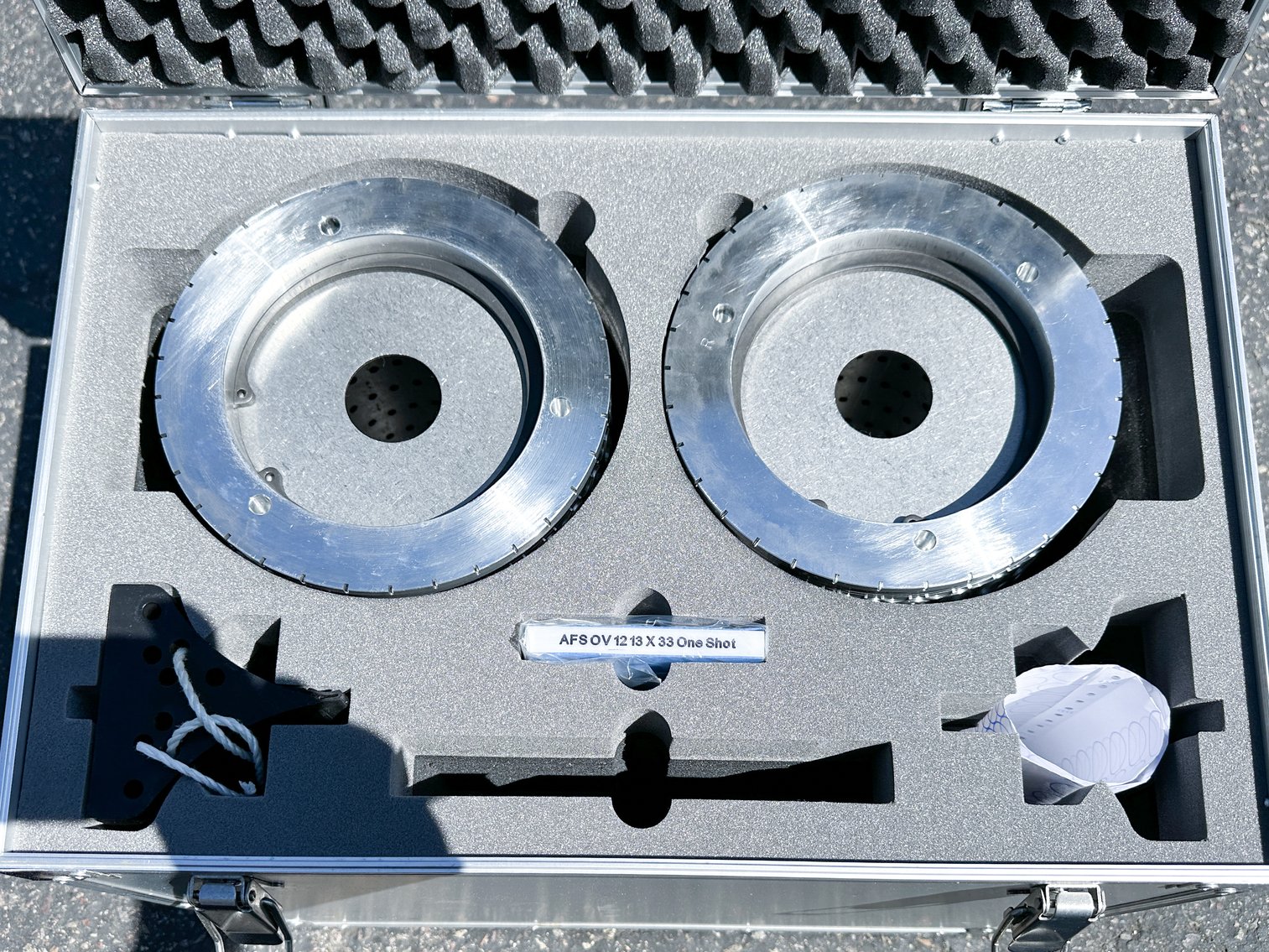

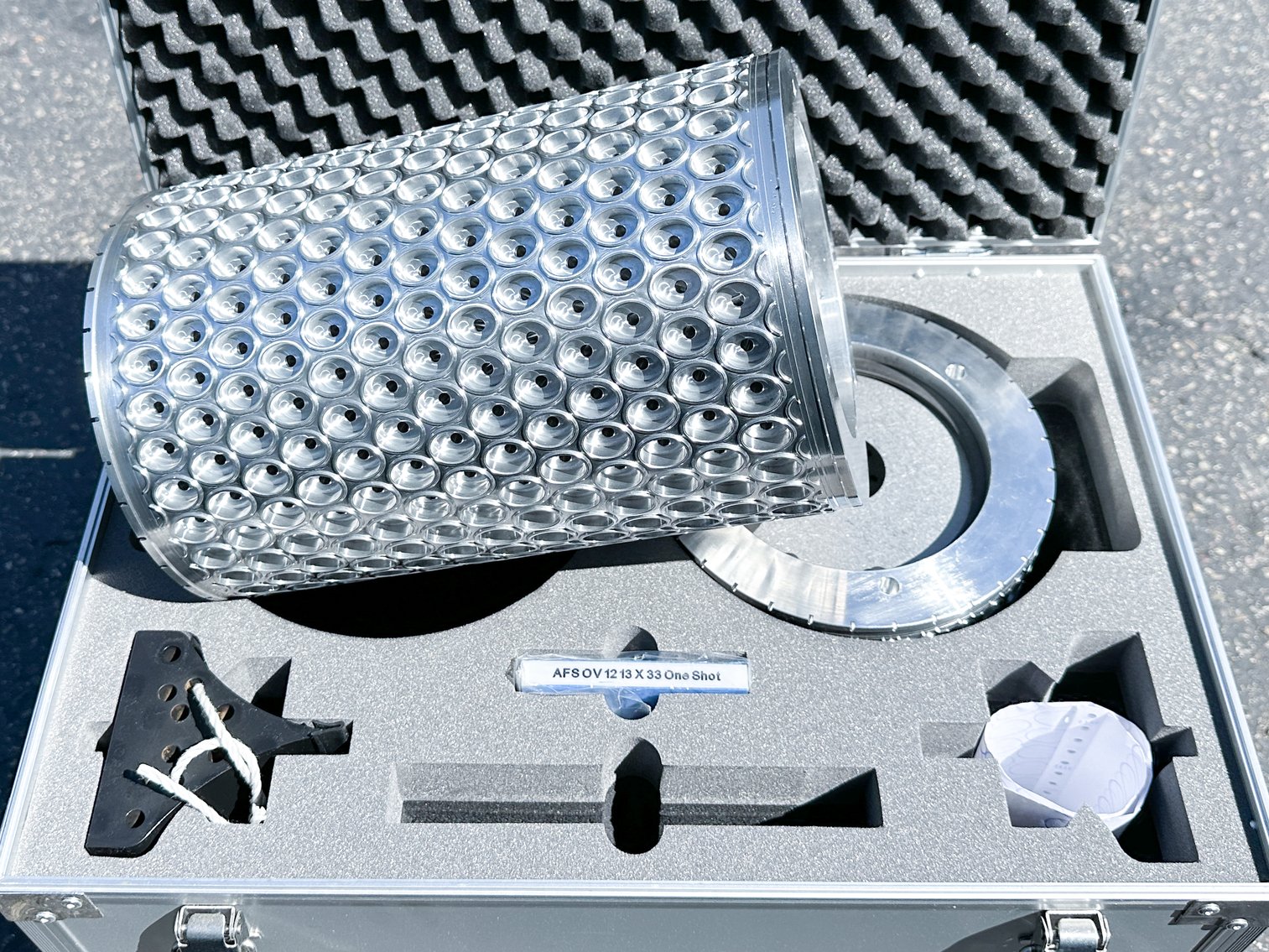

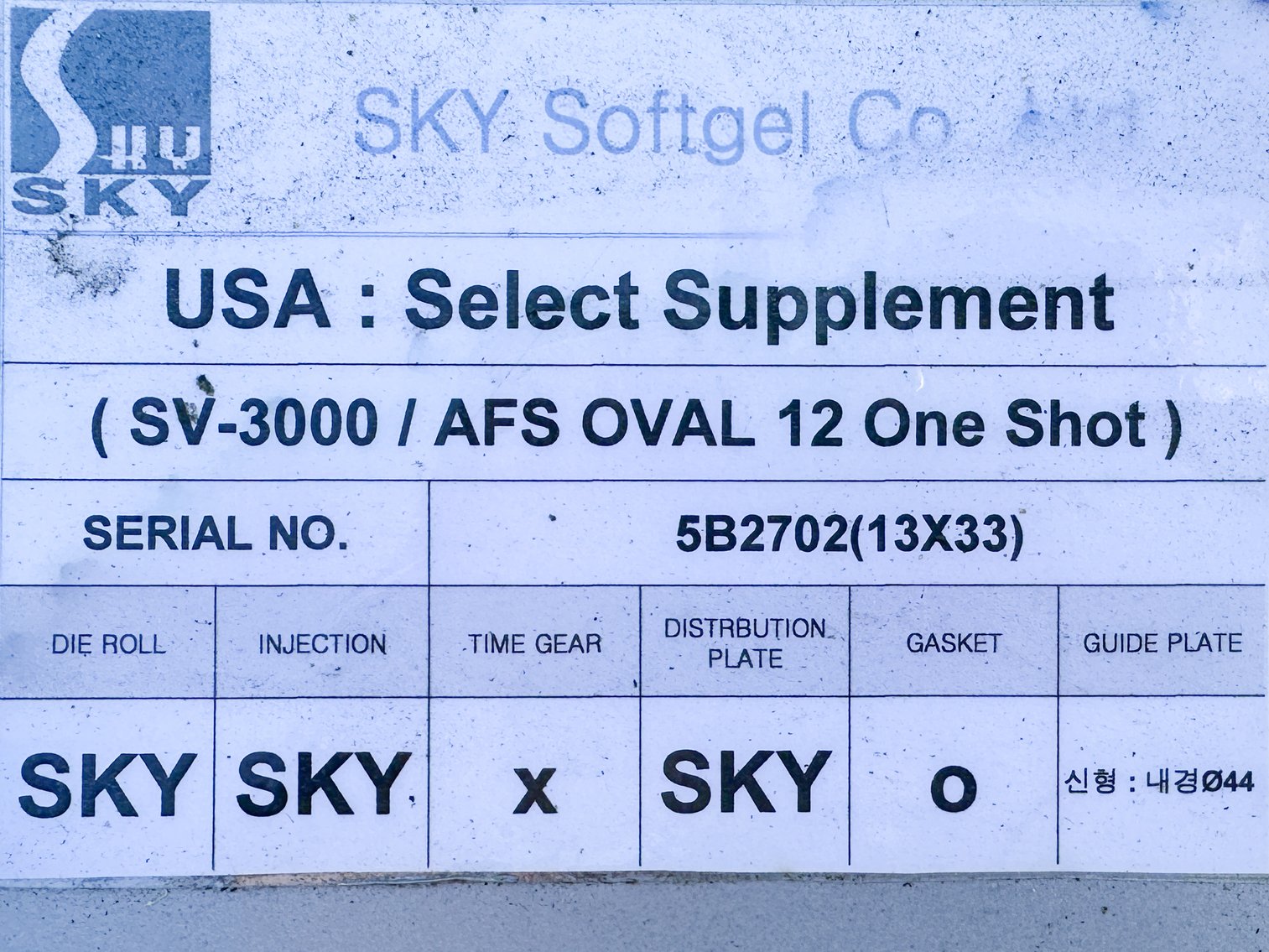

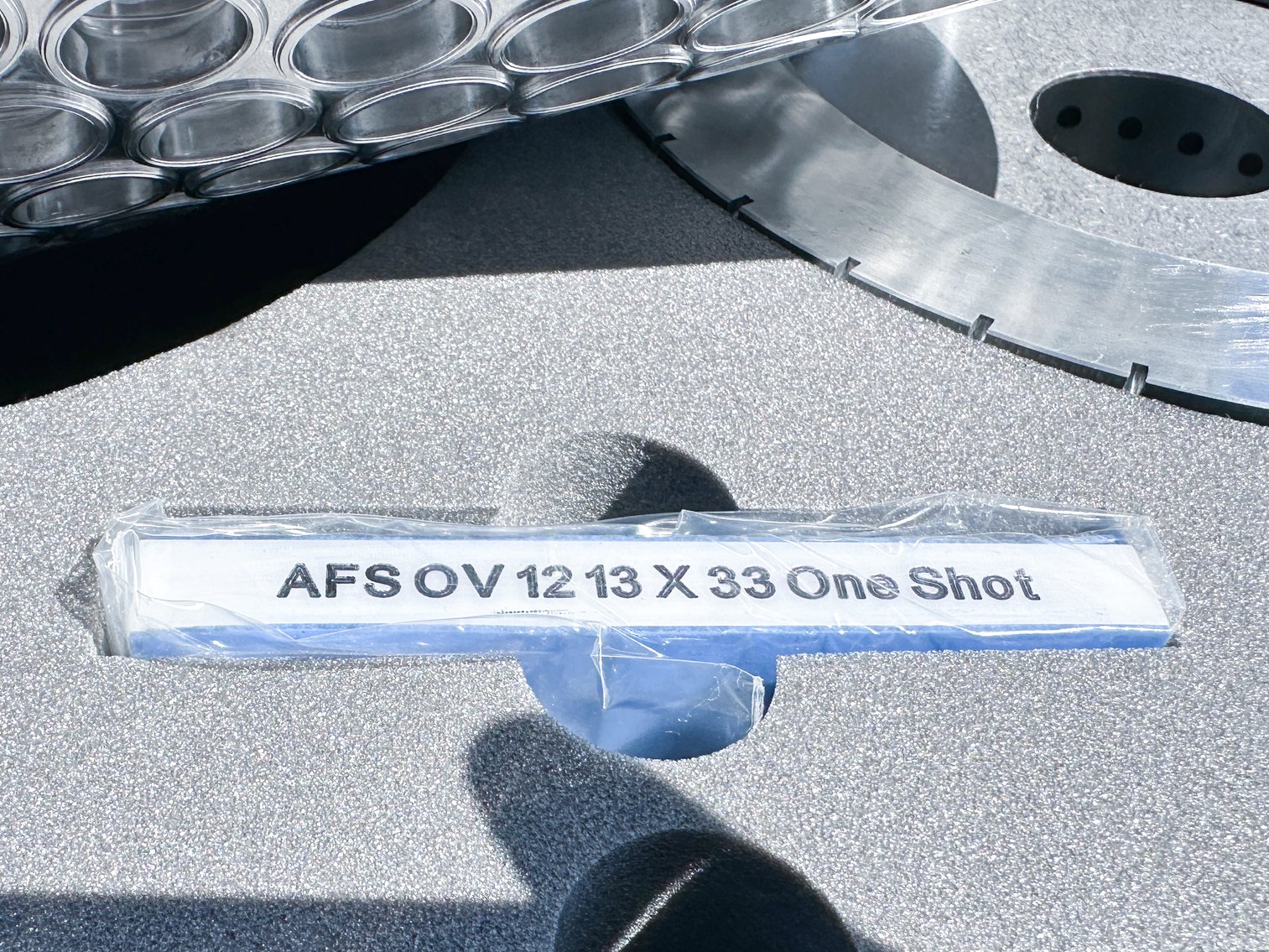

1- SV-3000/AFS oval 12 one shot)
Tooling
1- Air blower
Stainless steel air blower unit manufactured by SKY Softgel, designed for use in softgel production and related processing environments. This unit provides consistent airflow for drying, cooling, or material conveyance applications.

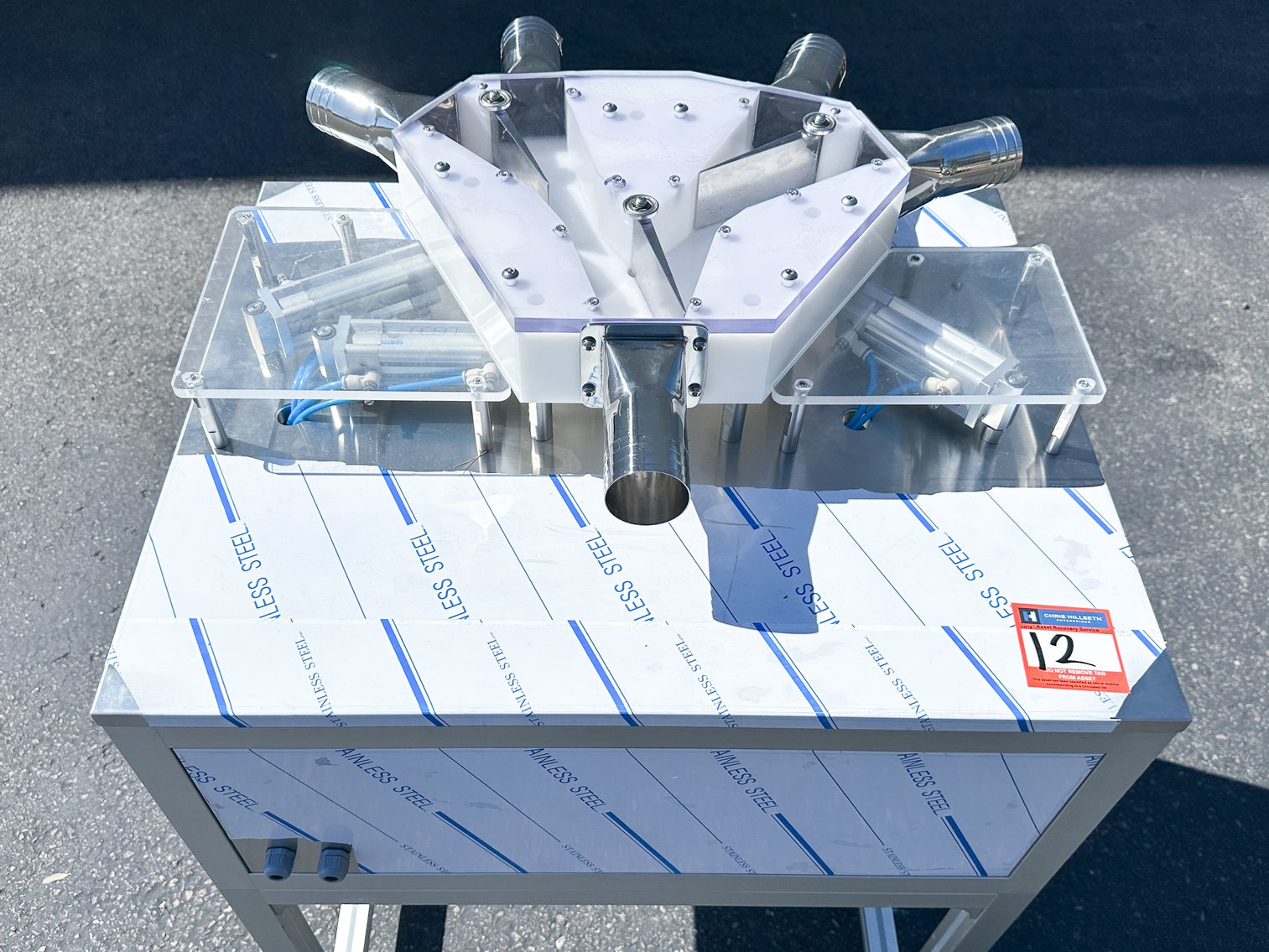

1- 4 way distributor to baskets
Stainless steel 4-way distribution system designed for use in softgel production lines, enabling efficient and even distribution of capsules to multiple downstream baskets, conveyors, or processing stations.

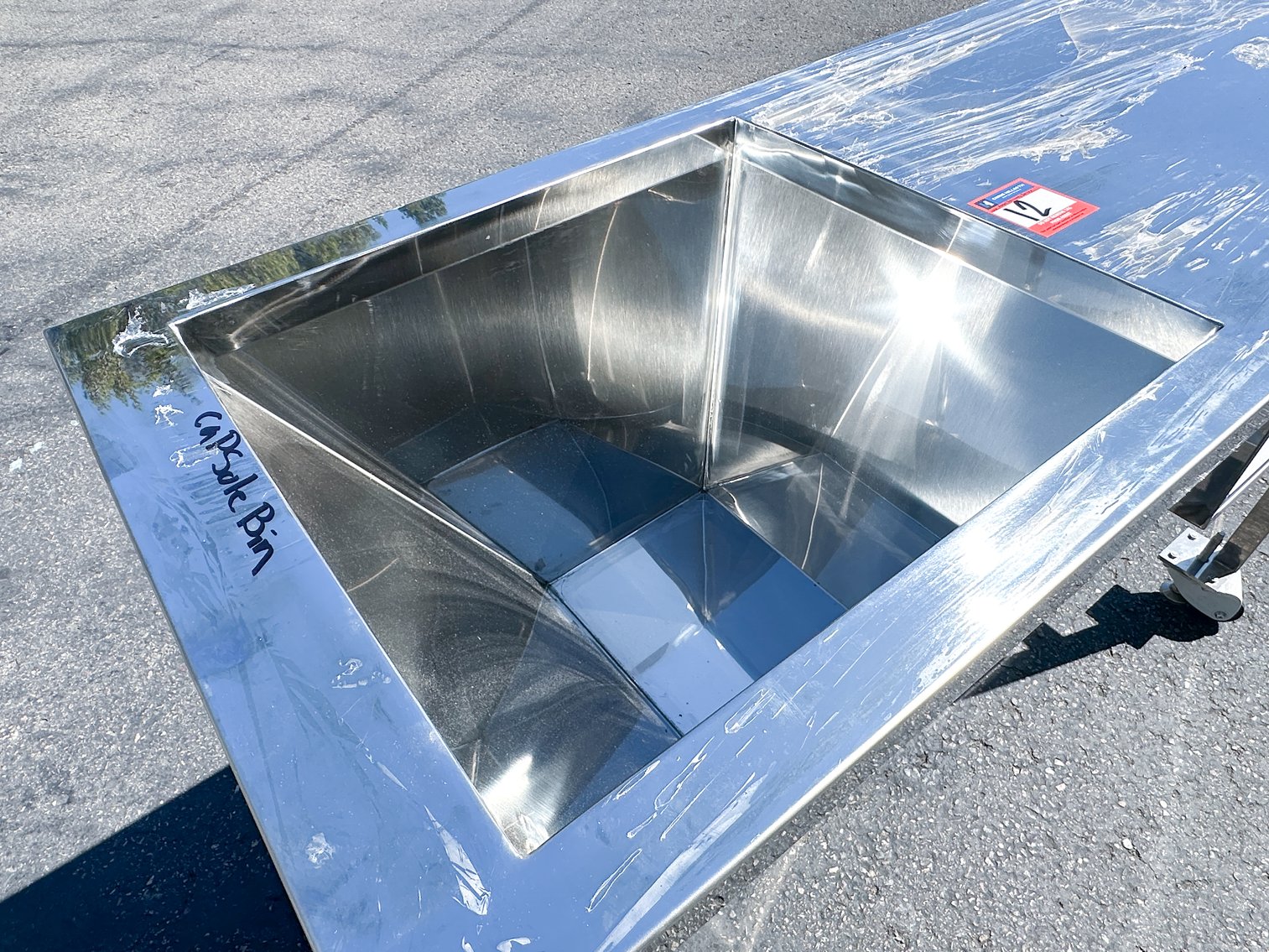

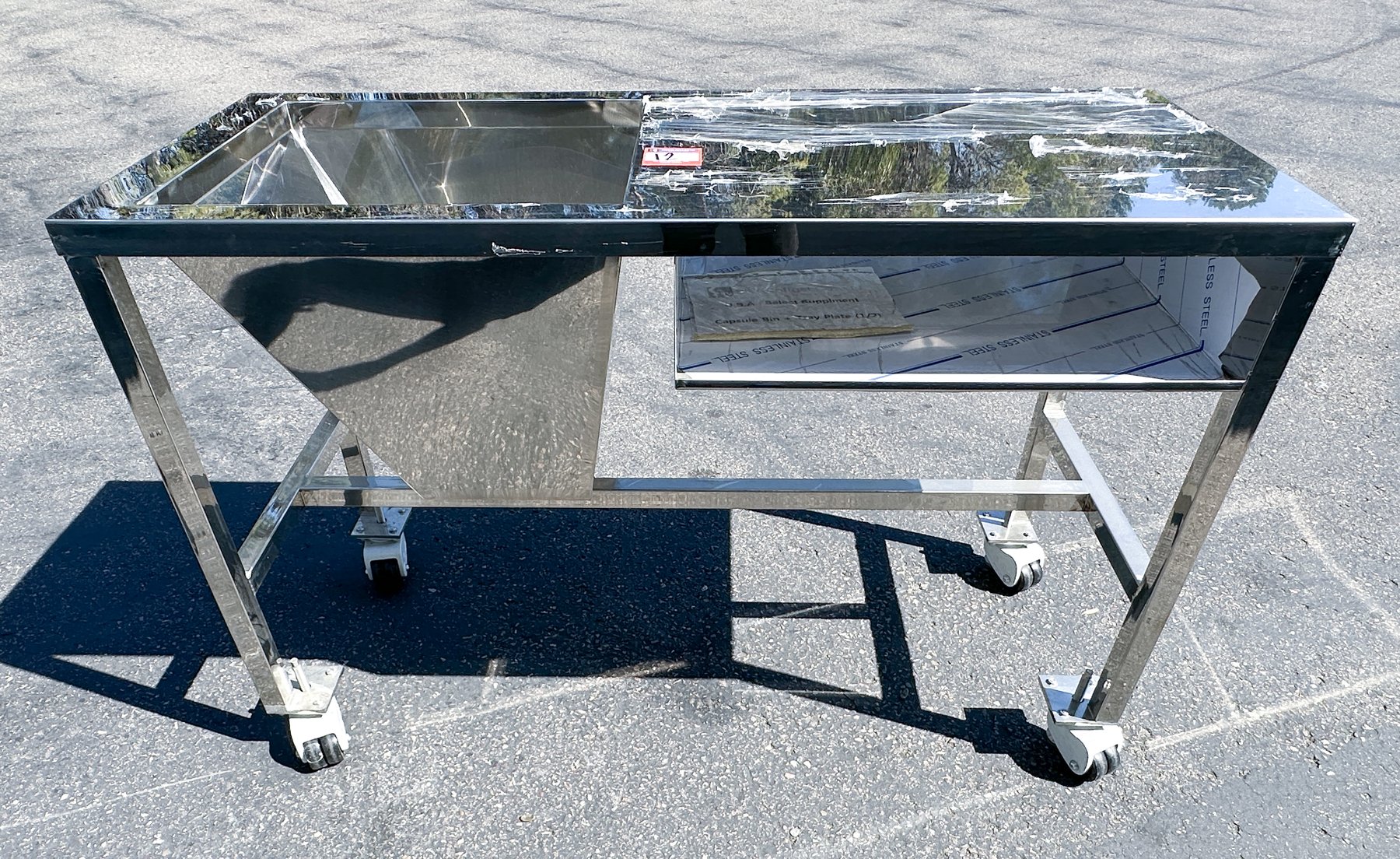

2- Capsule bin + Tray Plate

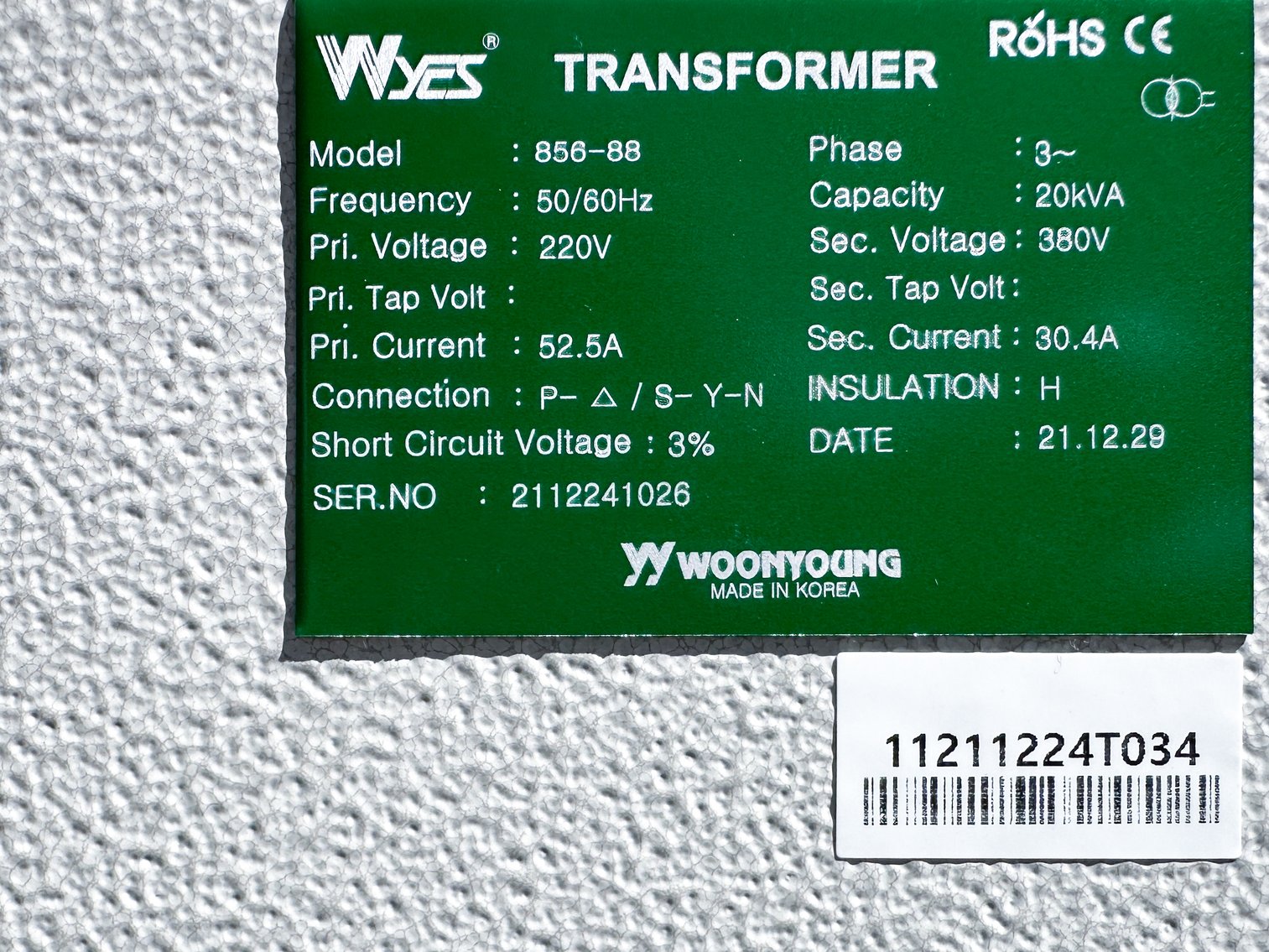

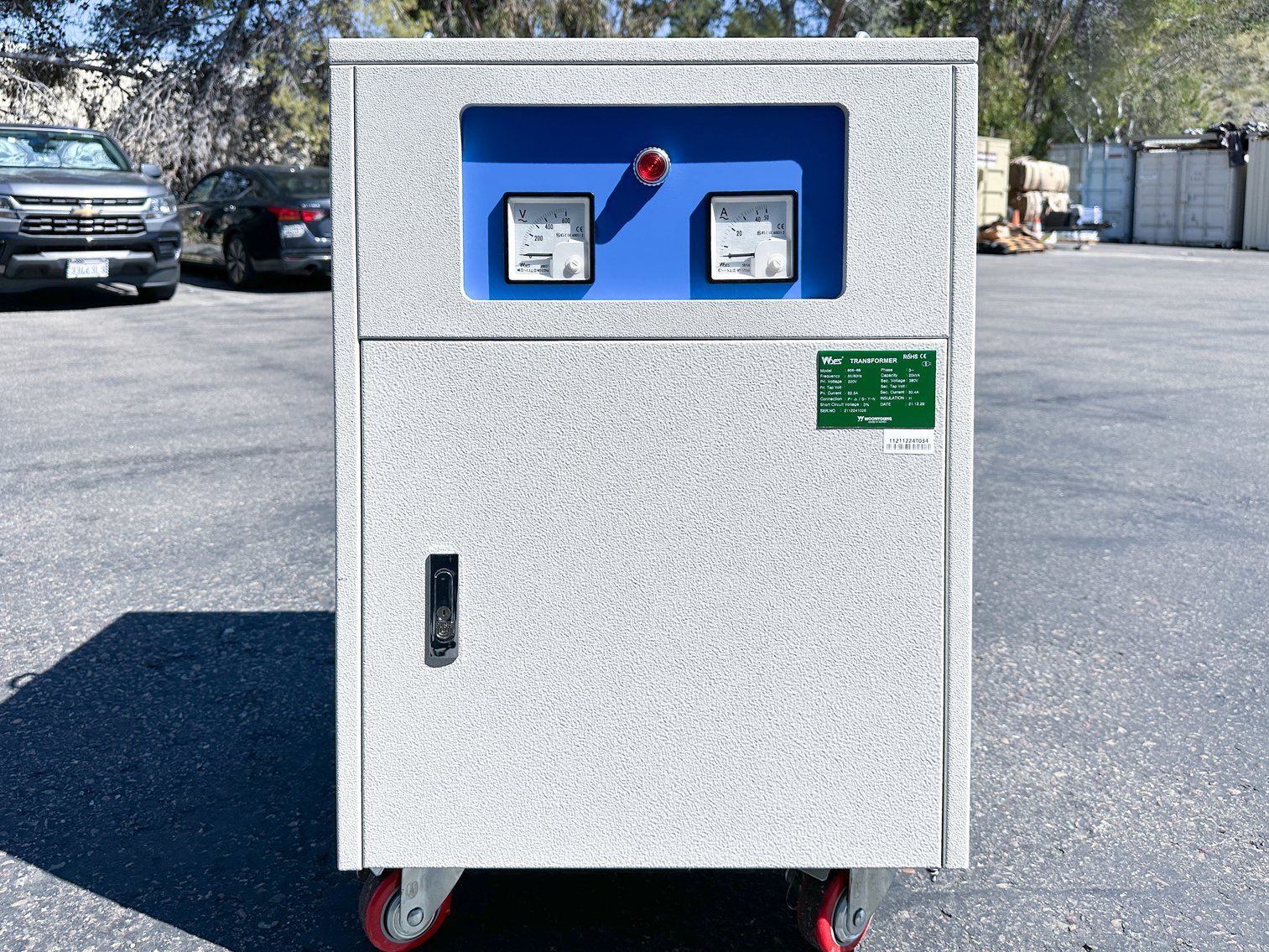

1- Wyes Transformer
Model: 856-88
Sn: 2112241026
Voltage: 220v
Capacity: 20kVA

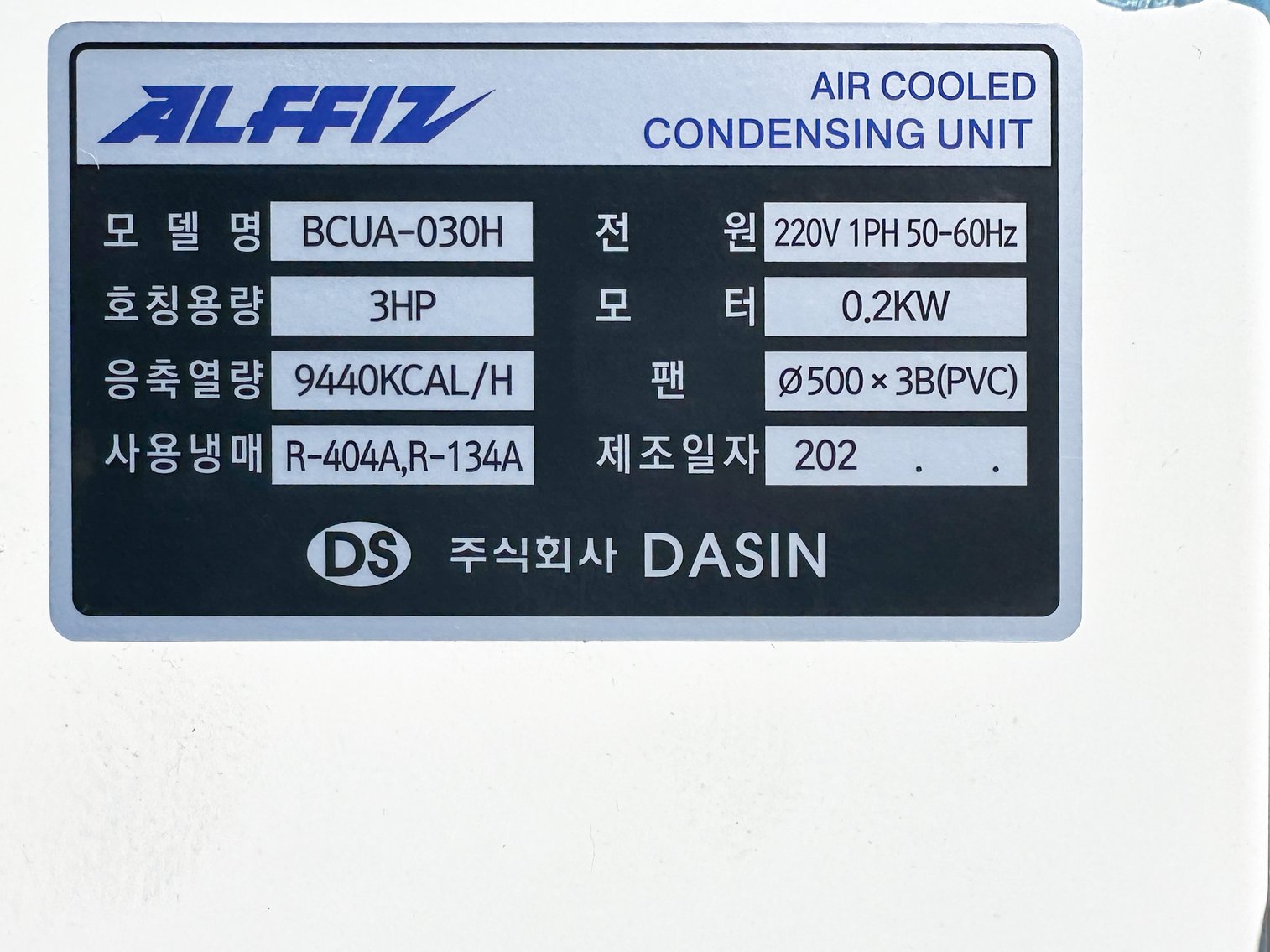

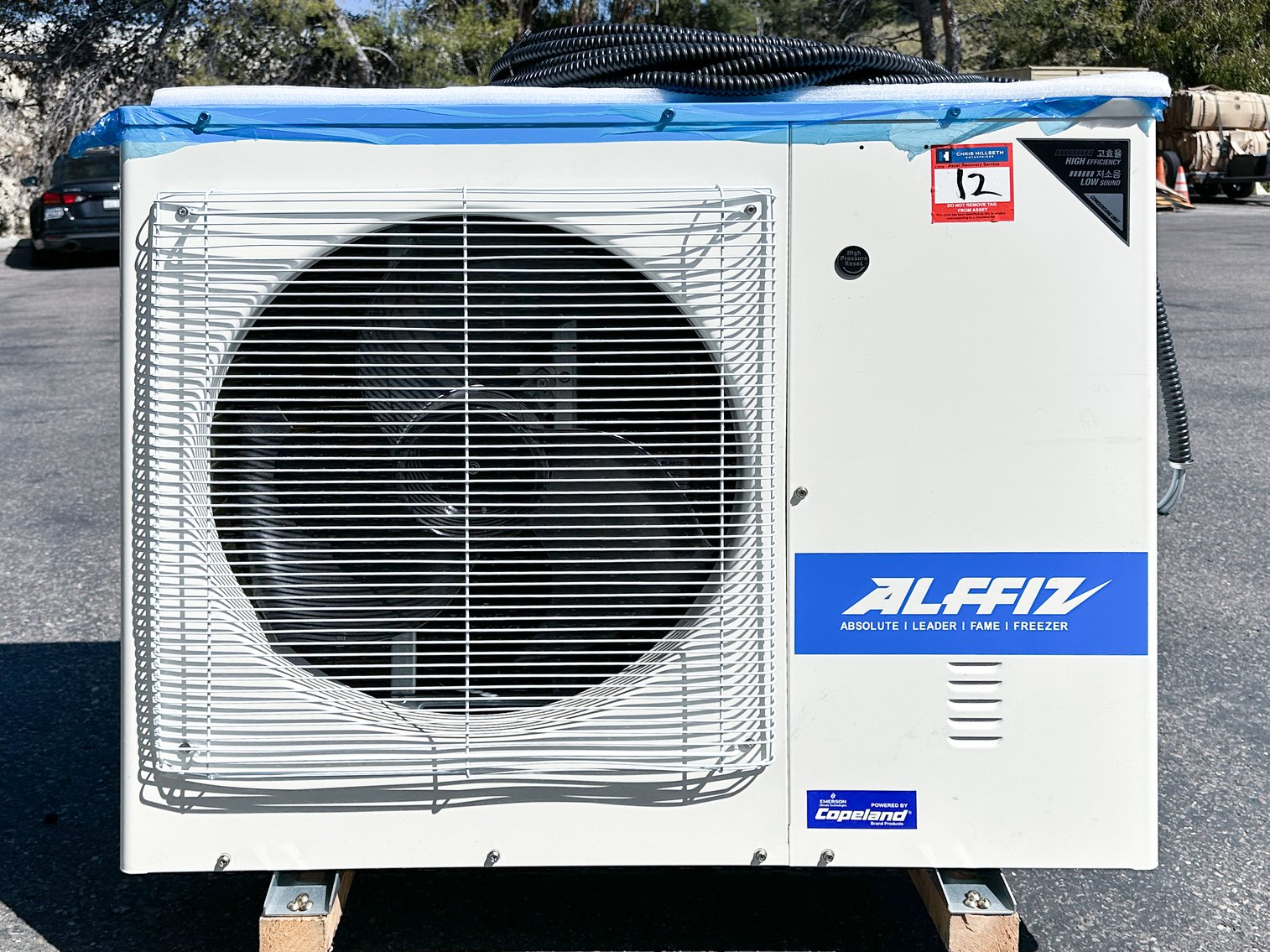

1- ALFFIZ Air Cooled Condensing Unit
Model: BCUA-030H
Voltage: 220
Frequency: 50-60hz
Phase: 1
9440KCAL/H
Refrigerant: R-404A,R-134A

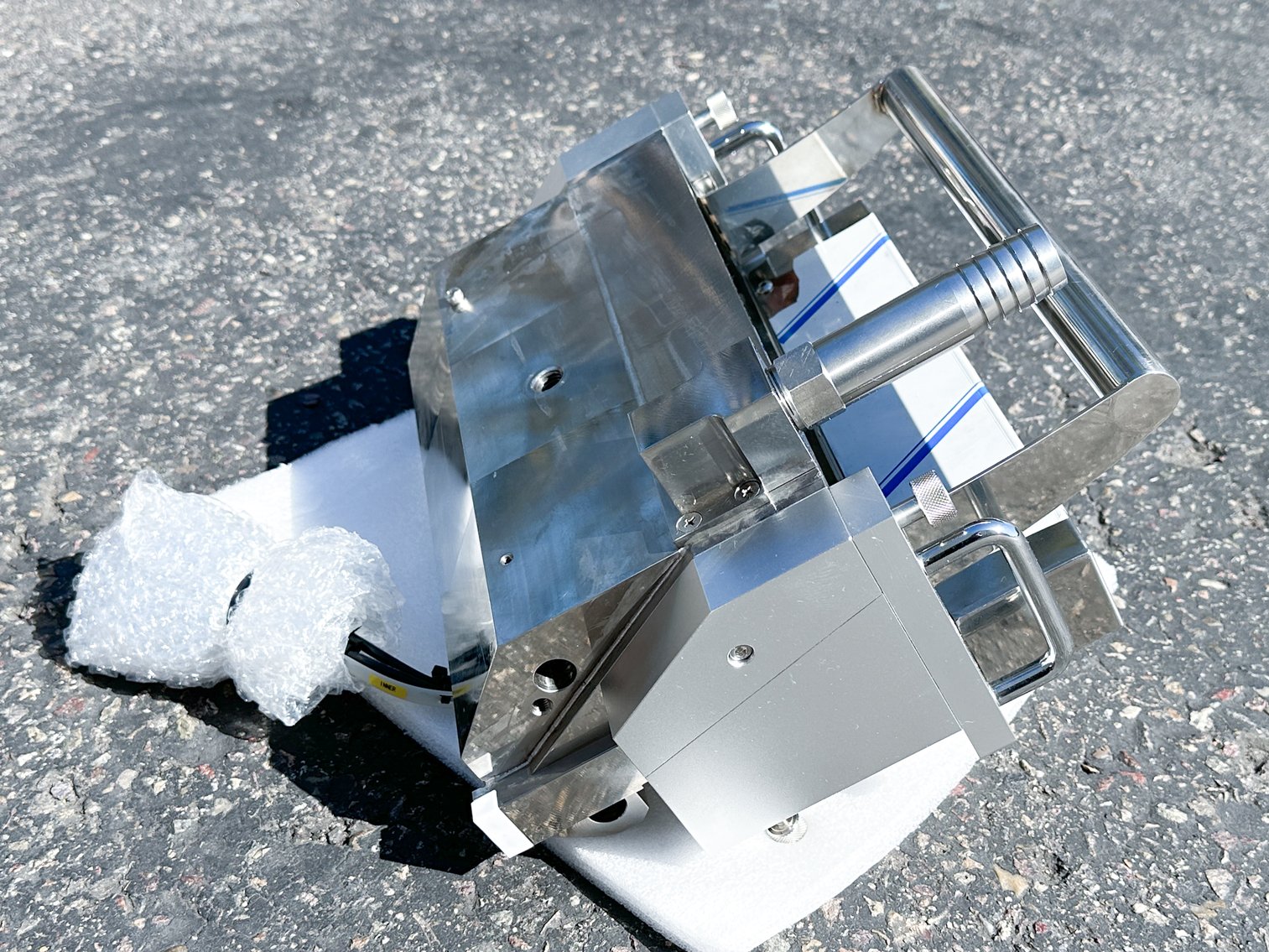

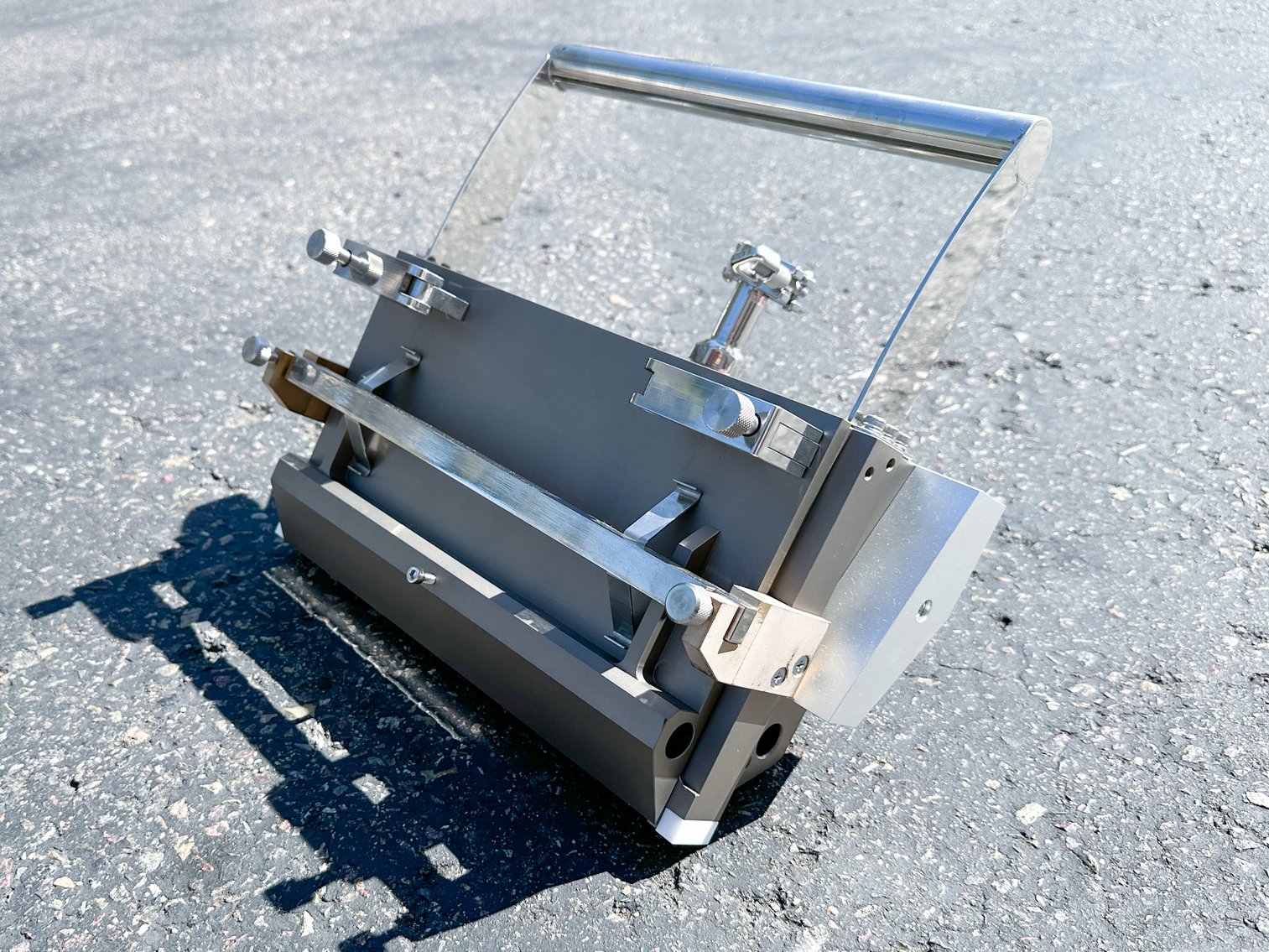

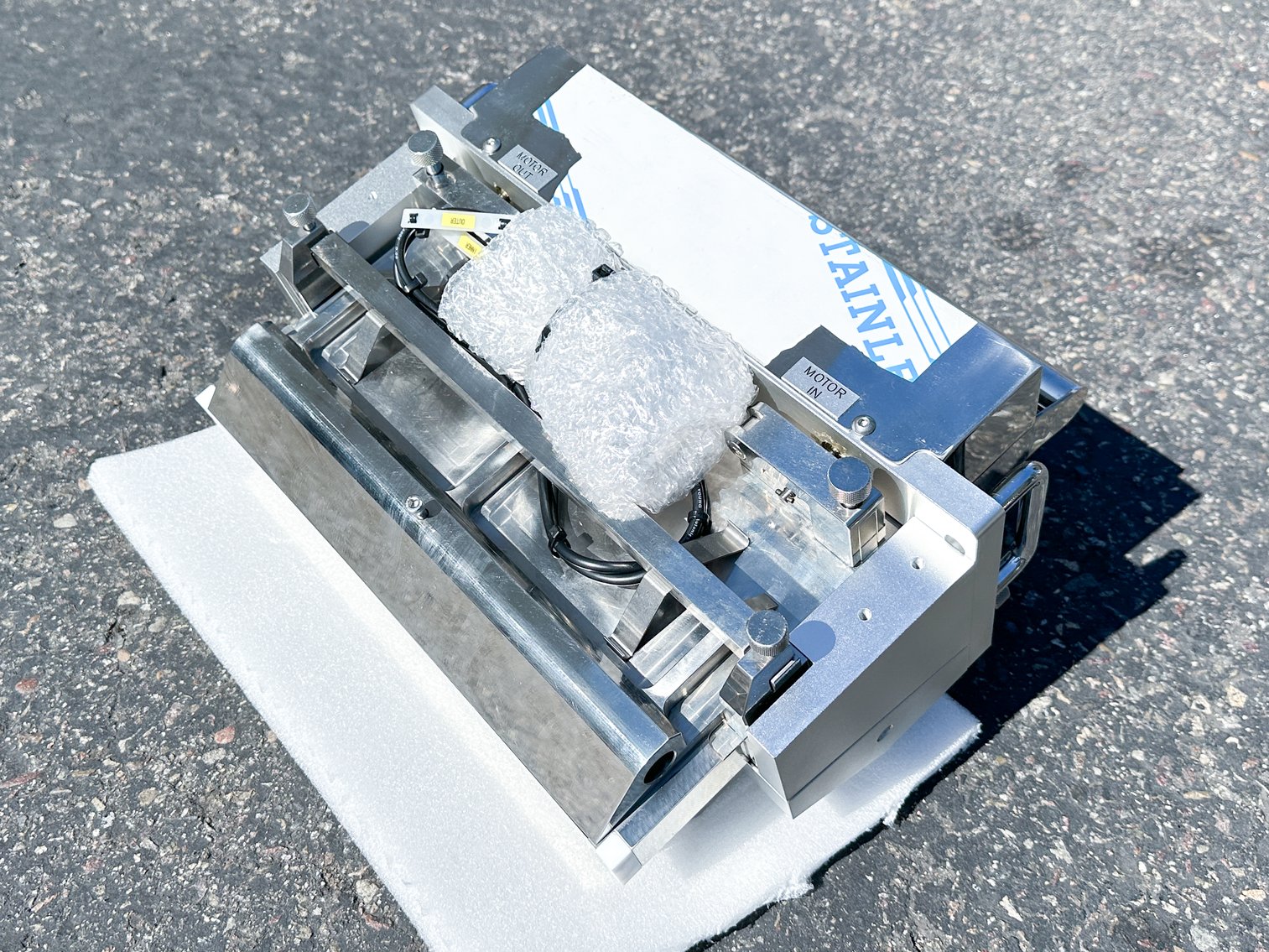

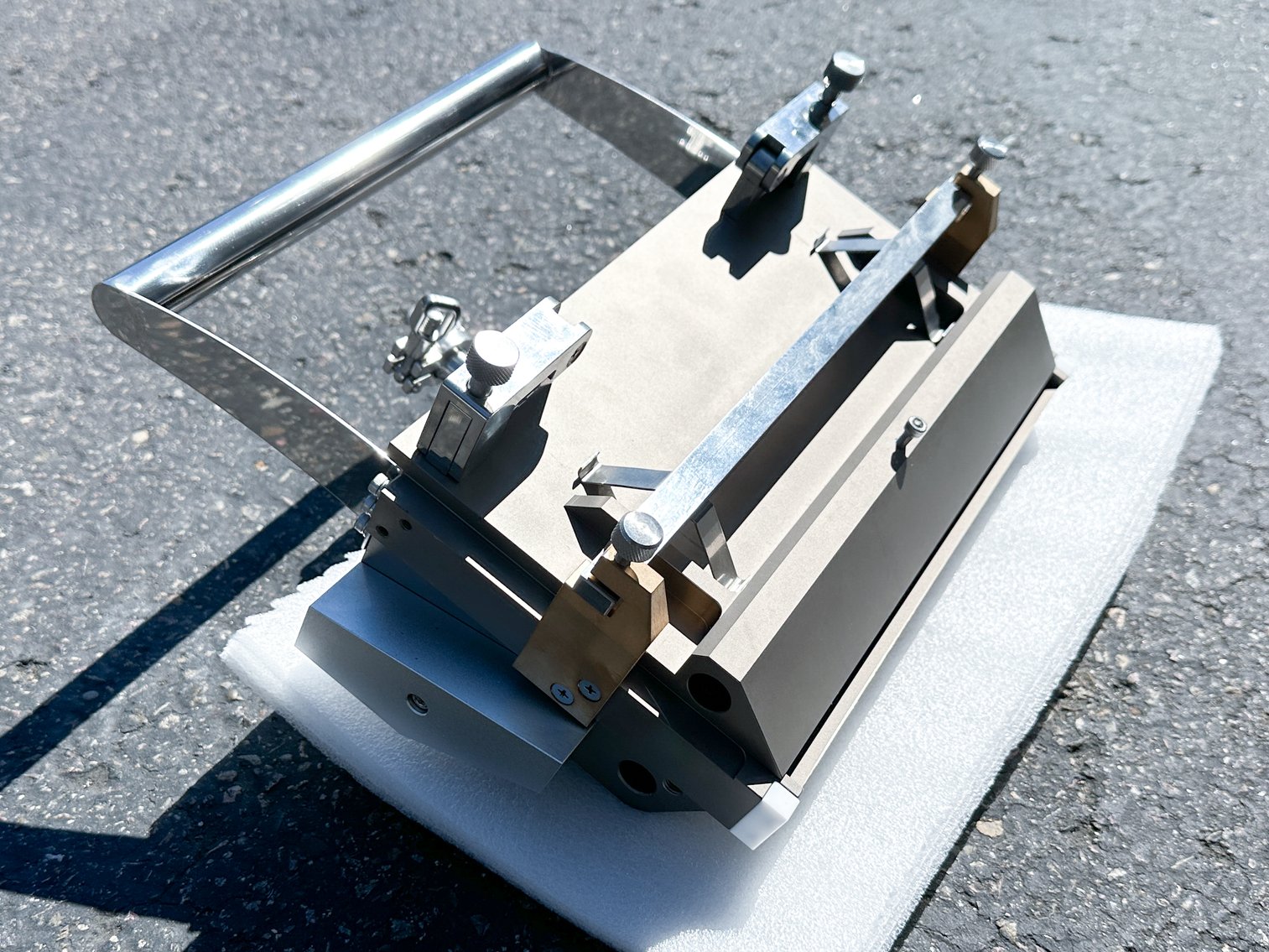

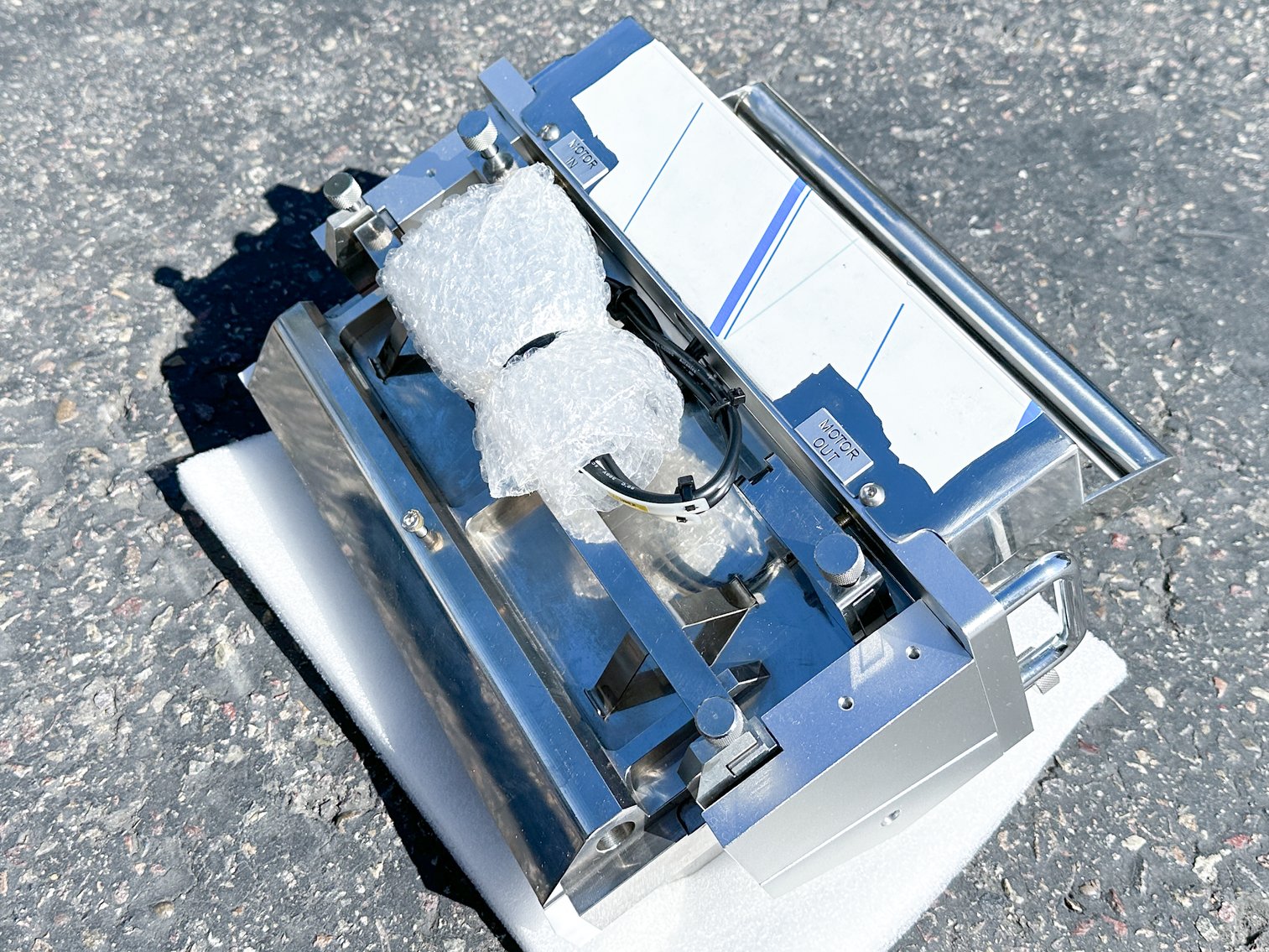

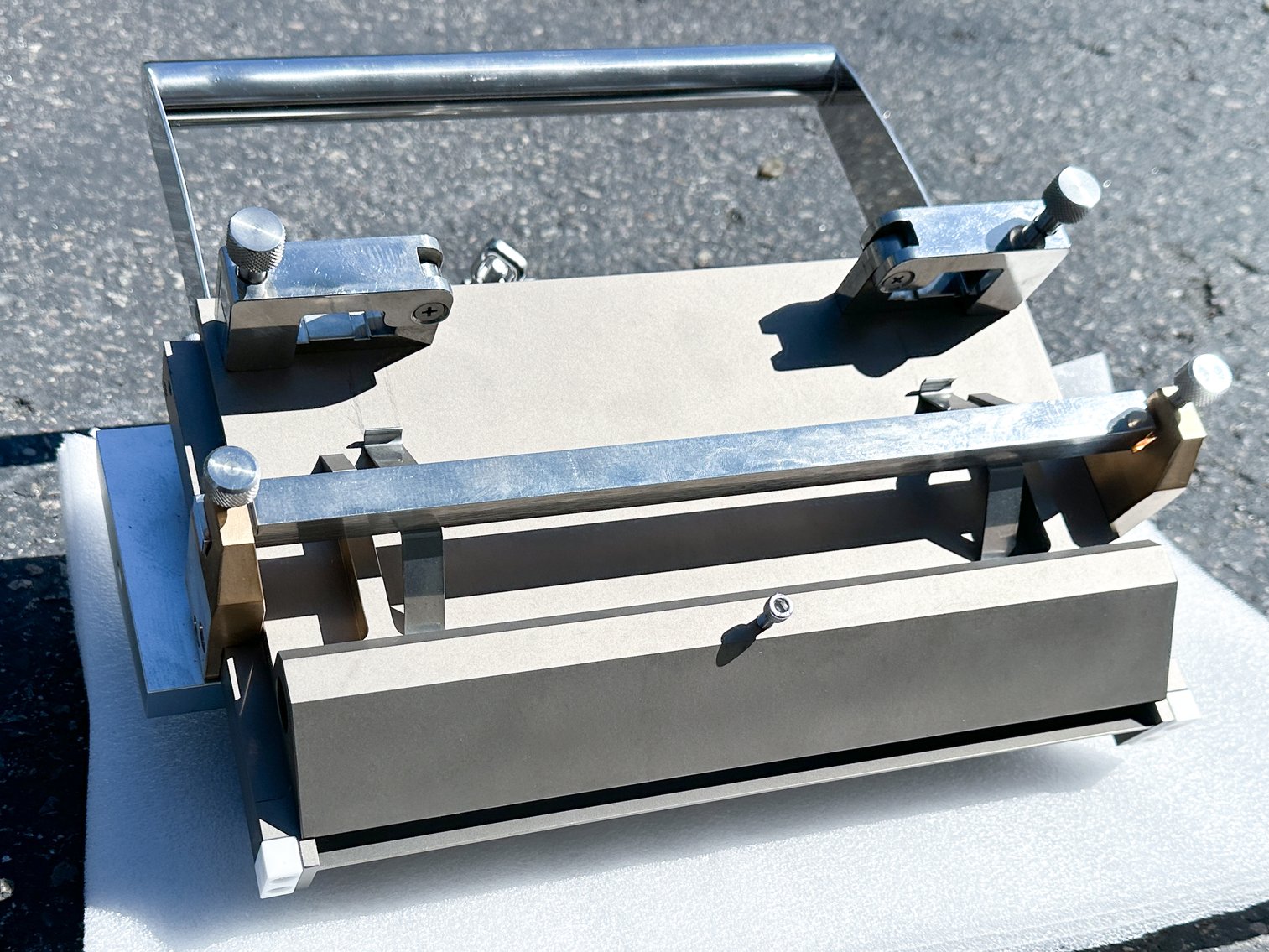

1- AFS Spreader Boxes (L&R)
Set of left and right spreader boxes designed for use on a softgel encapsulation machine, responsible for forming and controlling the gelatin ribbons prior to encapsulation.
These precision components distribute molten gelatin into a uniform, thin ribbon across the spreader surface, which is then fed into the die rolls for capsule formation. Each unit is independently adjustable, allowing operators to control ribbon thickness, width, and consistency—critical for proper sealing, fill accuracy, and overall capsule quality.
Constructed from machined metal with stainless steel contact surfaces, the spreader boxes feature fine adjustment mechanisms and mounting hardware for accurate alignment on the encapsulation machine.

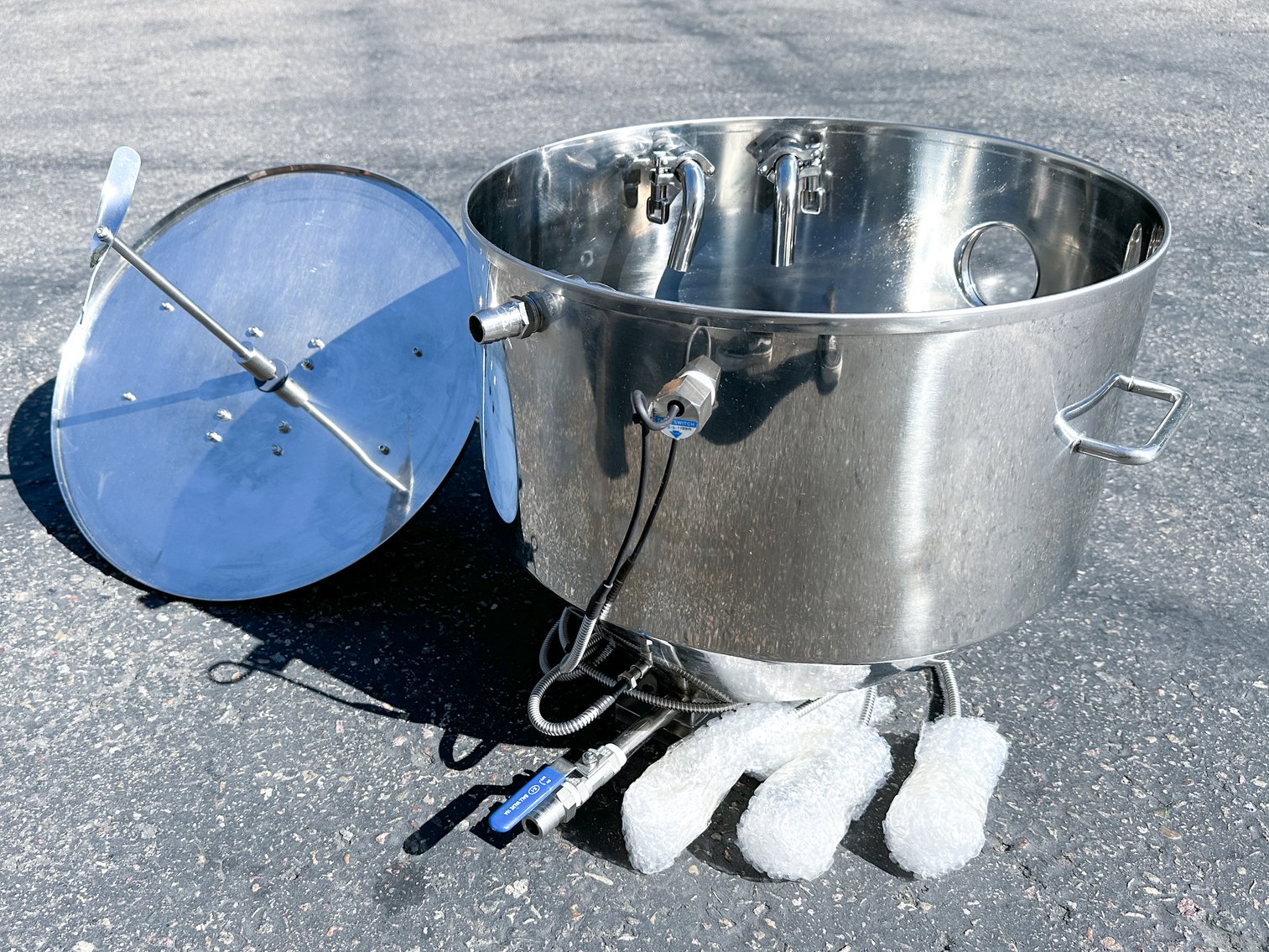

1- Hopper
Sanitary stainless steel product hopper designed for use on softgel encapsulation machines, used to hold and feed gelatin or fill material during production. This unit mounts directly to the top of an encapsulation system, providing a controlled supply of product to the die rolls.
Constructed with a polished stainless steel vessel, the hopper features multiple sanitary ports, bottom discharge, and integrated connections for temperature control. The included lid assembly is equipped with electrical components, for heating and/or agitation, helping maintain proper viscosity and flow of gelatin or fill material throughout the encapsulation process.

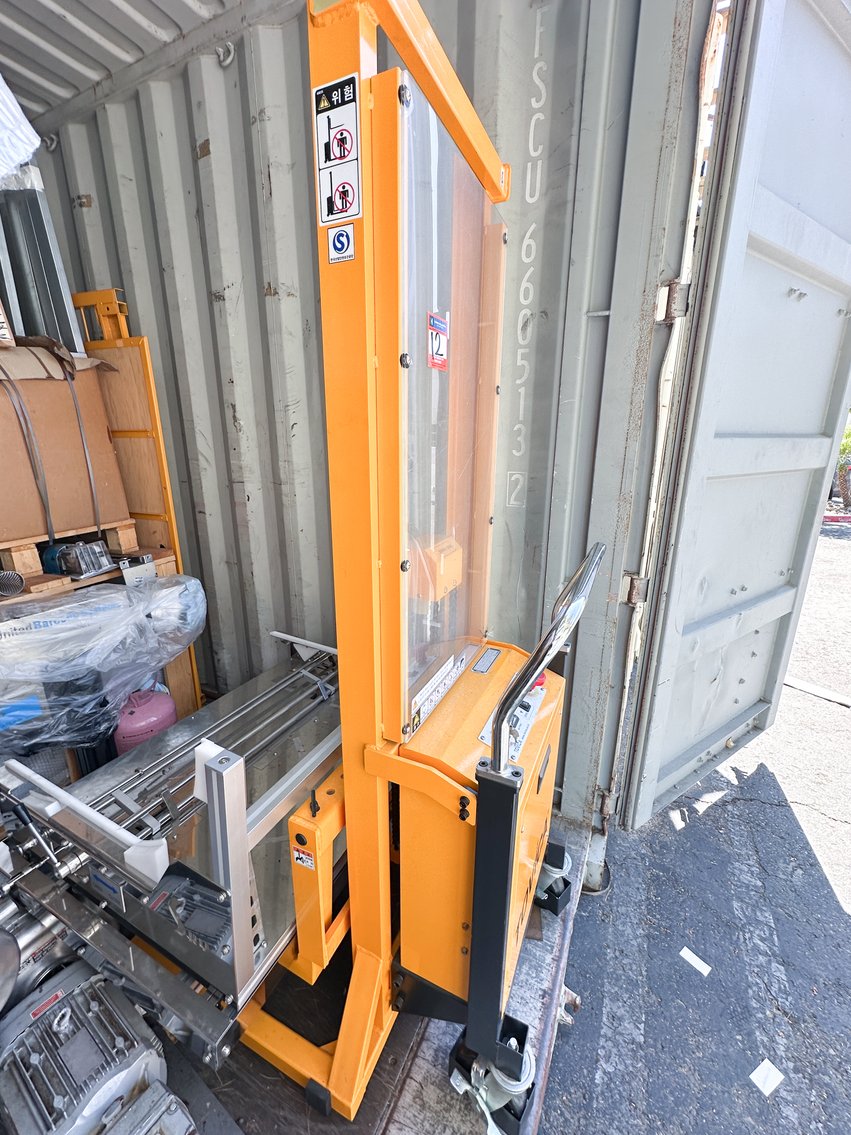

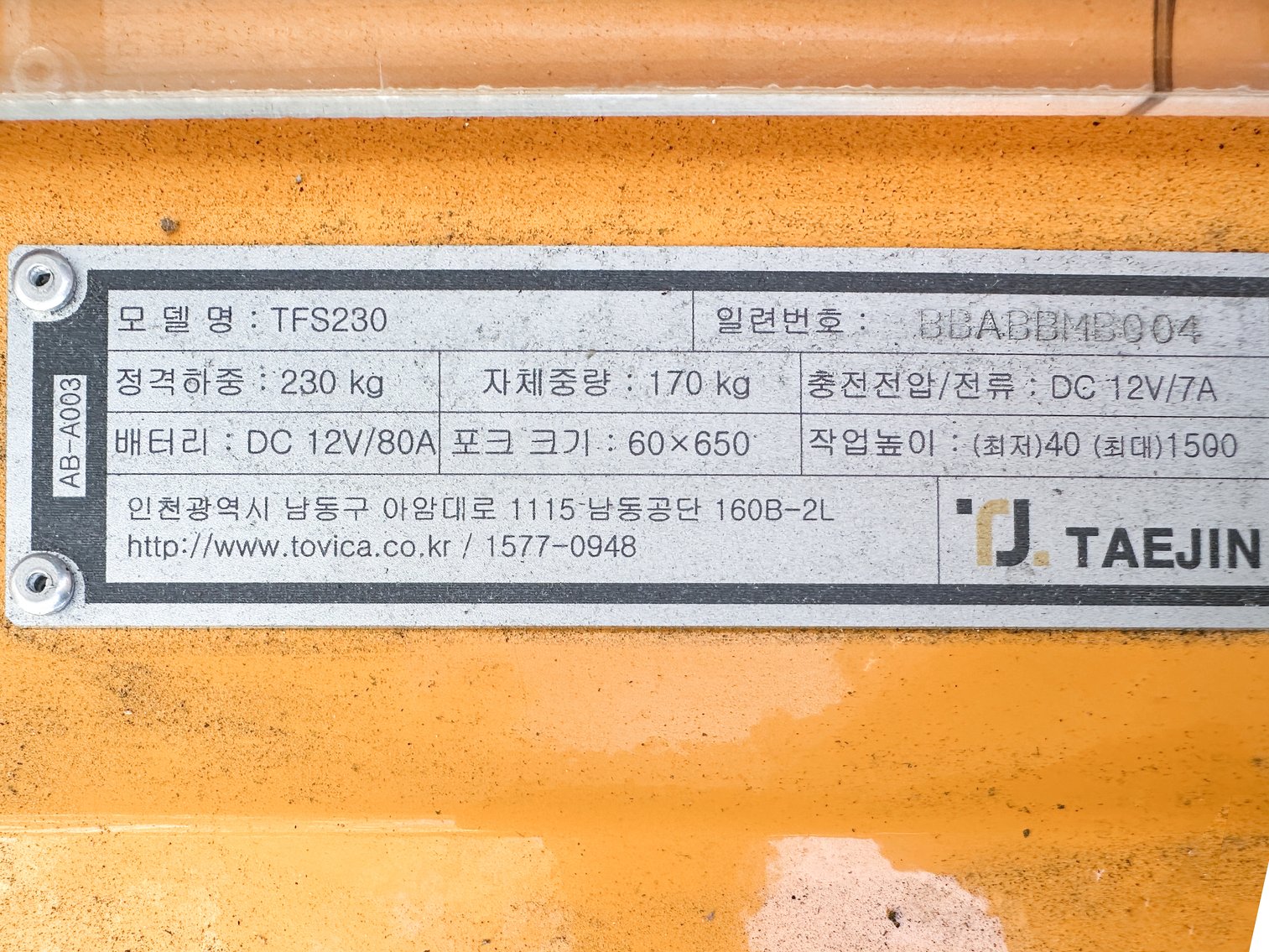

1- Auto Basket lift (Tovica)
Model: TFS230
Sn: BBABBMB004
Voltage: 12v/80A
Skidding and Load out charges: There will be loading and skidding charges added to your purchase at market rates for your convenience.
Location: San Marcos, CA
